Commissioning

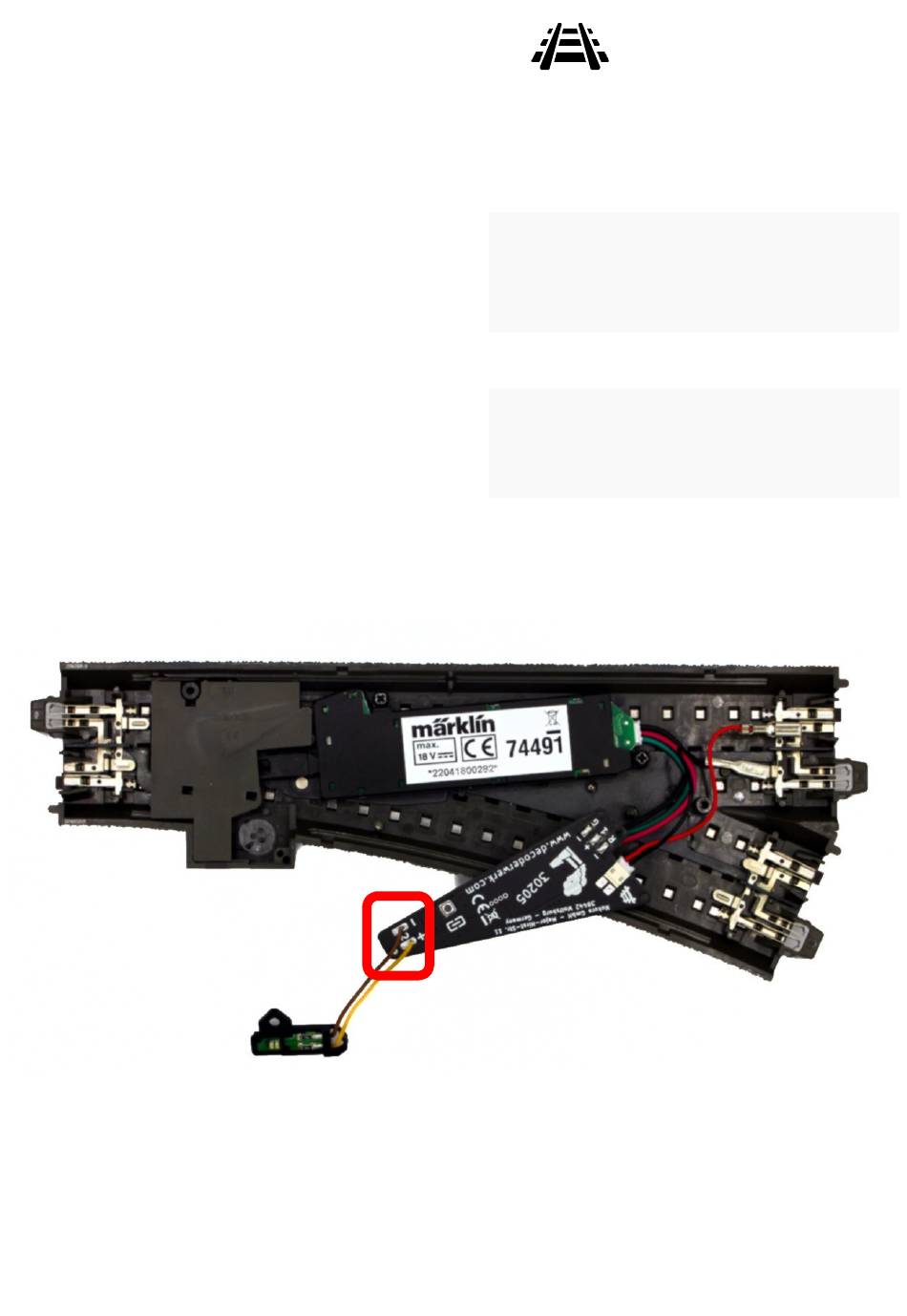

Connecting the turnout lantern
Please follow the installation instructions for
◆
the turnout lantern first.
The polarity must be observed when
◆
connecting the turnout lantern.
The supply cables of the turnout lantern
◆
must be soldered to the connections of the
decoder.
It may be advisable to shorten the supply
◆
cables accordingly.
Connect outputs
To solder the supply cables, you should
◆
remove the decoder from the turnout, as the
heat generated during the soldering process
can damage the mounting pin of the turnout.
can.
The turnout lanterns can be switched on and
◆
off using normal turnout commands.
The status of the switch lanterns is
◆
and restored when the decoder is started.
