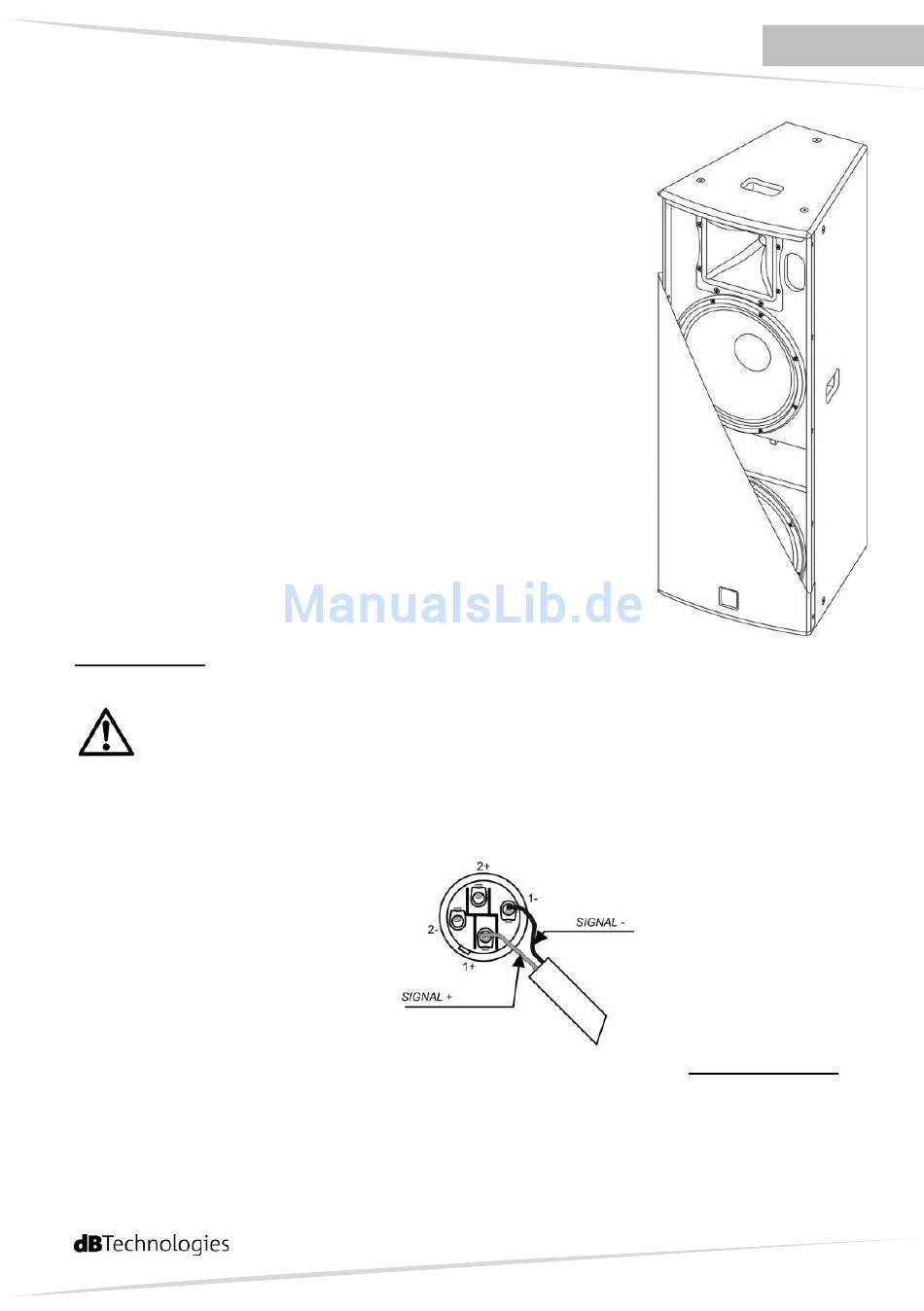

DVX P215
The passive speaker DVX P215 is equipped with two woofers
15" (voice coil 3") and a compression driver 1.4" (voice coil
2.5") installed on a 60°x40° rotatable aluminium CD- horn.
The speaker's horizontal directivity is 60° and vertical
directivity is 40° and FULL RANGE setting by default factory
setting.
Removing the rear panel it is possible to set the Bi-Amp
mode.(refer to pag.41 for the modify).
The speaker has the 4 handles housing, one per sides, the 11
M10 threads located on the sides and the back of the speaker
are enabling easy transport and installation.
A adjustable foot is present in the bottom side of the box, to
adjust the tilt for a good working.
CONNECTIONS
WARNING
To avoid electric shocks, ensure that your amplifier is switched off when you plug in the
loudspeaker. Before turning on the loudspeaker, be sure that the connections are correct
to avoid short circuits or wrong connections.
The connection panel at the back of the loudspeaker features two 4 pole Speakon connectors: the
first socket is the sound signal input socket and the second socket may function as an output
terminal for the connection with another loudspeaker.
The connections are:
1+ for the positive signal
1- for the negative signal (ground)
2+ not connected
2 - not connected
If you wish to send the amplified signal from one loudspeaker to the other, be sure that the nominal
impedance resulting from the connection is never lower than the minimum impedance of the power
amplifier. This is done to prevent overheating or, worse, damages to the amplifier.
The loudspeakers of the "DVX P" series have a nominal input impedance of 8 ohms and this must
taken into account when making the connections.
DVX P10
DVX P12
DVX P15
DVX P215 (FULL RANGE MODE)
