Wiring Diagram; Pressure Relief Valve - Rivacold Mx Betriebs- Und Wartungsanleitung

Key to symbols:
M = Compressor
CO = Condenser
RIC = Liquid receiver
RA = Suction shut-off valve
RL = Liquid shut-off valve
SP = Liquid separator
SL1 = Liquid solenoid valve
RC = Crankcase heater
IN = Sight glass
An = Vibration damper
PA = High pressure switch
PD = Double pressure switch
(Safety)
FL = Drier filter
VS = Pressure relief valve/fusible plug
These condensing units can be used in various type of installations:
• For cold rooms
• For water chillers, etc.
Each condensing unit can be connected to one or more evaporators, of course, always following
refrigeration rules. In any case, it is necessary to choose every single component with care. The
following section contains examples of refrigerating diagrams which complete the refrigerating
diagrams shown above.

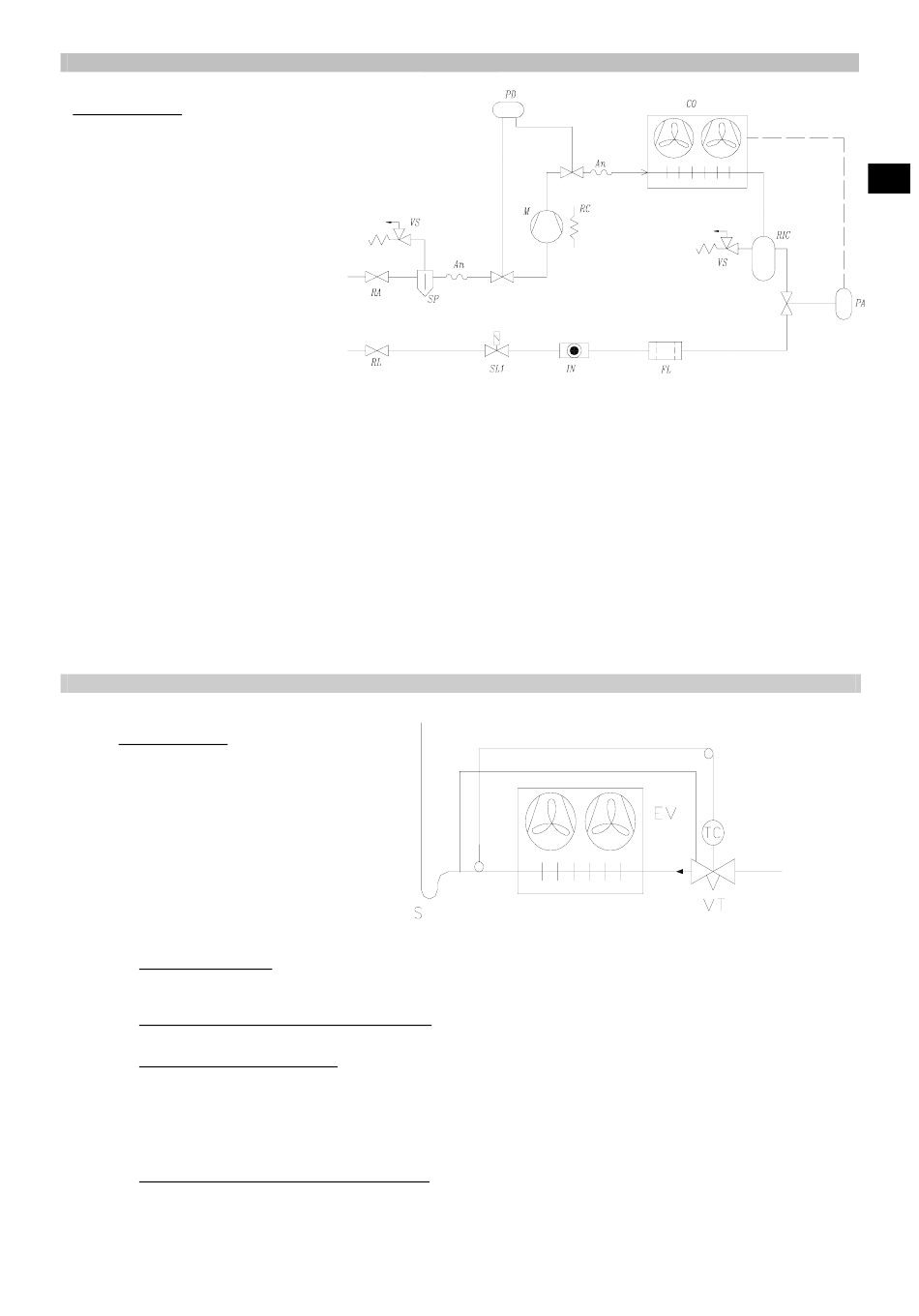

Drawing 7 (refrigerating diagram evaporating part)
Key to symbols:
EV = Evaporator
VT = Thermostatic valve
S = Siphon
7.

WIRING DIAGRAM

The wiring diagrams have been placed inside the control panel of the machine.
8. PRESSURE RELIEF VALVE (where provided)
8. 1 Instructions and limits of use
Replacement of the pressure relief valve is suggested whenever; during the drainage, the build-up of
component processing and pipe residues happens to make the shutting of the seal defective.
Before you replace the valve, make sure that the system is not under pressure or at high-level
temperature in the area you are operating.
8. 2 Maintenance/inspection and valve setting
Warning! Maintenance is not provided for pressure relief valves. The removal of the cap or the
tampering of the seal are considered unauthorized modifications of the setting. This will void the
manufacturer's guarantee.
Drawing. 6
Drawing 7
