BSS-Streaming Service
Connections BSS-Case Rodecaster Video
The following connections on the BSS case are arranged in a user-friendly way. However,
the BSS-Case Rodecaster Professional may have additional connection sockets.

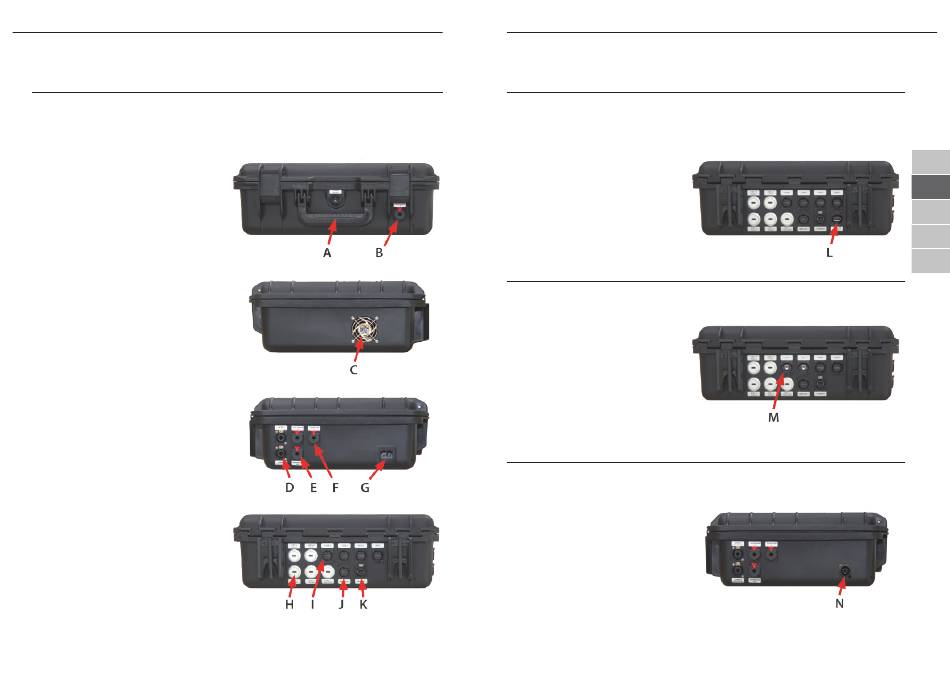

Front side
• On/Off switch (A)
• Headphones 6.35 mm Stereo jack
socket (B)
Right side
• Fan (C)
Left side
• 2x combo audio connections: XLR
balanced / jack 6.35 mm unbalanced
(D)
• 2x jack 6.35 mm loudspeaker (E)
• 1x jack 6.35 mm headphones (F)
• Mains connection 230 V
Version: C14 (G)
Reverse side
• 5x USB-C (H)
• 4x HDMI in (I)
• HDMI out (J)
• Ethernet RJ45 (K)
Page 32
BSS-Case Operating instruction EN
Connections BSS-Case Rodecaster Video Option: USB
The optional USB-A charging port is mounted on the back of the case for easy access.
Reverse side
• USB-A charging socket (L)
Connections BSS-Case Rodecaster Video Option: SDI
The two 3G-SDI connections (BNC sockets) are mounted on the back of the case instead
of the HDMI 3 & 4 sockets.
Reverse side
• 2x SDI connection sockets
BNC 75 Ohm (M)
Connections BSS-Case Rodecaster Video Option: powerCON© True 1
The powerCON True 1 built-in socket is installed instead of the CEE 7/7 IEC socket.
Left side
• PowerCon True 1 mains connec-
tion socket 230V/16A (N)
