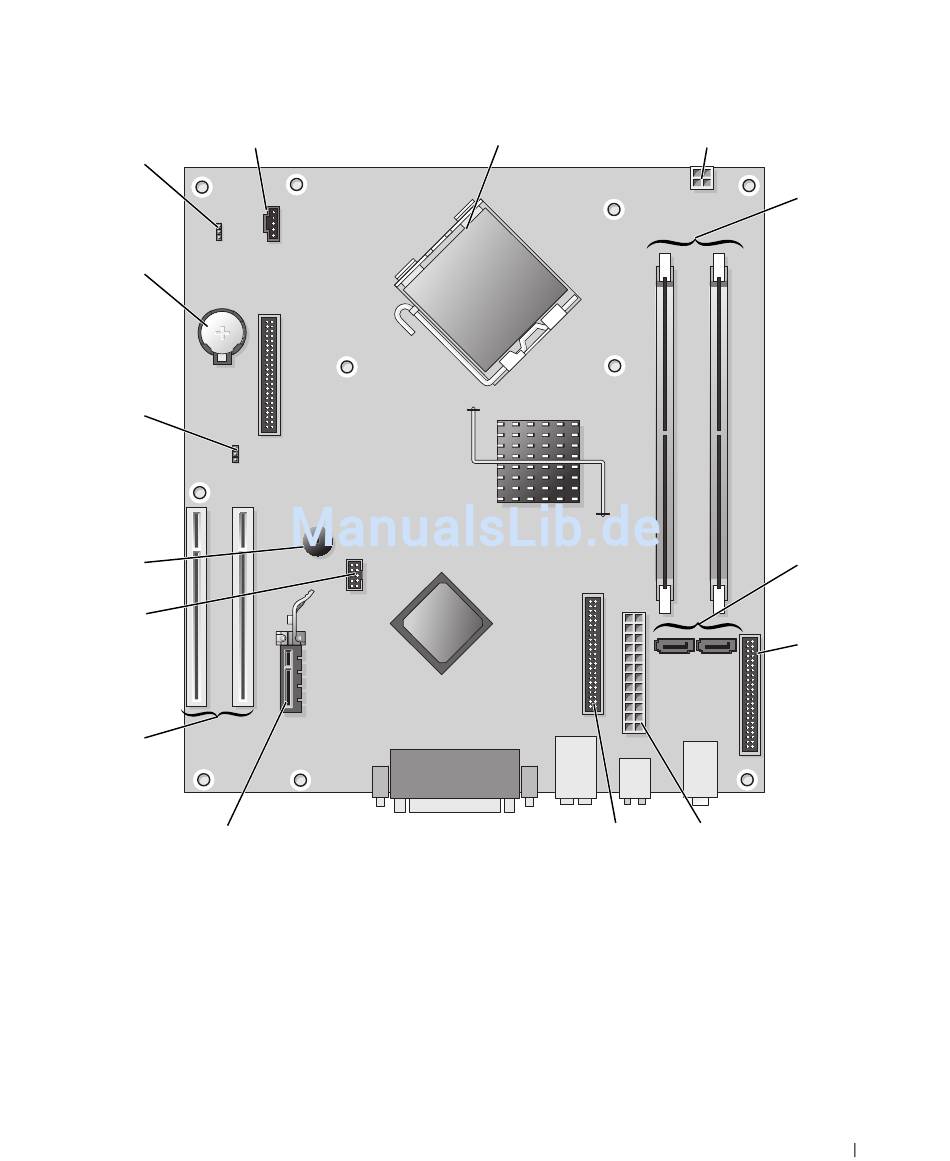

System Board Components
15
14
13
12
11
10
9
1 fan connector (FAN)
2 processor connector (CPU)
3 power connector (12VPOWER)
4 memory module connectors (DIMM_1, DIMM_2)
5 serial ATA drive connectors (SATA0, SATA2)
6 front-panel connector (FNT_PANEL)
7 power connector (POWER)
8 CD/DVD drive connector (IDE)
1
2
8
9 PCI Express x1 card connector
10 PCI card connector (2)
11 FlexBay USB connector
12 Piezo speaker
13 password jumper (PSWD)
14 battery socket (BATT)
15 RTC reset jumper (RTCRST)
Quick Reference Guide
3
4
5
6
7
