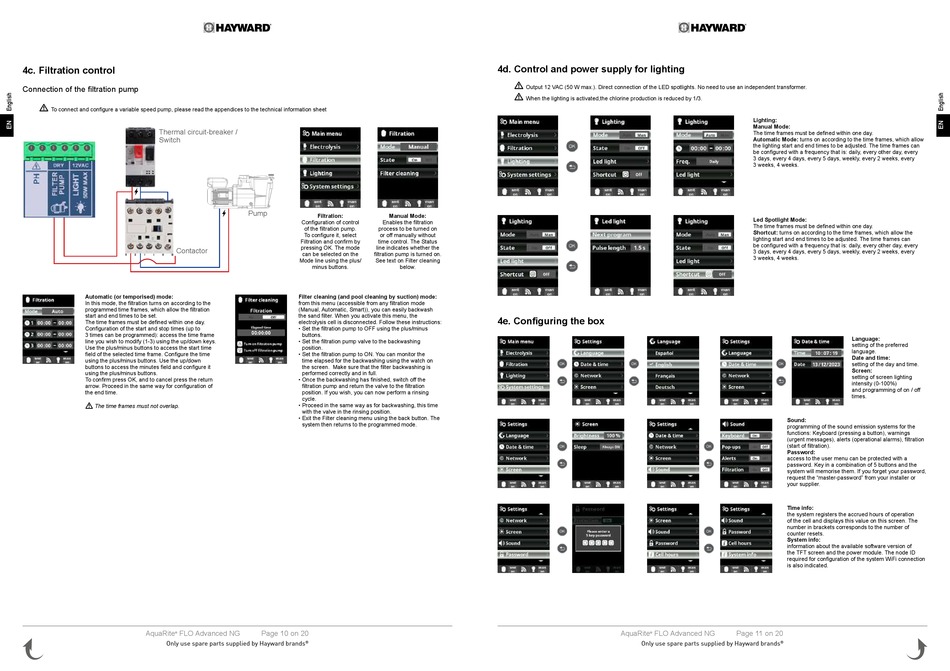

4c. Filtration control
Connection of the filtration pump
•
To connect and configure a variable speed pump, please read the appendices to the technical information sheet
Thermal circuit-breaker /
Switch
1 2 3 4 5 6
Contactor
Automatic (or temporised) mode:
In this mode, the filtration turns on according to the
programmed time frames, which allow the filtration
start and end times to be set.
The time frames must be defined within one day.
Configuration of the start and stop times (up to
3 times can be programmed): access the time frame
line you wish to modify (1-3) using the up/down keys.
Use the plus/minus buttons to access the start time
field of the selected time frame. Configure the time
using the plus/minus buttons. Use the up/down
buttons to access the minutes field and configure it
using the plus/minus buttons.
To confirm press OK, and to cancel press the return
arrow. Proceed in the same way for configuration of
the end time.
•
The time frames must not overlap.
AquaRite FLO Advanced NG
®
Only use spare parts supplied by Hayward brands
Pump
Filtration: Manual Mode:
Configuration of control Enables the filtration
of the filtration pump. process to be turned on
To configure it, select or off manually without
Filtration and confirm by time control. The Status
pressing OK. The mode line indicates whether the
can be selected on the filtration pump is turned on.
Mode line using the plus/ See text on Filter cleaning
minus buttons. below.
Filter cleaning (and pool cleaning by suction) mode:
from this menu (accessible from any filtration mode
(Manual, Automatic, Smart)), you can easily backwash
the sand filter. When you activate this menu, the
electrolysis cell is disconnected. Follow these instructions:
• Set the filtration pump to OFF using the plus/minus
buttons.
• Set the filtration pump valve to the backwashing
position.
• Set the filtration pump to ON. You can monitor the
time elapsed for the backwashing using the watch on
the screen. Make sure that the filter backwashing is
performed correctly and in full.
• Once the backwashing has finished, switch off the
filtration pump and return the valve to the filtration
position. If you wish, you can now perform a rinsing
cycle.
• Proceed in the same way as for backwashing, this time
with the valve in the rinsing position.
• Exit the Filter cleaning menu using the back button. The
system then returns to the programmed mode.
Page 10 on 20
®
4d. Control and power supply for lighting
•
Output 12 VAC (50 W max.). Direct connection of the LED spotlights. No need to use an independent transformer.
•
When the lighting is activated,the chlorine production is reduced by 1/3.
4e. Configuring the box
AquaRite FLO Advanced NG
®
Only use spare parts supplied by Hayward brands
Lighting:
Manual Mode:
The time frames must be defined within one day.
Automatic Mode: turns on according to the time frames, which allow
the lighting start and end times to be adjusted. The time frames can
be configured with a frequency that is: daily, every other day, every
3 days, every 4 days, every 5 days, weekly, every 2 weeks, every
3 weeks, 4 weeks.
Led Spotlight Mode:
The time frames must be defined within one day.
Shortcut: turns on according to the time frames, which allow the
lighting start and end times to be adjusted. The time frames can
be configured with a frequency that is: daily, every other day, every
3 days, every 4 days, every 5 days, weekly, every 2 weeks, every
3 weeks, 4 weeks.
Language:
setting of the preferred
language.
Date and time:
setting of the day and time.
Screen:
setting of screen lighting
intensity (0-100%)
and programming of on / off
times.
Sound:
programming of the sound emission systems for the
functions: Keyboard (pressing a button), warnings
(urgent messages), alerts (operational alarms), filtration
(start of filtration).
Password:
access to the user menu can be protected with a
password. Key in a combination of 5 buttons and the
system will memorise them. If you forget your password,
request the "master-password" from your installer or
your supplier.
Time info:
the system registers the accrued hours of operation
of the cell and displays this value on this screen. The
number in brackets corresponds to the number of
counter resets.
System info:
information about the available software version of
the TFT screen and the power module. The node ID
required for configuration of the system WiFi connection
is also indicated.
