Hayward AquaRite Flo Advanced NG Anwenderhandbuch Seite 16

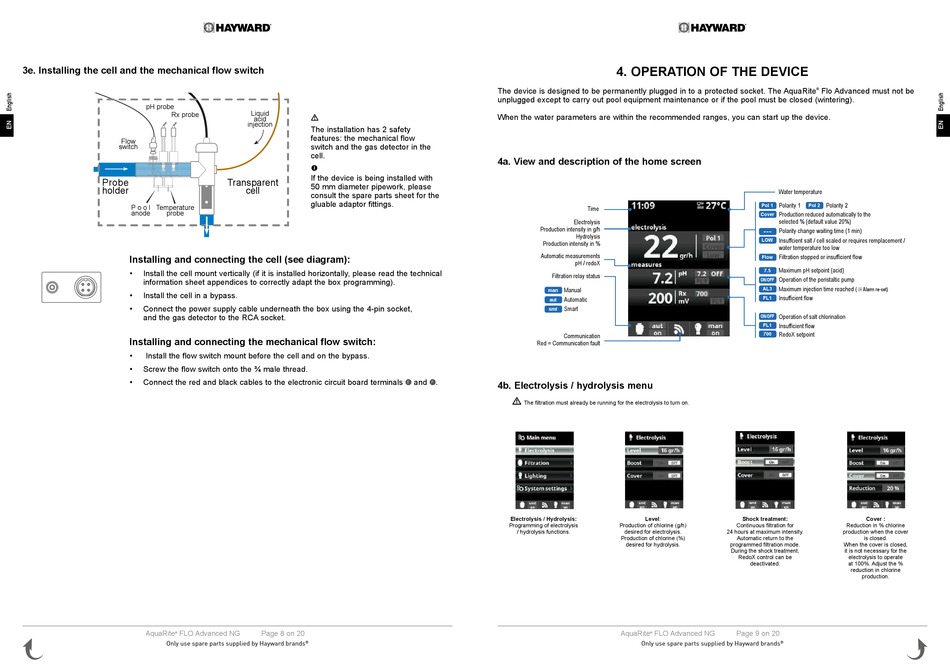

3e. Installing the cell and the mechanical flow switch
pH probe
Rx probe
Flow
switch
Probe
holder
P o o l Temperature
anode probe
Installing and connecting the cell (see diagram):
• Install the cell mount vertically (if it is installed horizontally, please read the technical
information sheet appendices to correctly adapt the box programming).
• Install the cell in a bypass.
• Connect the power supply cable underneath the box using the 4-pin socket,
and the gas detector to the RCA socket.
Installing and connecting the mechanical flow switch:
• Install the flow switch mount before the cell and on the bypass.
• Screw the flow switch onto the ¾ male thread.
• Connect the red and black cables to the electronic circuit board terminals
AquaRite FLO Advanced NG
®
Only use spare parts supplied by Hayward brands
Liquid
•
acid
injection
The installation has 2 safety
features: the mechanical flow
switch and the gas detector in the
cell.
i
If the device is being installed with
Transparent
50 mm diameter pipework, please
cell
consult the spare parts sheet for the
gluable adaptor fittings.
Page 8 on 20
®
The device is designed to be permanently plugged in to a protected socket. The AquaRite
unplugged except to carry out pool equipment maintenance or if the pool must be closed (wintering).
When the water parameters are within the recommended ranges, you can start up the device.
4a. View and description of the home screen
Electrolysis
Production intensity in g/h
Hydrolysis
Production intensity in %
Automatic measurements
pH / redoX
Filtration relay status
Manual
man
Automatic
aut
Smart
smt
Communication
Red = Communication fault
and .
E F 4b. Electrolysis / hydrolysis menu
•
The filtration must already be running for the electrolysis to turn on.
Electrolysis / Hydrolysis:
Programming of electrolysis
/ hydrolysis functions.
4. OPERATION OF THE DEVICE
Pol 1
Time
Cover
---
LOW
Flow
7.5
ON/OFF
AL3
FL1
ON/OFF
FL1
700
Level: Shock treatment:
Production of chlorine (g/h) Continuous filtration for
desired for electrolysis. 24 hours at maximum intensity.
Production of chlorine (%) Automatic return to the
desired for hydrolysis. programmed filtration mode.
During the shock treatment,
RedoX control can be
deactivated.
AquaRite FLO Advanced NG Page 9 on 20
®
Only use spare parts supplied by Hayward brands
Flo Advanced must not be
®
Water temperature
Polarity 1 Polarity 2
Pol 2
Production reduced automatically to the
selected % (default value 20%)
Polarity change waiting time (1 min)
Insuffcient salt / cell scaled or requires remplacement /
water temperature too low
Filtration stopped or insufficient flow
Maximum pH setpoint (acid)
Operation of the peristaltic pump
Maximum injection time reached
( Alarm re-set)
Insufficient flow
Operation of salt chlorination
Insufficient flow
RedoX setpoint
Cover :
Reduction in % chlorine
production when the cover
is closed.
When the cover is closed,
it is not necessary for the
electrolysis to operate
at 100%. Adjust the %
reduction in chlorine
production.
®
