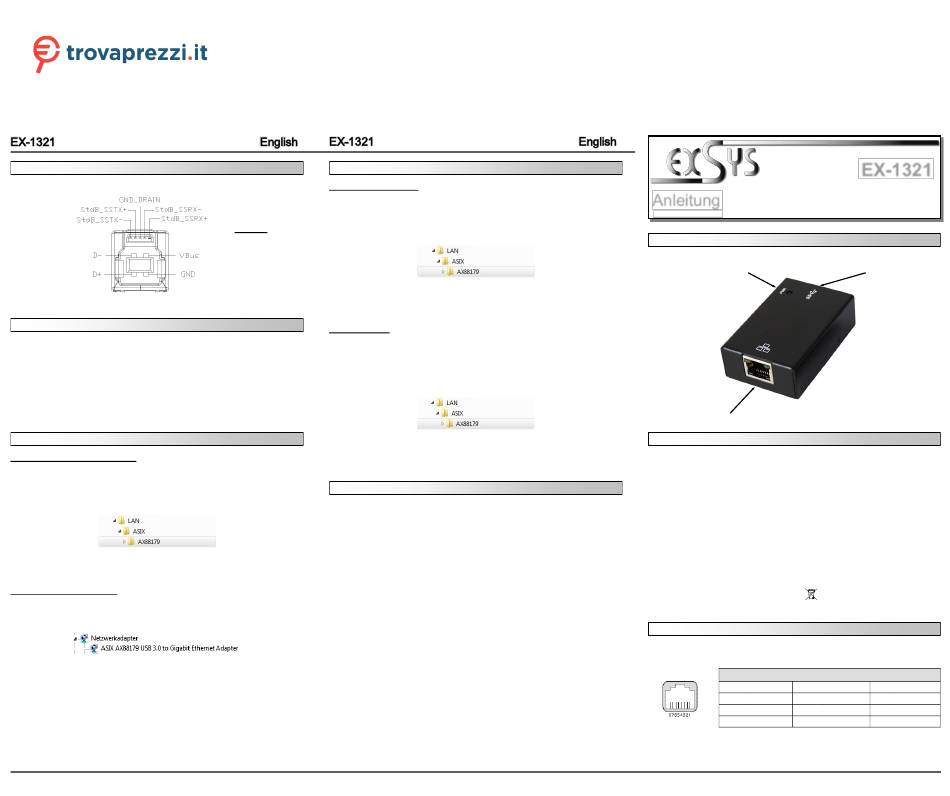

CONNECTORS
USB 3.1 B-Port:
HARDWARE INSTALLATION
Because there are large differences between PC's, we can give you only a general
installation guide for the EX-1321. Please refer your computer's reference manual
whenever in doubt.
1. Connect the USB cable to the USB B-Port at the EX-1321.
2. Now connect the other end from the USB cable (A-Plug) to the A-Port at your PC.
3. Now you can connect a network cable at the EX-1321.
DRIVER INSTALLATION
Windows XP/ Vista/ 7/ 8.x/ 10
After the hardware installation Windows will recognize the device automatically and
install the drivers. If the driver shoul not be installed automatically, please insert the
Driver CD into your CD-Rom drive (e.g. Drive D:) and open the folder for your operating
system which is in the folder „AX88179" (see picture).
Now start the „setup" file which is in the „AX88179" folder. Follow the installation in-
structions and complete the installation.
CHECK INSTALLED DRIVER
Open the >Device manager<. Now you should see at „Ethernet Adapter" the following
new entry:
If you see this or a similar information the device is installed correctly.
5
Questo manuale d'istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per
tuo prodotto tra le
migliori offerte di Schede di Rete
DRIVER INSTALLATION
Mac OS X 10.6-10.10
After the hardware installation Windows will recognize the device automatically and
install the drivers. If the driver shoul not be installed automatically, please insert the
Driver CD into your CD-Rom drive (e.g. Drive D:) and open the folder „MacOS10.6-
10.10" which is in the folder „AX88179" (see picture).
Attention!
Never plug in with
force or in wrong
direction.
In the folder containing the drivers, as well as detailed installation instructions for your
Mac system.
Linux 3.x2.6.x
After the hardware installation Windows will recognize the device automatically and
install the drivers. If the driver shoul not be installed automatically, please insert the
Driver CD into your CD-Rom drive (e.g. Drive D:) and open the folder
„Linux_kernel_3.x2.6.x" which is in the folder „AX88179" (see picture).
In the folder containing the drivers for your Linux system.
CLEANING
For cleaning please use only a dry fluff less cloth and remove the dirt with gently pres-
sure. In the area of the connectors please make sure that no fibres from the cloth re-
main in the connectors. Attention! Never use a moist or wet cloth for cleaning!
AUFBAU
BESCHREIBUNG & TECHNISCHE DATEN
Die EX-1321 ist mit 1 USB 3.1 (Gen1) B-Buchse zum Anschluss an den PC und 1 RJ45
Port ausgestattet. Die EX-1321 ermöglicht Ihnen auf einfachste Weise Ihren Desktop
PC oder Ihr Notebook in ein 10/100/1000Mbps Netzwerk einzubinden oder ein Endgerät
anzuschließen. Er unterstützt alle USB Anschlüsse von 1.1 bis 3.1. Die EX-1321
gewährleistet eine sichere Datenübertragung und exzellente Performance von bis zu
5Gbit pro Sekunde auf der USB Schnittstelle! Der RJ45 Anschluss wird durch einen
ASIX Chipset unterstützt. Er unterstützt den Bus Powered Modus. Es ist nicht möglich
die I/O Adressen und Interrupts manuell einzustellen, da die Einstellungen vom System
(BIOS) und beim installieren des Betriebssystems automatisch vorgenommen werden.
Im Lieferumfang ist ein DIN-RAIL Kit für die Installation auf einer Trägerschiene enthalten.
Das DIN-RAIL Kit wird mit vier Schrauben auf der Rückseite der EX-1321 festgeschraubt.
Kompatibilität:
Betriebssysteme:
Anschlüsse:
Lieferumfang:
Zertifikate:
ANSCHLÜSSE
RJ45 Anschluss:
6
Exsys EX-1321
Anleitung
Vers. 1.0 / 24.09.15
Betriebs LED
RJ45 Anschluss
USB 1.1, 2.0, 3.0 & 3.1 / TCP/IP 10/100/1000
Windows XP/ Vista/ 7/ 8.x/ 10/ Mac OS X 10.6-10.10/ Linux
1x USB 3.1 (Gen1) B-Buchse, 1x RJ45 Gigabit Ethernet Anschluss
EX-1321, Treiber CD, Anleitung, USB Kabel, DIN-RAIL Kit
CE / FCC / RoHS / WEEE
DE97424562 / WHQL
RJ45 Anschluss
Pin
Signal
Pin
1
BI_DA+
4
BI_DC+
2
BI_DA-
5
3
BI_DB+
6
1
o cerca il
EX-1321
USB 3.1 B-Buchse zum
Anschluss an den PC
Signal
Pin
Signal
7
BI_DD+
BI_DC-
8
BI_DD-
BI_DB-
