User's Manual
4.4 Mounting the flat screen
Tab. 21: Mounting the flat screen
Tools for all Models

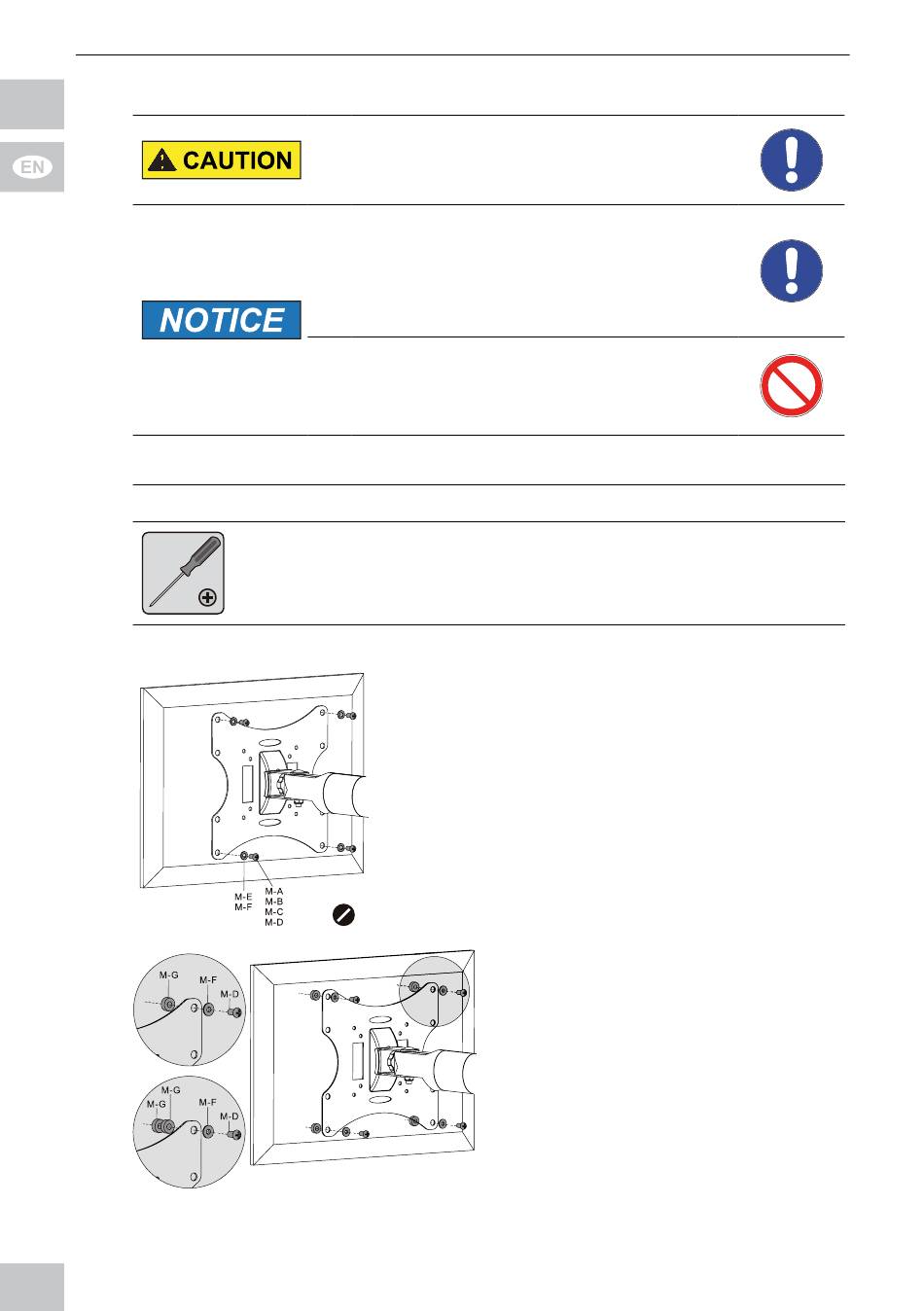

Fig. 16: Mounting the flat screen
30
Risk of injury by tripping and falling
>> Place, transport and install product, parts
and acceories in a safe way.
Risk of material damage by improper
procedure
>> Only use moderate force when tightening
the screws in order to avoid damaging
threads.
>> NEVER set the screen on the front during
installation!
>> Do not damage the flat screen by too
long screws.
1. L ean the flat screen vertically
o n a soft, large surface or a
wall and protect it of scratches
and overturning.
2. Attach the VESA plate (B) with
t he washers and screws, fitting
t o your flat screen at the flat
screens back as shown.
Flat screens with arched backs can
be mounted to the VESA plate by
using the TV spacers (M-G) in single
or double version.
