Tools for all Models

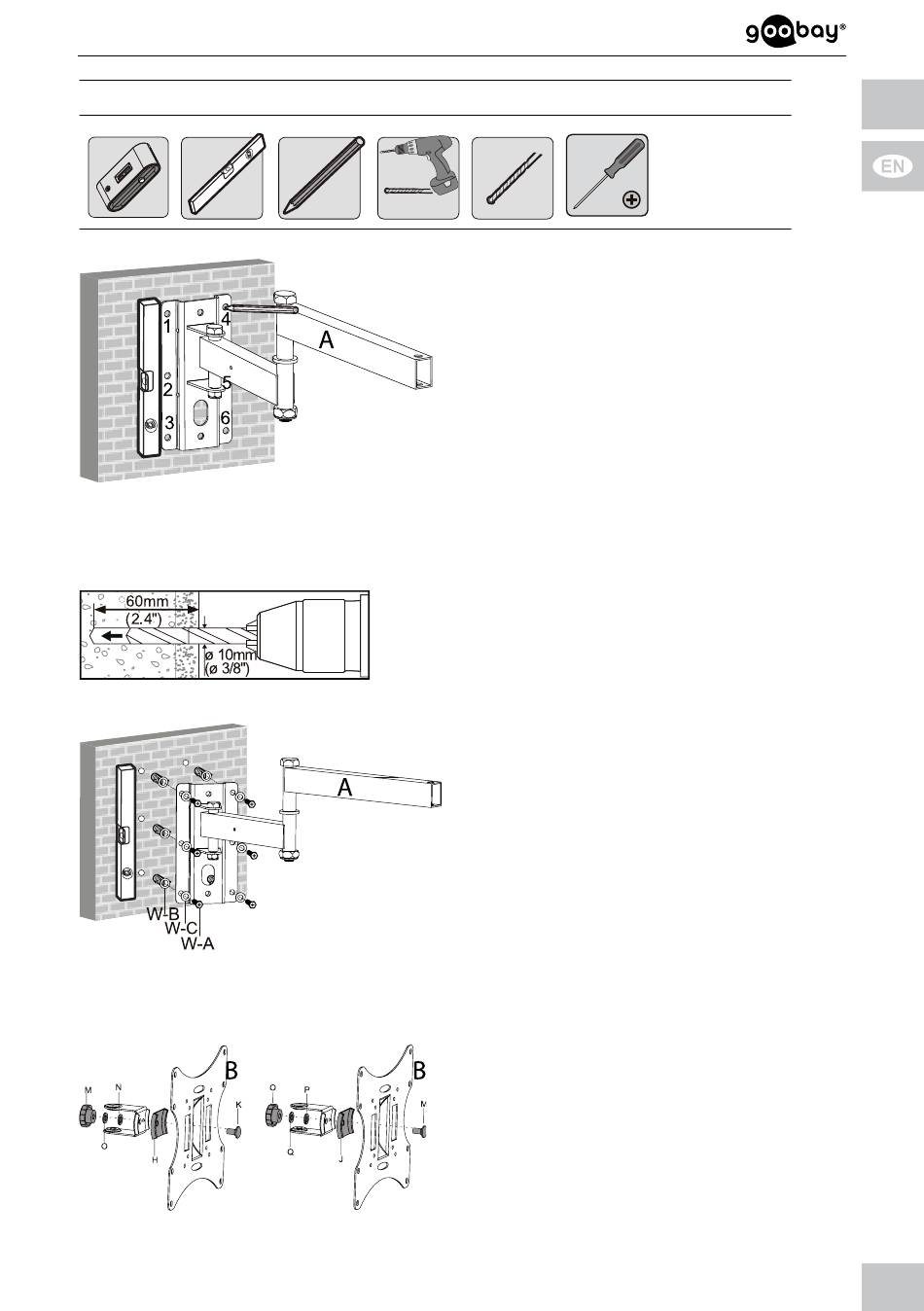

Fig. 12: Aligning and Marking
Fig. 13: Drilling drill holes
Fig. 14: Wall mounting
4.3

assembling the VEsa plate

Fig. 15: Assembling the VESA plate of 51884/51894 and 51885/51895
1. B efore drilling, attend to live
cables or other lines lying
b ehind plaster, and do not
damage them.
2. Use a spirit level to mark the
drill holes on the wall.
3. Mark the drill holes 1 to 6 with
a pencil.
Use the TV wall plate (A) as template.
4. Drill the drill holes with a
10mm concrete drill 60mm
deep.
5. Plug a concrete anchor (W-B)
in each drilling hole.
6. Attach the TV wall mount (A)
with the wall screws (W-A) and
washers (W-C) like shown.
1. Connect the parts like shown.
T herefor, attend to the
different part names of model
51884/51894 and
51885/51895.
2. Fix the M8 Adjusting wheel
(M) / (O) clockwise.
29
