The mounting height of the outboard affects the running speed seriously.
When the mounting height is too high, ventilation may occur to waste power.
When the mounting height is too low, the water resistance will increase and it
will lead to efficiency and running speed reducing.
Transom Height
Higher than 500mm
400mm~500mm
300mm~400mm
Select a proper model according to your transom height and applications.
The optimum mounting height is affected by the conditions of boat and re-
quirements. It's recommended to test running at a different height to help ob-
tain the optimum mounting height. You can consult your dealer to get more
information.
Step2: Lift the battery by gripping the handle and pull up the battery lock.
Align the two slots on the battery bottom to the blocks on the bracket and
put down the battery. Release the battery lock and lock the battery on the
bracket.
Recommended Model
SPIRIT 1.0 Plus-L
SPIRIT 1.0 Plus-S
SPIRIT 1.0 Plus-XS

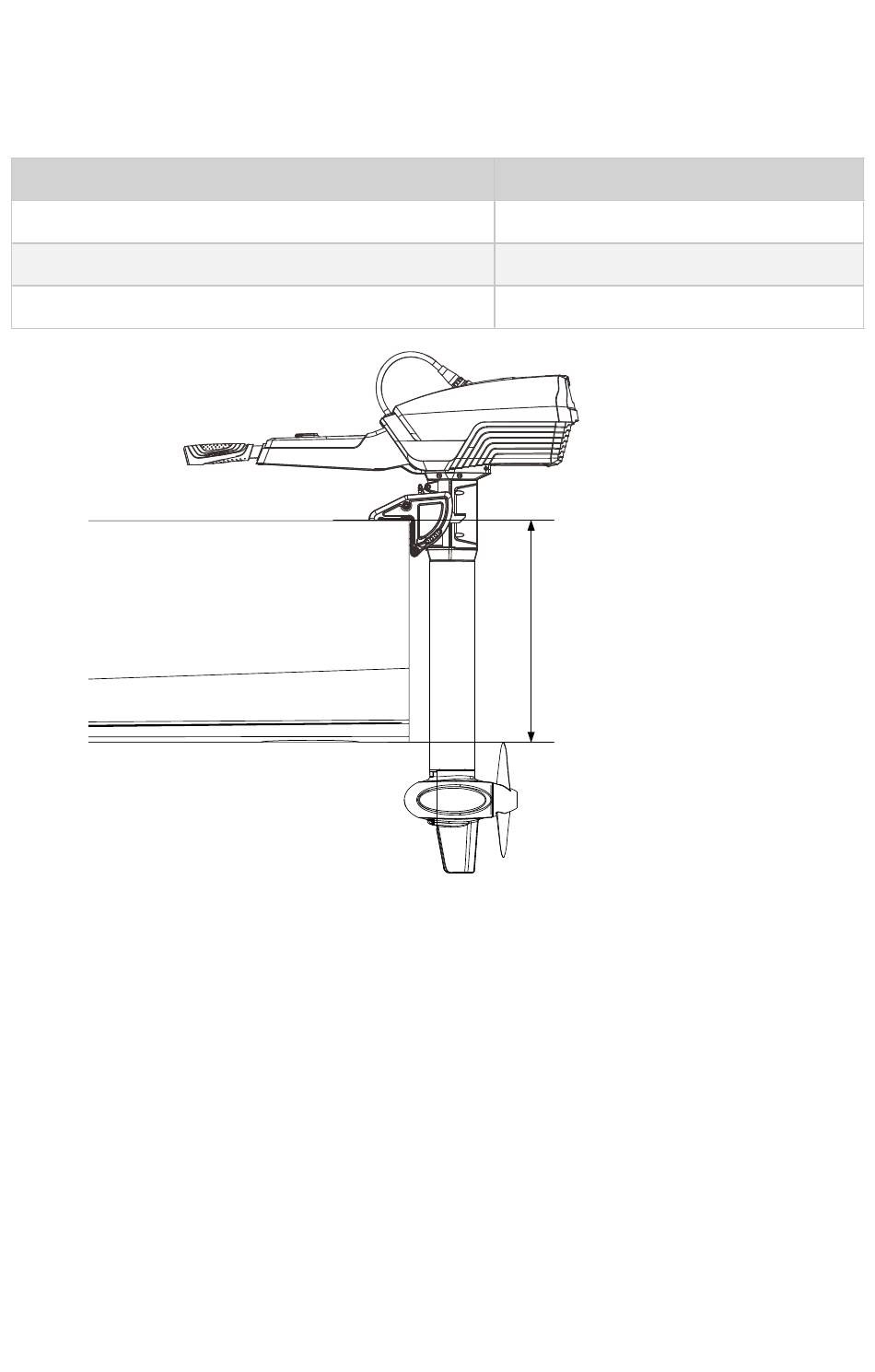

Figure 3-4
16
Top of boat transom
Transom height
Bottom of boat
(lowest point)
