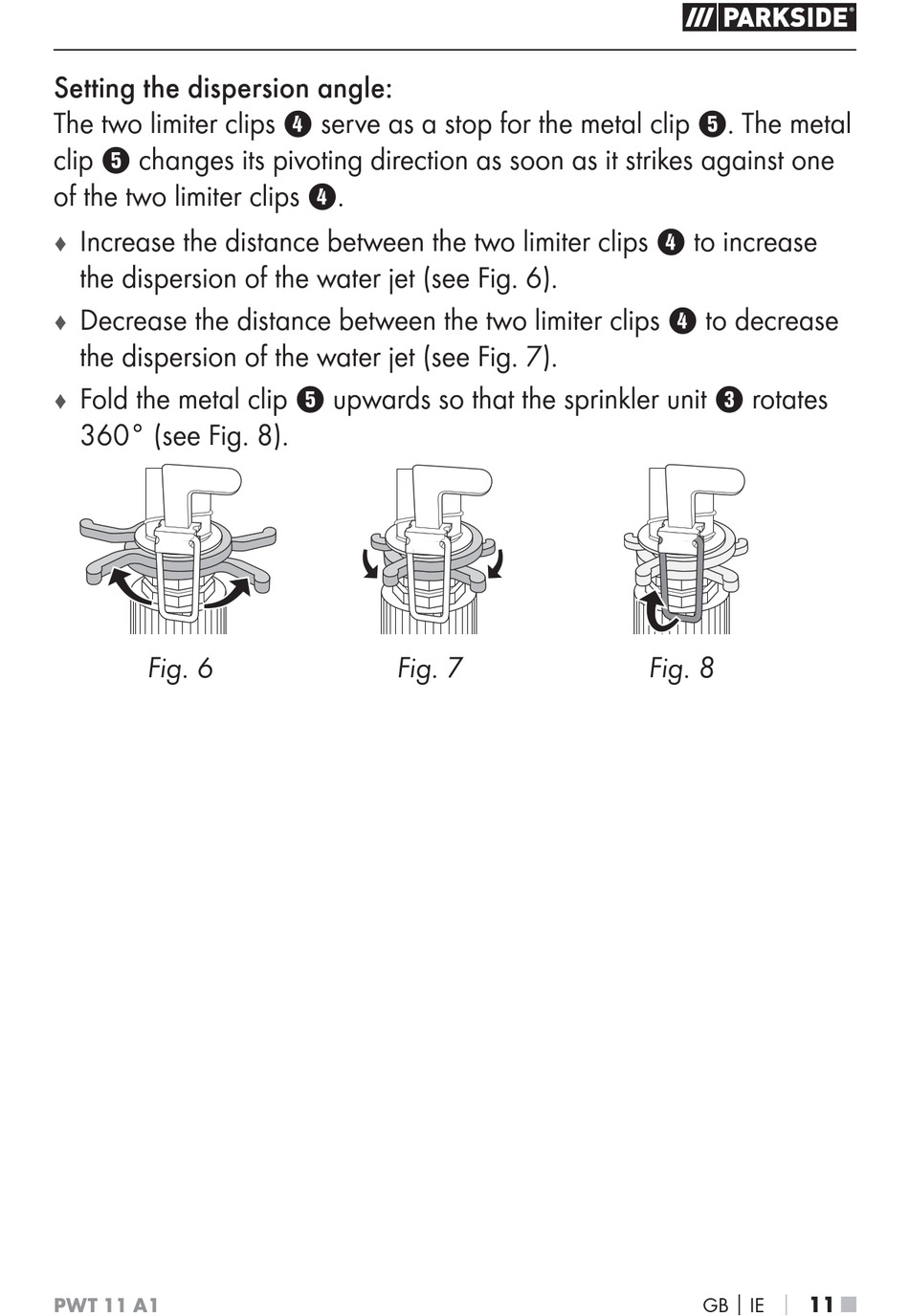

Setting the dispersion angle:
The two limiter clips 4 serve as a stop for the metal clip 5. The metal
clip 5 changes its pivoting direction as soon as it strikes against one
of the two limiter clips 4.
Increase the distance between the two limiter clips 4 to increase
♦
the dispersion of the water jet (see Fig. 6).
Decrease the distance between the two limiter clips 4 to decrease
♦
the dispersion of the water jet (see Fig. 7).
Fold the metal clip 5 upwards so that the sprinkler unit 3 rotates
♦
360° (see Fig. 8).
Fig. 6
PWT 11 A1
Fig. 7 Fig. 8
