Sony SU-WL900 Installationsinformationen Seite 30

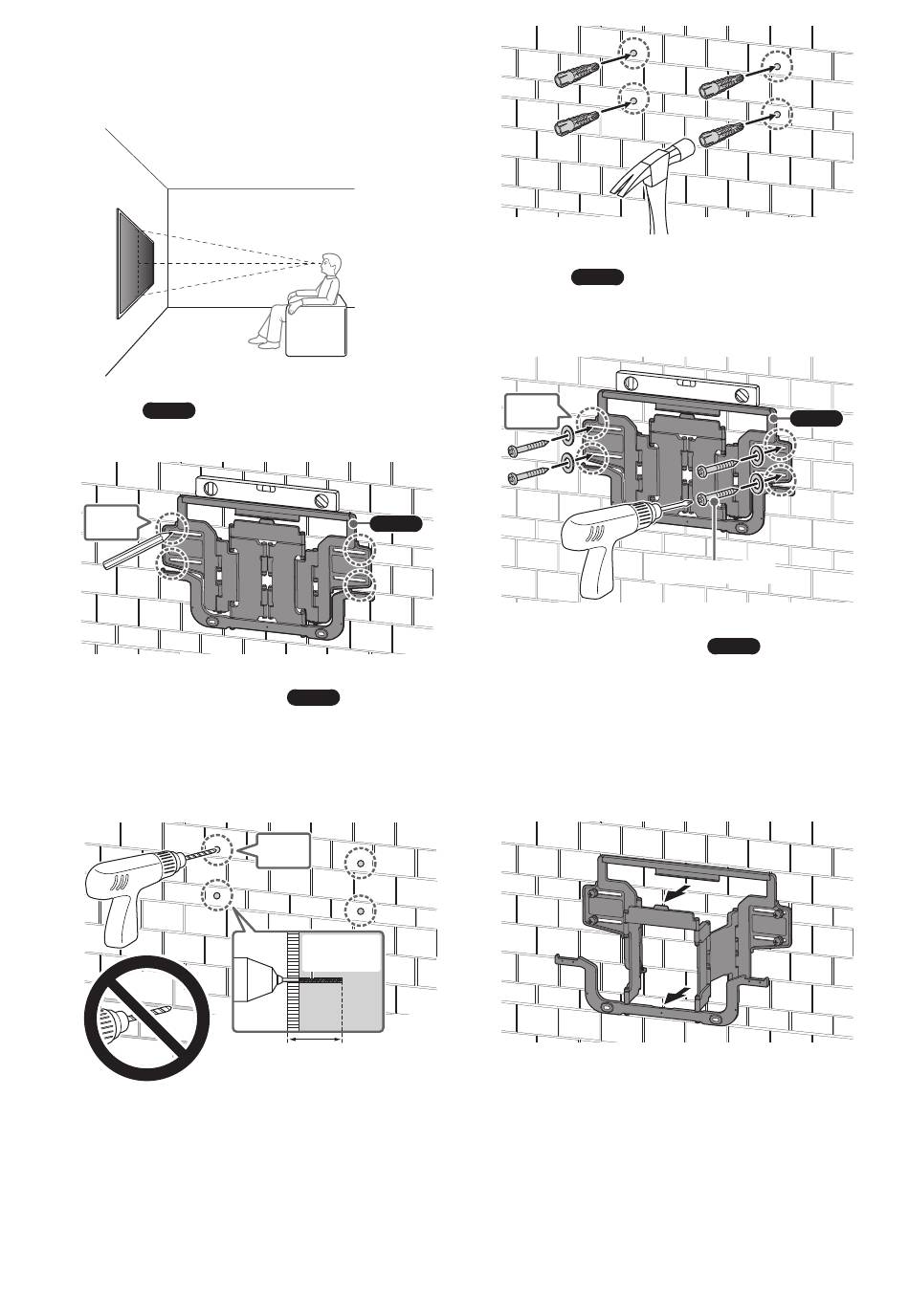

Note
ˎ When your TV is installed on the wall, the upper
side of the TV slightly leans forward.
ˎ We recommend you to check the position of TV in
the viewing environment.
2
Align to the wall and make
WM1
four marks.
× 4
Note
ˎ Use a level to check whether
3
Drill pilot holes on the marks.
Make sure the location on the wall to drill
the holes are strong enough to support a
weight of at least four times that of the TV.
Note
ˎ Pilot holes must be drilled to a depth of 75 mm,
using a 10 mm diameter drill bit.
WM1
WM1
is level.
× 4
ø 10 mm
75 mm
− 30 (EN) −
4
5
Install on the wall using
WM1
suitable screws (not supplied)
and washers (not supplied).
× 4
Note
ˎ Use a level to check whether
Precaution
ˎ Do not over-tighten wooden screw 8 mm × 60 mm.
Improper tightening could reduce the holding
power of wooden screw 8 mm × 60 mm.
6
Pull out the arm of the bracket to
the end.
WM1
8 mm × 60 mm
WM1
is level.
