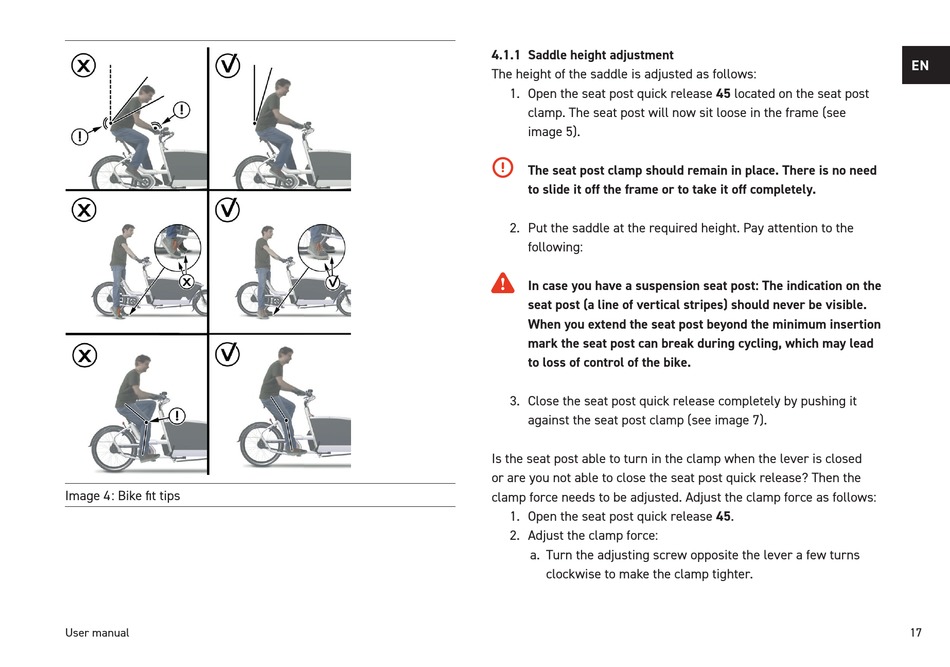

Image 4 : Bike fi t tips
User manual
4 . 1 . 1 Saddle height adjustment
The height of the saddle is adjusted as follows:
1 . Open the seat post quick release 45 located on the seat post
clamp. The seat post will now sit loose in the frame (see
image 5 ).
2
The seat post clamp should remain in place. There is no need
to slide it off the frame or to take it off completely.
2 . Put the saddle at the required height. Pay attention to the
following:
6
In case you have a suspension seat post: The indication on the
seat post (a line of vertical stripes) should never be visible.
When you extend the seat post beyond the minimum insertion
mark the seat post can break during cycling, which may lead
to loss of control of the bike.
3 . Close the seat post quick release completely by pushing it
against the seat post clamp (see image 7 ).
Is the seat post able to turn in the clamp when the lever is closed
or are you not able to close the seat post quick release? Then the
clamp force needs to be adjusted. Adjust the clamp force as follows:
1 . Open the seat post quick release 45 .
2 . Adjust the clamp force:
a . Turn the adjusting screw opposite the lever a few turns
clockwise to make the clamp tighter.
