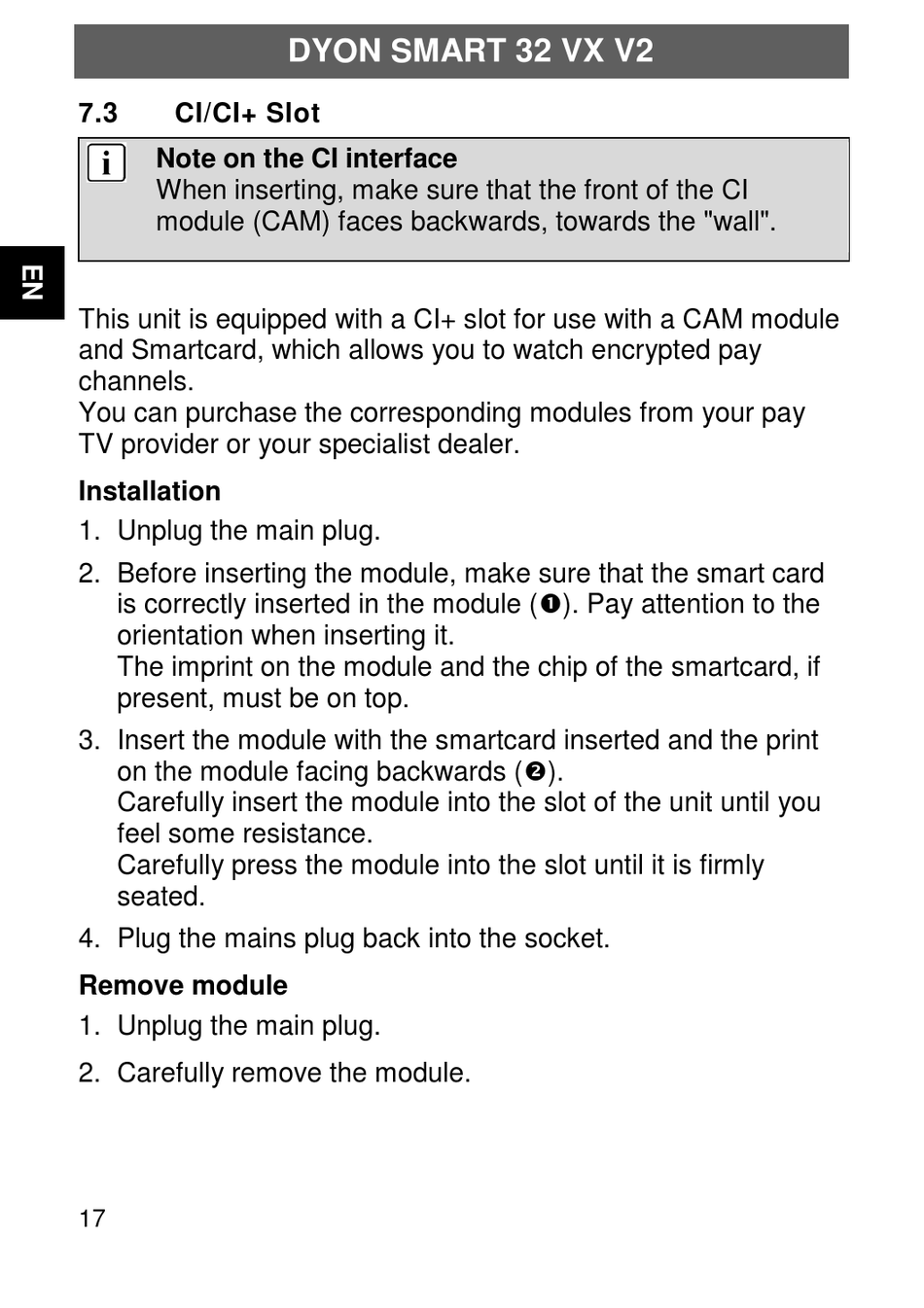

7.3 CI/CI+ Slot
Note on the CI interface
When inserting, make sure that the front of the CI
module (CAM) faces backwards, towards the "wall".
This unit is equipped with a CI+ slot for use with a CAM module
and Smartcard, which allows you to watch encrypted pay
channels.
You can purchase the corresponding modules from your pay
TV provider or your specialist dealer.
Installation
1. Unplug the main plug.
2. Before inserting the module, make sure that the smart card
is correctly inserted in the module (). Pay attention to the
orientation when inserting it.
The imprint on the module and the chip of the smartcard, if
present, must be on top.
3. Insert the module with the smartcard inserted and the print
on the module facing backwards ().
Carefully insert the module into the slot of the unit until you
feel some resistance.
Carefully press the module into the slot until it is firmly
seated.
4. Plug the mains plug back into the socket.
Remove module
1. Unplug the main plug.
2. Carefully remove the module.
