4.2 Compatible devices for the use with the DTRX3 receiver

WARNING! In case of using the DTRX324, refer to the paragraph 17. Compatible devices for the use
with the DTRX324 receiver.
• Control keyboards: DCS3, DCS2, DCMT8, DCJ, DCT, DCTEL, DCIR.
• PTH310/PTH310P, PTH311/PTH311P, PTH910/PTH910P, PTH911/PTH911P, NXPTH210, NXPTH211C:
Pan & Tilt motors
• DCMX: communications controller
• DCRE485: serial data distributor
Read the instruction manuals for the correct use of the above mentioned devices.

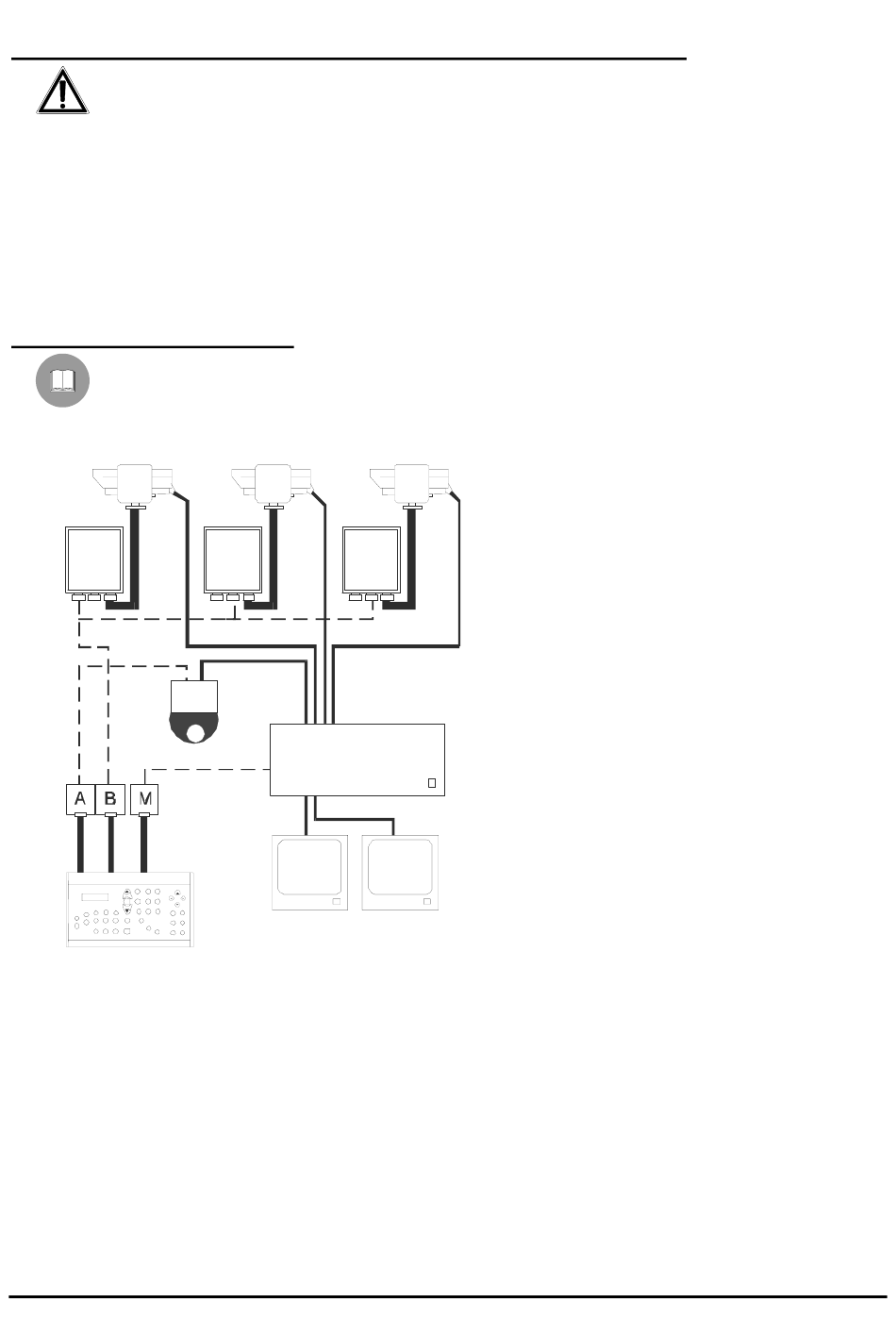

4.3 Installation examples

A single operator with several monitors for the control of a set of positioning devices in mixed
configuration:
R1
OEM
K1
R2
R3
M1
Page 5
DEVICES:
Control keyboard:
•
1 DCS3 control keyboard
Video management:
•
2 monitors
•
3 cameras (+1 OEM receiver)
•
1 video matrix SW328
Telemetry management:
•
3 DTRX3 receivers
•
3 PTH910P P&t
(PTH911P with
receiver)
•
1 OEM receiver (with camera
included)
MNVCDTRX301_0446
motors
DTRX324
