4) Normal Setting

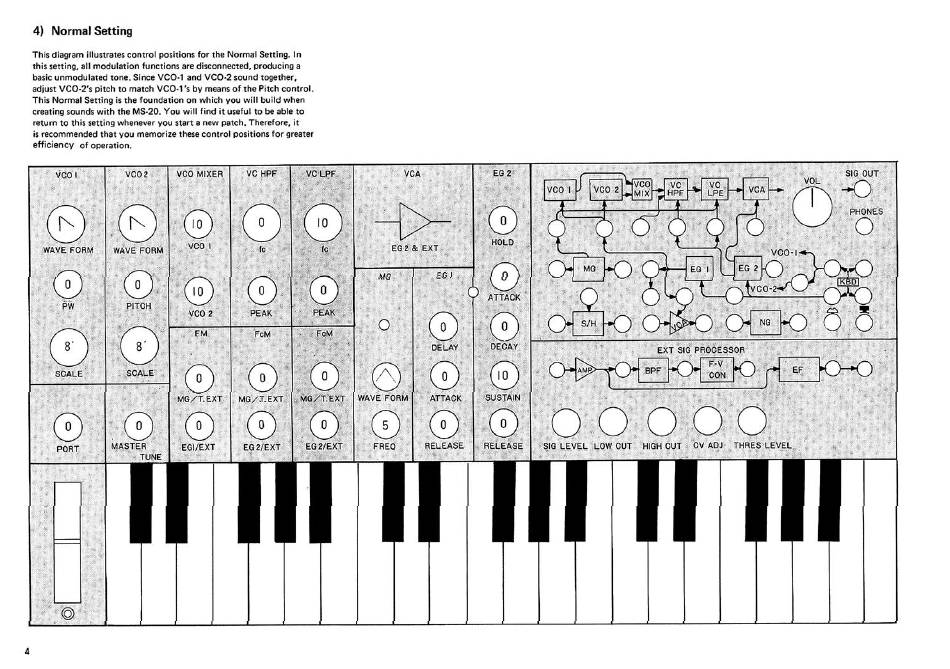

This diagram illustrates control positions for the Normal Setting. In
this setting, all modulation
functions are disconnected, producing a
basic unmodulated
tone. Since VCO-I and VCO.2 sound together,
adjust VCO-2's pitch to match VCO•I 's by means of the Pitch control.
This Normal Setting is the foundation
on which you will build when
creating sounds with the MS.20. You will find it useful to be able to
return to this setting whenever you start a new patch. Therefore, it
is recommended that you memorize these control positions for greater
efficiency
of operation.
