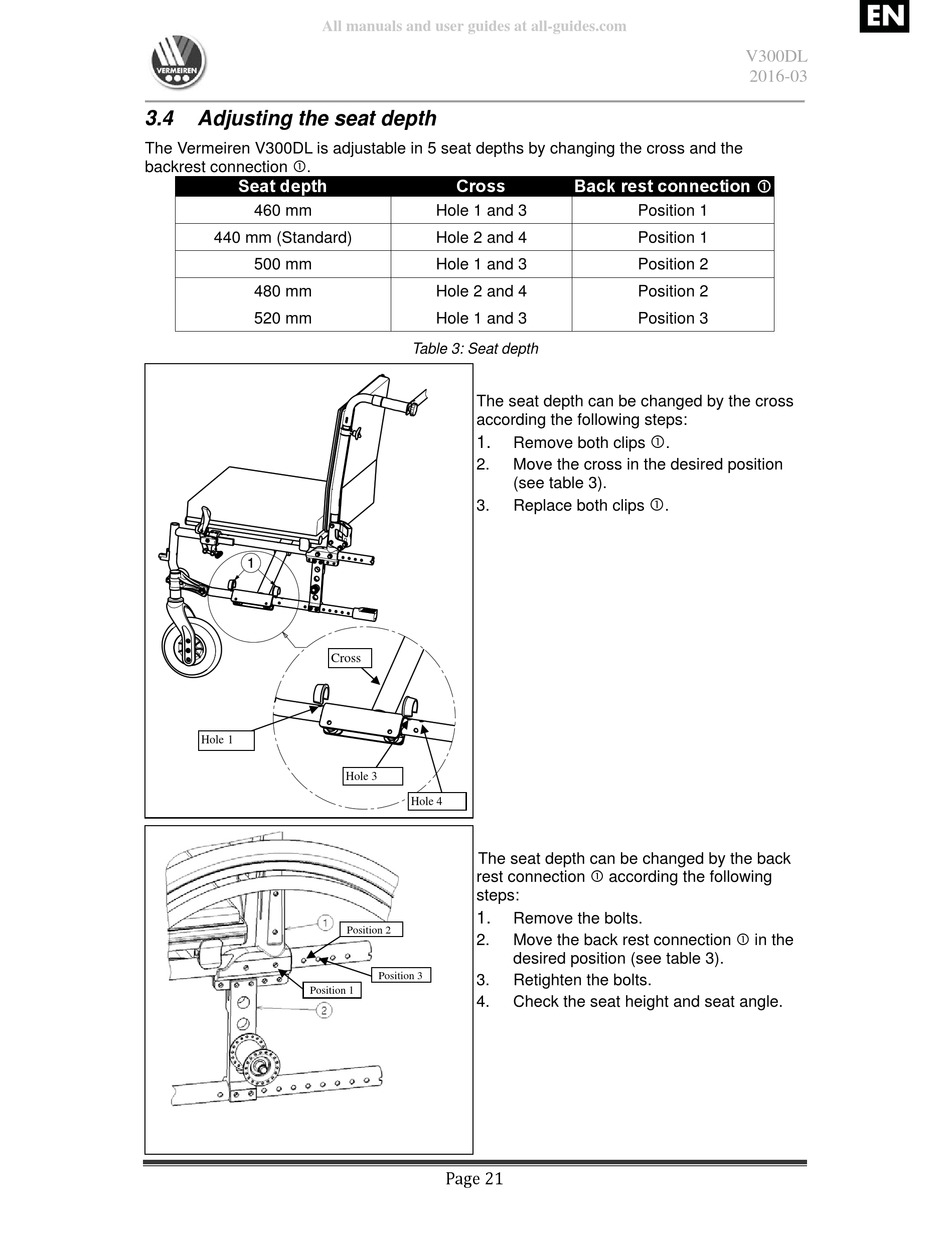

3.4 Adjusting the seat depth
The Vermeiren V300DL is adjustable in 5 seat depths by changing the cross and the
backrest connection .
Seat depth
460 mm
440 mm (Standard)
500 mm
480 mm
520 mm
Hole 1
Position 1
Cross
Hole 1 and 3
Hole 2 and 4
Hole 1 and 3
Hole 2 and 4
Hole 1 and 3
Table 3: Seat depth
The seat depth can be changed by the cross
according the following steps:
1.
2.
3.
Cross
Hole 3
Hole 4
The seat depth can be changed by the back
rest connection  according the following
steps:
1.
Position 2
2.
Position 3
3.
4.
Page 21
Back rest connection 
Position 1
Position 1
Position 2
Position 2
Position 3

Remove both clips .
Move the cross in the desired position
(see table 3).

Replace both clips .
Remove the bolts.
Move the back rest connection  in the
desired position (see table 3).
Retighten the bolts.
Check the seat height and seat angle.
V300DL
2016-03
