10

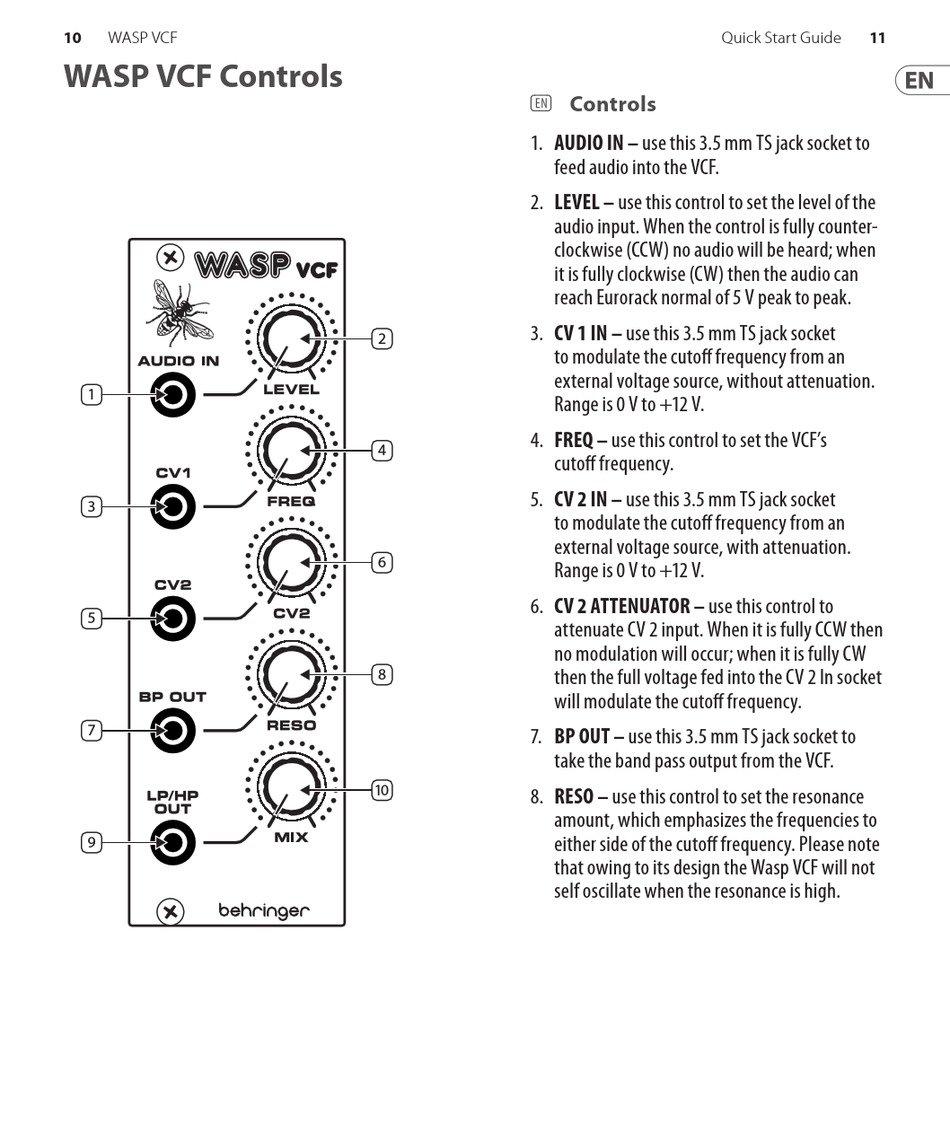

WASP VCF
WASP VCF Controls
1
3
5
7
9
(EN) Controls
1. AUDIO IN – use this 3.5 mm TS jack socket to
2. LEVEL – use this control to set the level of the
3. CV 1 IN – use this 3.5 mm TS jack socket
2
4. FREQ – use this control to set the VCF's
4
5. CV 2 IN – use this 3.5 mm TS jack socket
6
6. CV 2 ATTENUATOR – use this control to
8
7. BP OUT – use this 3.5 mm TS jack socket to
10
8. RESO – use this control to set the resonance
Quick Start Guide
feed audio into the VCF.
audio input. When the control is fully counter-
clockwise (CCW) no audio will be heard; when
it is fully clockwise (CW) then the audio can
reach Eurorack normal of 5 V peak to peak.
to modulate the cutoff frequency from an
external voltage source, without attenuation.
Range is 0 V to +12 V.
cutoff frequency.
to modulate the cutoff frequency from an
external voltage source, with attenuation.
Range is 0 V to +12 V.
attenuate CV 2 input. When it is fully CCW then
no modulation will occur; when it is fully CW
then the full voltage fed into the CV 2 In socket
will modulate the cutoff frequency.
take the band pass output from the VCF.
amount, which emphasizes the frequencies to
either side of the cutoff frequency. Please note
that owing to its design the Wasp VCF will not
self oscillate when the resonance is high.
11
