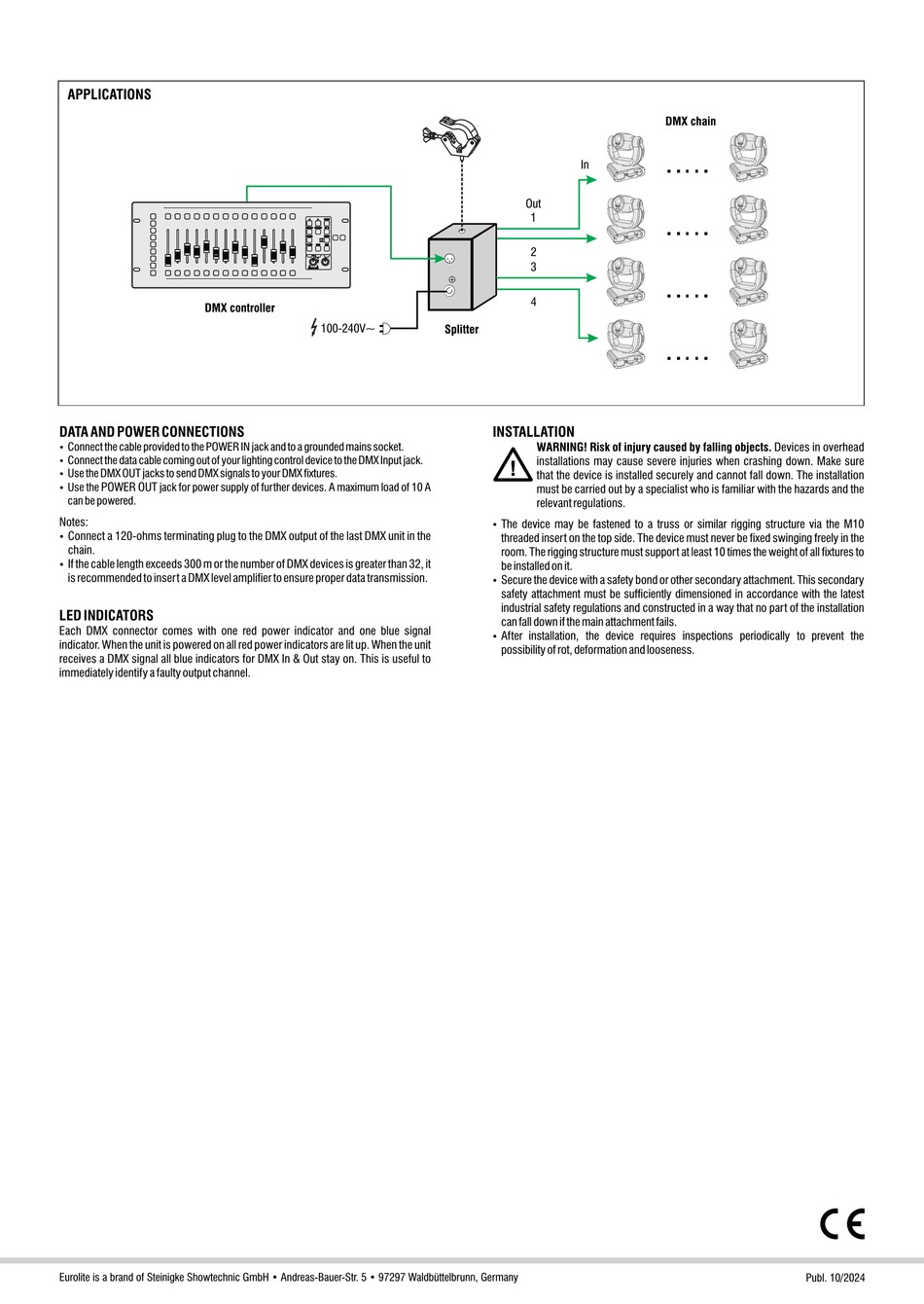

APPLICATIONS
DMX controller
DATA AND POWER CONNECTIONS
Connect the cable provided to the POWER IN jack and to a grounded mains socket.
Ÿ
Connect the data cable coming out of your lighting control device to the DMX Input jack.
Ÿ
Use the DMX OUT jacks to send DMX signals to your DMX fixtures.
Ÿ
Use the POWER OUT jack for power supply of further devices. A maximum load of 10 A
Ÿ
can be powered.
Notes:
Connect a 120
-ohms
terminating plug to the DMX output of the last DMX unit in the
Ÿ
chain.
If the cable length exceeds 300 m or the number of DMX devices is greater than 32, it
Ÿ
is recommended to insert a DMX level amplifier to ensure proper data transmission.
LED INDICATORS
Each DMX connector comes with one
indicator. When the unit is powered on all
receives a DMX signal all
blue
indicators for DMX In & Out stay on. This is useful to
immediately identify a faulty output channel.
Eurolite is a brand of Steinigke Showtechnic GmbH • Andreas-Bauer-Str. 5 • 97297 Waldbüttelbrunn, Germany
100-240V~
red
power indicator and one
blue
signal
red
power indicators are lit up. When the unit
In
Out
1
2
3
4
Splitter
INSTALLATION
WARNING! Risk of injury caused by falling objects. Devices in overhead
installations may cause severe injuries when crashing down. Make sure
that the device is installed securely and cannot fall down. The installation
must be carried out by a specialist who is familiar with the hazards and the
relevant regulations.
The device may be fastened to a truss or similar rigging structure via the M10
Ÿ
threaded insert on the top side. The device must never be fixed swinging freely in the
room. The rigging structure must support at least 10 times the weight of all fixtures to
be installed on it.
Secure the device with a safety bond or other secondary attachment. This secondary
Ÿ
safety attachment must be sufficiently dimensioned in accordance with the latest
industrial safety regulations and constructed in a way that no part of the installation
can fall down if the main attachment fails.
After installation, the device requires inspections periodically to prevent the
Ÿ
possibility of rot, deformation and looseness.
DMX chain
Publ. 10/2024
