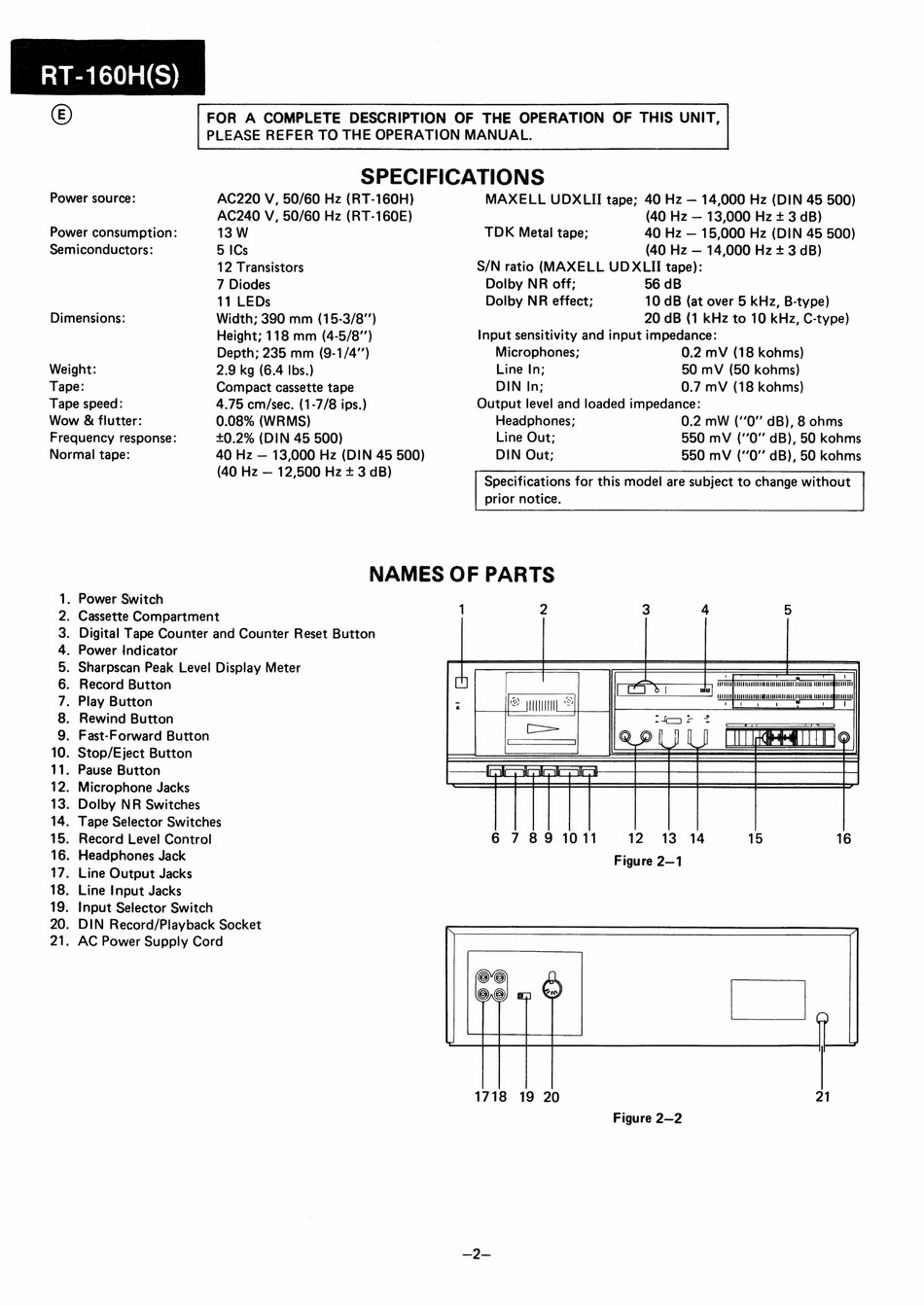

RT-160H(S)
©
SPECIFICATIONS
Power source:
AC220 V, 50/60 Hz (RT-160H)
AC240 V, 50/60 Hz (RT-160E)
-MAXELL UDXLII tape; 40 Hz — 14,000 Hz (DIN 45 500)
(40 Hz — 13,000 Hz + 3 dB)
Power consumption:
13
TDK Metal tape;
40 Hz — 15,000 Hz (DIN 45 500)
Semiconductors:
5 ICs
(40 Hz — 14,000 Hz + 3 dB)
12 Transistors
S/N ratio (MAXELL UD XLII tape):
7 Diodes
Dolby NR off;
56 dB
11 LEDs
Dolby NR effect;
10 dB (at over 5 kHz, B-type)
Dimensions:
Width; 390 mm (15-3/8'')
20 dB (1 kHz to 10 kHz, C-type)
Height; 118 mm (4-5/8')
Input sensitivity and input impedance:
Depth; 235 mm (9-1/4'')
Microphones;
0.2 mV (18 kohms)
Weight:
2.9 kg (6.4 Ibs.)
Line In;
50 mV (50 kohms)
Tape:
Compact cassette tape
DIN In;
0.7 mV (18 kohms)
Tape speed:
4.75 cm/sec. (1-7/8 ips.)
Output level and loaded impedance:
Wow & flutter:
0.08% (WRMS)
Headphones;
0.2 mW (''0" dB), 8 ohms
Frequency response:
+0.2% (DIN 45 500)
Line Out;
550 mV (''0" dB), 50 kohms
Normal tape:
40 Hz — 13,000 Hz (DIN 45 500)
DIN Out;
550 mV ("0'' dB), 50 kohms
eet
AO
ea eae!
Specifications for this model are subject to change without
prior notice.
NAMES OF PARTS
1. Power Switch
2. Cassette Compartment
3. Digital Tape Counter and Counter Reset Button
4. Power Indicator
5. Sharpscan Peak Level Display Meter
—}—
6.
Record
Button
|
—
TTT =
7.
Play
Button
'een
ane
oie
8. Rewind Button
9. Fast-Forward Button
Tee
TT ©
10. Stop/Eject Button
——S
11. Pause Button
12. Microphone Jacks
13. Dolby NR Switches
14. Tape Selector Switches
15. Record Level Control
6 7 89
1011
12
13
14
15
16
16. Headphones Jack
Figure 2—1
17. Line Output Jacks
18. Line Input Jacks
19. Input Selector Switch
20. DIN Record/Playback Socket
21. AC Power Supply Cord
1718
19 20
Figure 2—2
