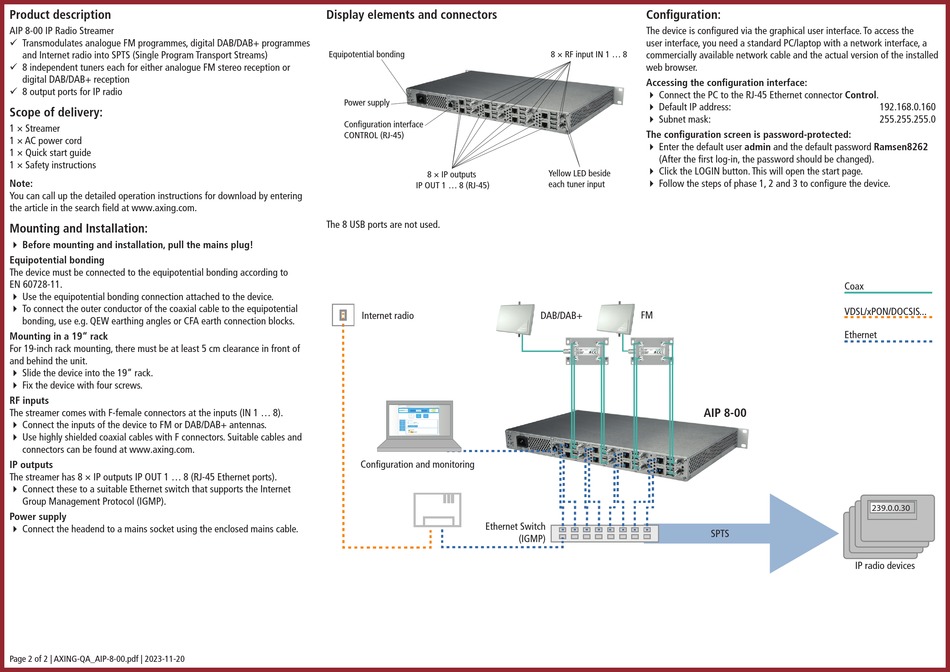

Product description
AIP 8-00 IP Radio Streamer
9 Transmodulates analogue FM programmes, digital DAB/DAB+ programmes
and Internet radio into SPTS (Single Program Transport Streams)
9 8 independent tuners each for either analogue FM stereo reception or
digital DAB/DAB+ reception
9 8 output ports for IP radio
Scope of delivery:
1 × Streamer
1 × AC power cord
1 × Quick start guide
1 × Safety instructions
Note:
You can call up the detailed operation instructions for download by entering
the article in the search field at www.axing.com.
Mounting and Installation:
 Before mounting and installation, pull the mains plug!
Equipotential bonding
The device must be connected to the equipotential bonding according to
EN 60728-11.
 Use the equipotential bonding connection attached to the device.
 To connect the outer conductor of the coaxial cable to the equipotential
bonding, use e.g. QEW earthing angles or CFA earth connection blocks.
Mounting in a 19" rack
For 19-inch rack mounting, there must be at least 5 cm clearance in front of
and behind the unit.
 Slide the device into the 19" rack.
 Fix the device with four screws.
RF inputs
The streamer comes with F-female connectors at the inputs (IN 1 ... 8).
 Connect the inputs of the device to FM or DAB/DAB+ antennas.
 Use highly shielded coaxial cables with F connectors. Suitable cables and
connectors can be found at www.axing.com.
IP outputs
The streamer has 8 × IP outputs IP OUT 1 ... 8 (RJ-45 Ethernet ports).
 Connect these to a suitable Ethernet switch that supports the Internet
Group Management Protocol (IGMP).
Power supply
 Connect the headend to a mains socket using the enclosed mains cable.
Page 2 of 2 | AXING-QA_AIP-8-00.pdf | 2023-11-20
Display elements and connectors
Equipotential bonding
Power supply
Configuration interface
CONTROL (RJ-45)
8 × IP outputs
IP OUT 1 ... 8 (RJ-45)
The 8 USB ports are not used.
Internet radio
Configuration and monitoring
Ethernet Switch
Configuration:
The device is configured via the graphical user interface. To access the
user interface, you need a standard PC/laptop with a network interface, a
8 × RF input IN 1 ... 8
commercially available network cable and the actual version of the installed
web browser.
Accessing the configuration interface:
 Connect the PC to the RJ-45 Ethernet connector Control.
 Default IP address:
 Subnet mask:
The configuration screen is password-protected:
 Enter the default user admin and the default password Ramsen8262
(After the first log-in, the password should be changed).
 Click the LOGIN button. This will open the start page.
Yellow LED beside
 Follow the steps of phase 1, 2 and 3 to configure the device.
each tuner input
DAB/DAB+
FM
(IGMP)
192.168.0.160
255.255.255.0
Coax
VDSL/xPON/DOCSIS...
Ethernet
AIP 8-00
239.0.0.30
nova
nova
nova
SPTS
IP radio devices
