Respekta CH 0150 IXB Bedienungs- & Installationsanleitung Seite 31

English Installation- & User's Instruction
B7
B5
B3
B8
B6
B4
B9

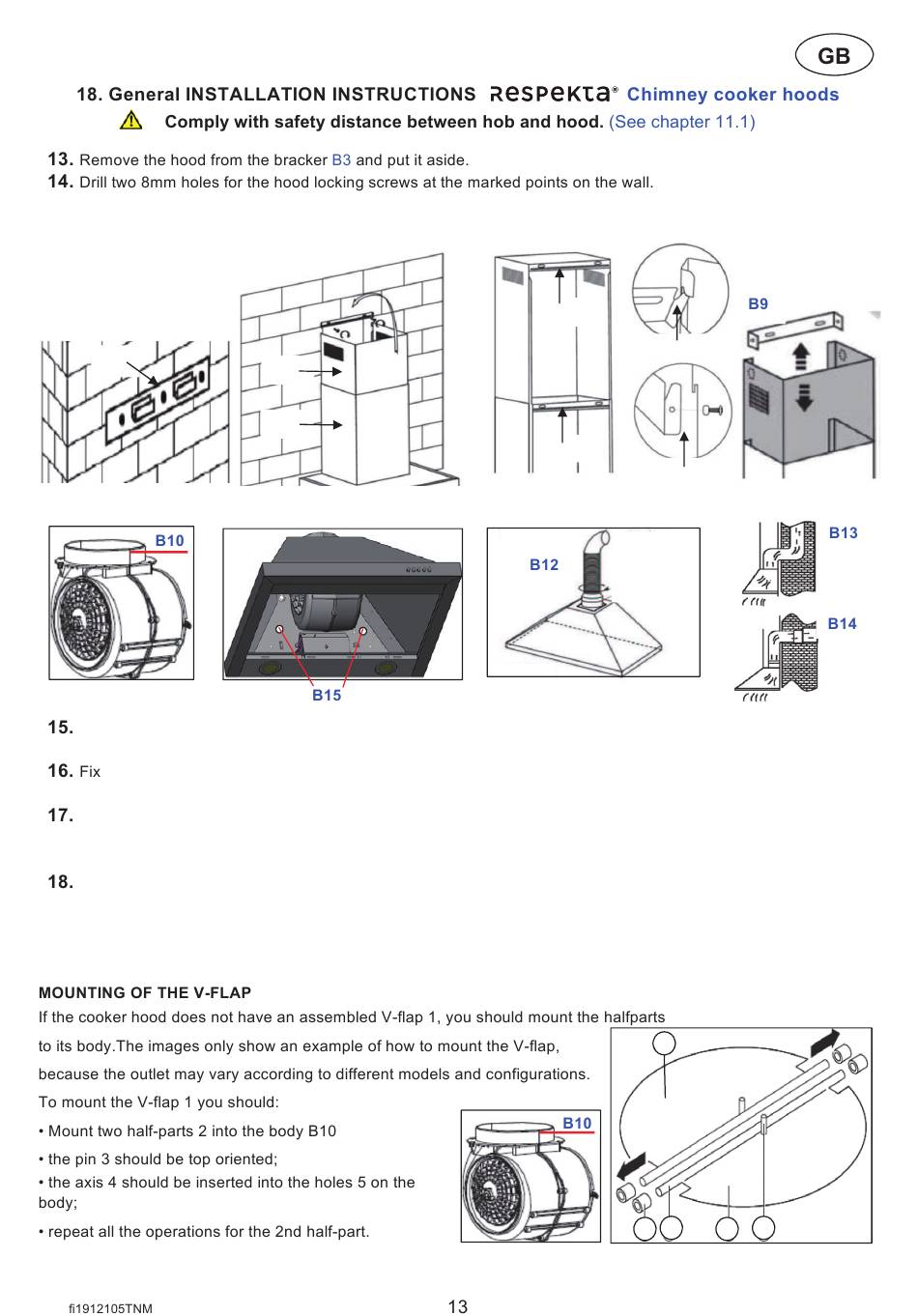

Hang the cooker hood on the suspension plate B3 again and secure it well by fixing the screws
through the 2 holes B15 on the wall, so that the hood can not accidentally be removed from the wall.
the exhaust hose B12 on the nozzle 10 and to its final position at the other end of the hose
according to B13 or B14.
Slide the chimney shafts B6 & B8 one inside the other and put them on the cooker hood. Then check
carefully, that the external (lower) chimney shaft hangs on the mounting bracket B4 as described in
picture B5.
Slide the internal chimney shaft B8 up and fix it on the mounting bracket B7 with 2 screws as
described in picture B9.
Depending on the specific situation the assembly procedure might proceed differently.
2
4 3
5 1
Some Figures are for illustration purposes only
