Adjusting the
sensor
1
2
3
Attention! When screwing or unscrewing the shoe (1) to/from the sensor (2), en-
sure that the sensor cable is not twisted.
26

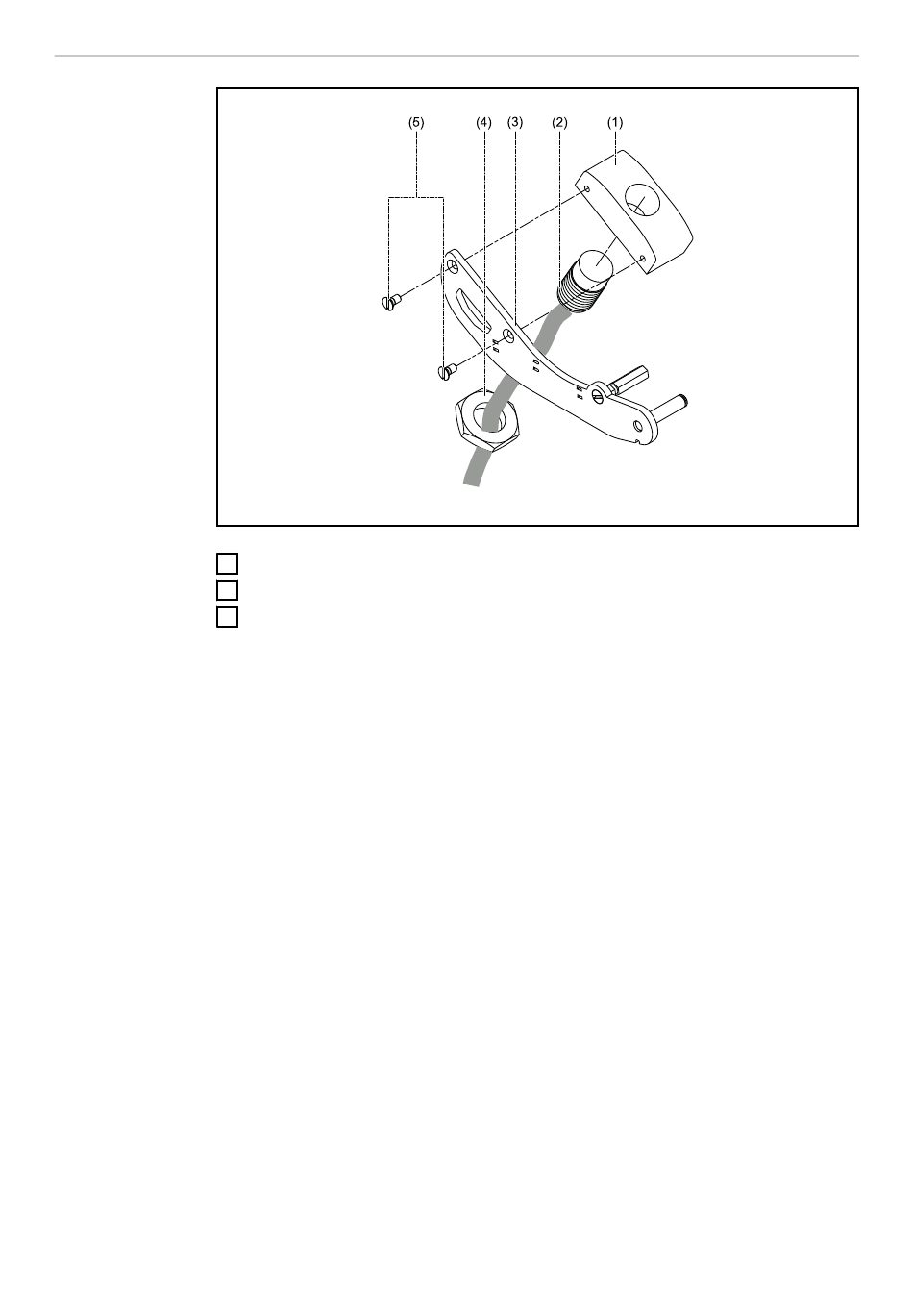

Lift the retaining arm (3) and sensor unit off the wirespool and lock in place
Undo screws (5) and take the shoe (1) and sensor (2) off the retaining arm (3)
Undo nut (4)
