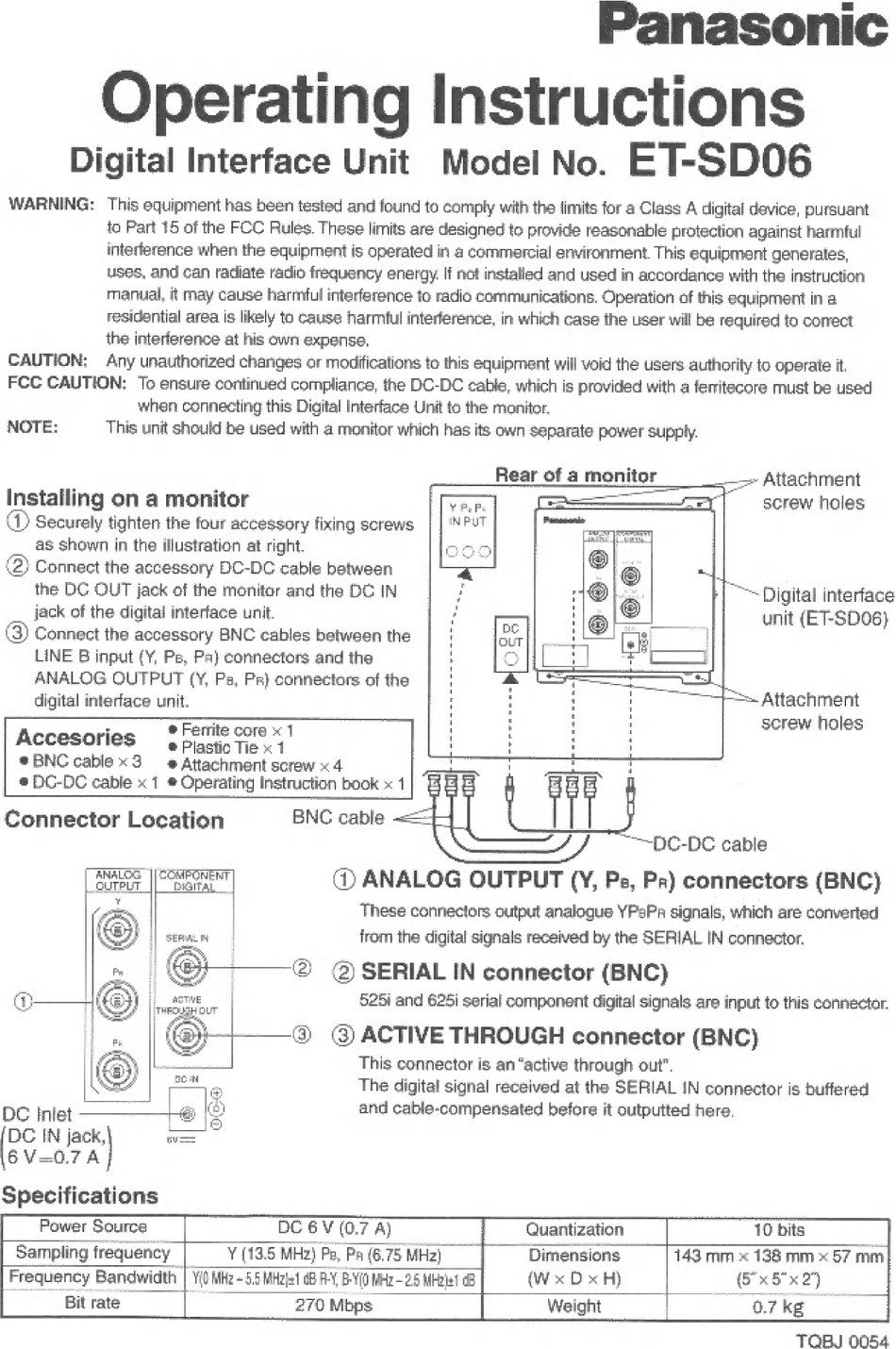

Panasonic
Operating Instructions
Digital Interface Unit Model No. ET-SD06
when connecting this Digital Interface Unit to the monitor.
Rear of a monitor
—
=>
Attachment
|
screw holes
Installing on a monitor
Securely tighten the four accessory fixing screws
as shown in the illustration at right.
Connect the accessory DC-DC cable between
the DG OUT jack of the monitor and the DC IN
jack of the digital interface unit.
Connect the accessory BNC cables between the
LINE B input (Y, Pe, Pa) connectors and the
ANALOG OUTPUT (Y, Pa, Pr} connectors of the
digital interface unit.
~ Digital interface
unit (ET-SD06)
(3)
19)
— Attachment
e DC-DG cable x 1 # Operating Instruction book x 1
Connector Location
BNC cable <=
DC-DC
cable
1) ANALOG OUTPUT (Y, Ps, Pr) connectors (BNC)
These connectors output analogue YPsPr signals, which are converted
from the digital signals received by the SERIAL IN connector.
(2) SERIAL IN connector (BNC)
525i and 625i serial component digital signals are input to this connector.
@ ACTIVE THROUGH connector (BNC)
This connector is an "active through out".
aT
IS à
Der ,
The digital signal received at the SERIAL IN connector is buffered
T
Lal
and cable-compensated before it outputted here,
DC Inlet ————8
lè
DC
IN jack,
n=
6V=0.7 A
Specifications
Power Source
|
DC 6V (0.7 A)
Quantization
10 bits
Sampling frequency
Y (13.5 MHz) Pe, Pa (6.75 MHz)
|
Dimensions
143 mm x 138 mm x 57 mm
TOBJ 0054
