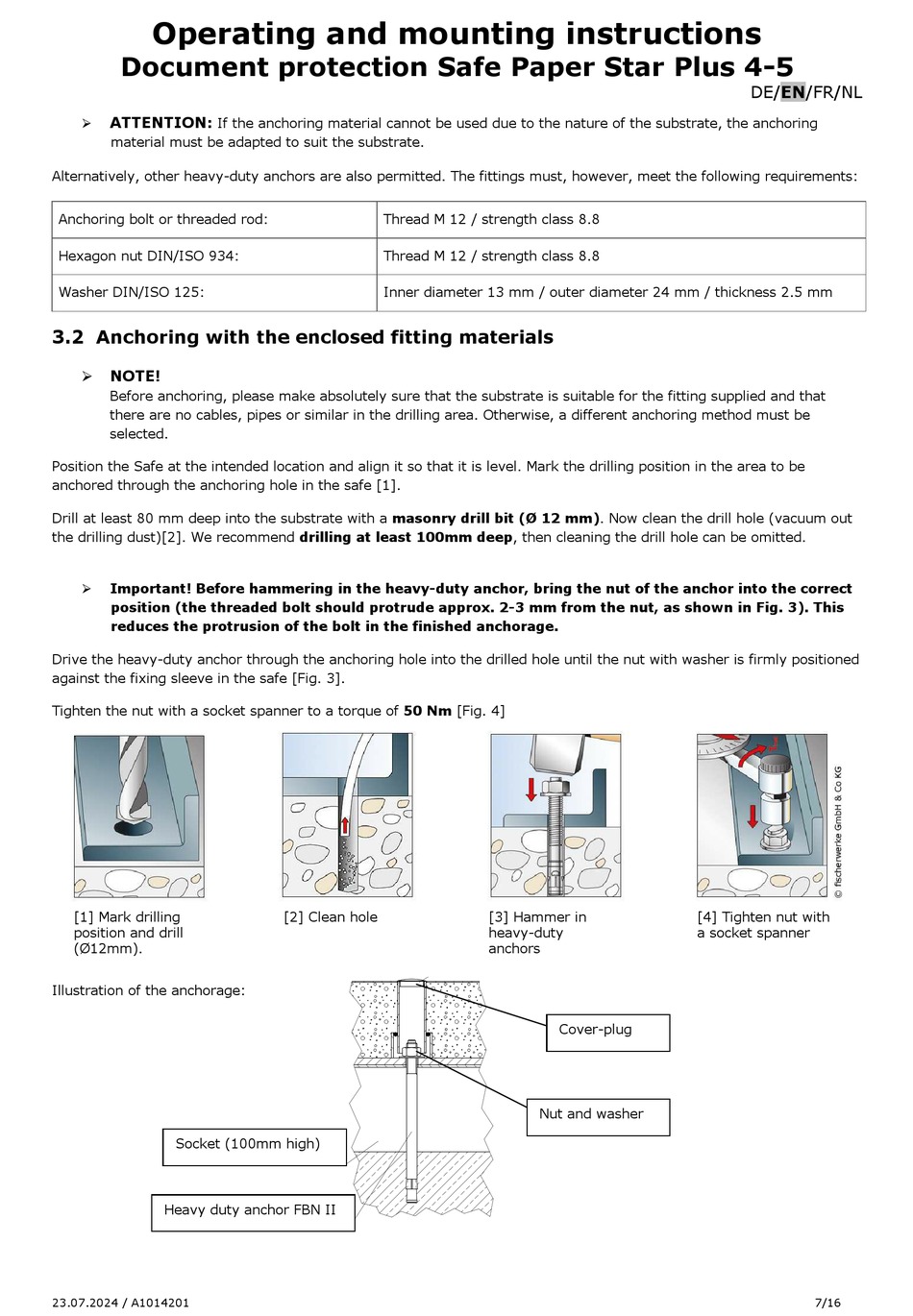

Operating and mounting instructions
Document protection Safe Paper Star Plus 4-5
ATTENTION:
If the anchoring material cannot be used due to the nature of the substrate, the anchoring
material must be adapted to suit the substrate.
Alternatively, other heavy-duty anchors are also permitted. The fittings must, however, meet the following requirements:
Anchoring bolt or threaded rod:
Hexagon nut DIN/ISO 934:
Washer DIN/ISO 125:
3.2 Anchoring with the enclosed fitting materials
NOTE!
Before anchoring, please make absolutely sure that the substrate is suitable for the fitting supplied and that
there are no cables, pipes or similar in the drilling area. Otherwise, a different anchoring method must be
selected.
Position the Safe at the intended location and align it so that it is level. Mark the drilling position in the area to be
anchored through the anchoring hole in the safe [1].
Drill at least 80 mm deep into the substrate with a masonry drill bit (Ø 12 mm). Now clean the drill hole (vacuum out
the drilling dust)[2]. We recommend drilling at least 100mm deep, then cleaning the drill hole can be omitted.
Important! Before hammering in the heavy-duty anchor, bring the nut of the anchor into the correct
position (the threaded bolt should protrude approx. 2-3 mm from the nut, as shown in Fig. 3). This
reduces the protrusion of the bolt in the finished anchorage.
Drive the heavy-duty anchor through the anchoring hole into the drilled hole until the nut with washer is firmly positioned
against the fixing sleeve in the safe [Fig. 3].
Tighten the nut with a socket spanner to a torque of 50 Nm [Fig. 4]
[1] Mark drilling
position and drill
(Ø12mm).
Illustration of the anchorage:
Socket (100mm high)
Heavy duty anchor FBN II
23.07.2024 / A1014201
Thread M 12 / strength class 8.8
Thread M 12 / strength class 8.8
Inner diameter 13 mm / outer diameter 24 mm / thickness 2.5 mm
[2] Clean hole
[3] Hammer in
heavy-duty
anchors
Cover-plug
Nut and washer
DE/EN/FR/NL
[4] Tighten nut with
a socket spanner
