The following water vlaues must be observed with respect to the heat exchanger.
Chloride content
take care
Free chlorine
ph value
maximum water pressure, primary side
maximum water pressure, secondary side
Important!
During operation of the heating cycle, draining of the heat exchanger on the
bathwater side must be prevented.
3.4

Installation

Check the heat exchanger before installation for visible damage.
The heat exchanger can be installed horizontally or vertically above or below water
level.
3.4.1

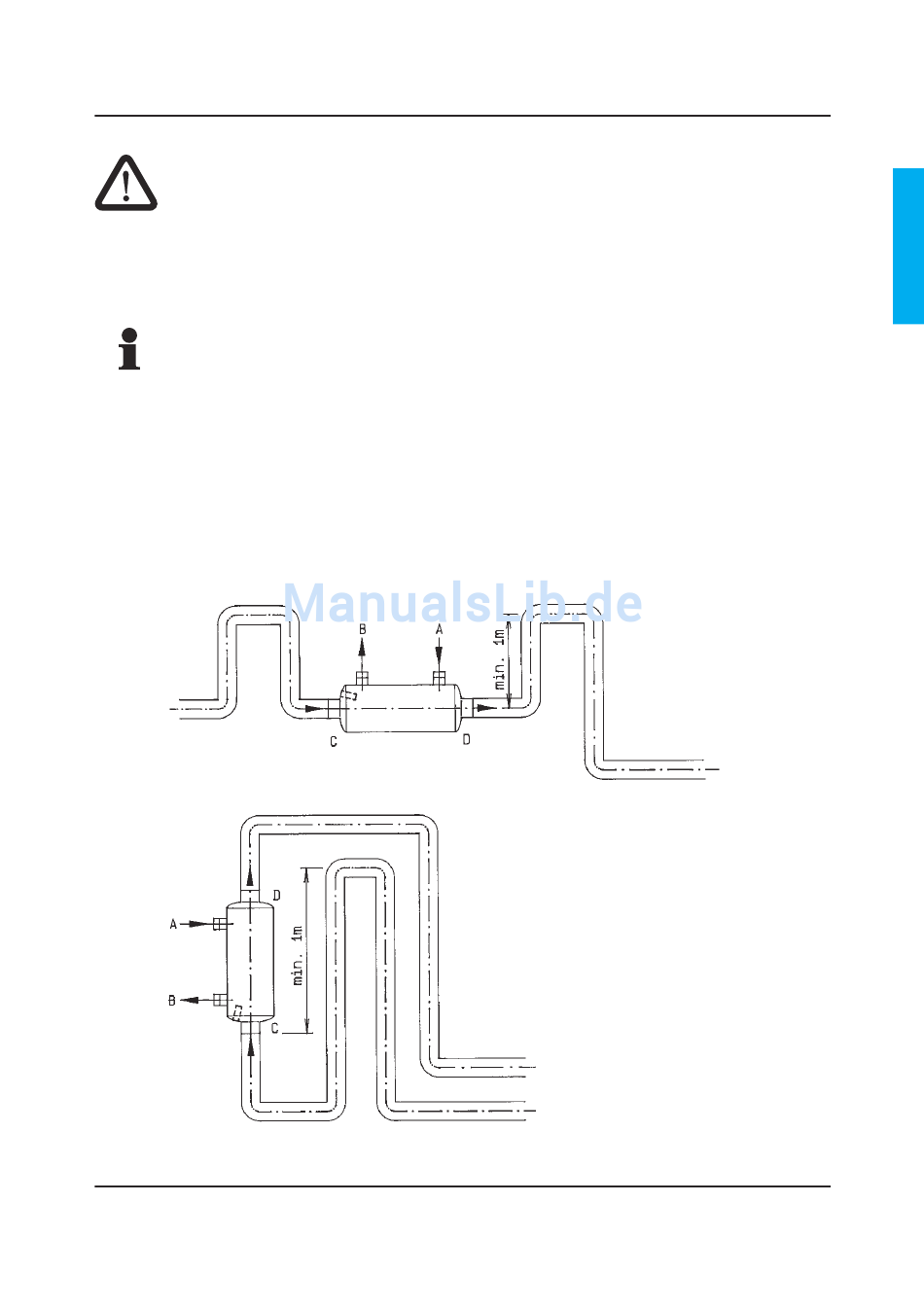

Installation Layout Above the Water Level

Figure: horizontal installation
QWT, SWT
max. to 500 mg/l
max. to 1,3 mg/l
6,8 to 8,2
Figure: vertical installation
Set-up / Installation
WTI
max. 3000 mg/l
unlimited
6,8 to 8,2
10 bar
3 bar
