Set-up / Installation
Article
QWT 100-140
QWT 100-209
WTI 100-20 bis -104
Article
WTI 100-20
WTI 100-30
WTI 100-40
WTI 100-70
WTI 100-104
3.3

Set-up

Set up the heat exchanger in frost-proof and dry rooms with non-aggressive
atmosphere only. Dripping water might damage the heat exchanger.
Ensure easy access for installation and removal purposes.
The heat exchanger can be installed above and below the water level.

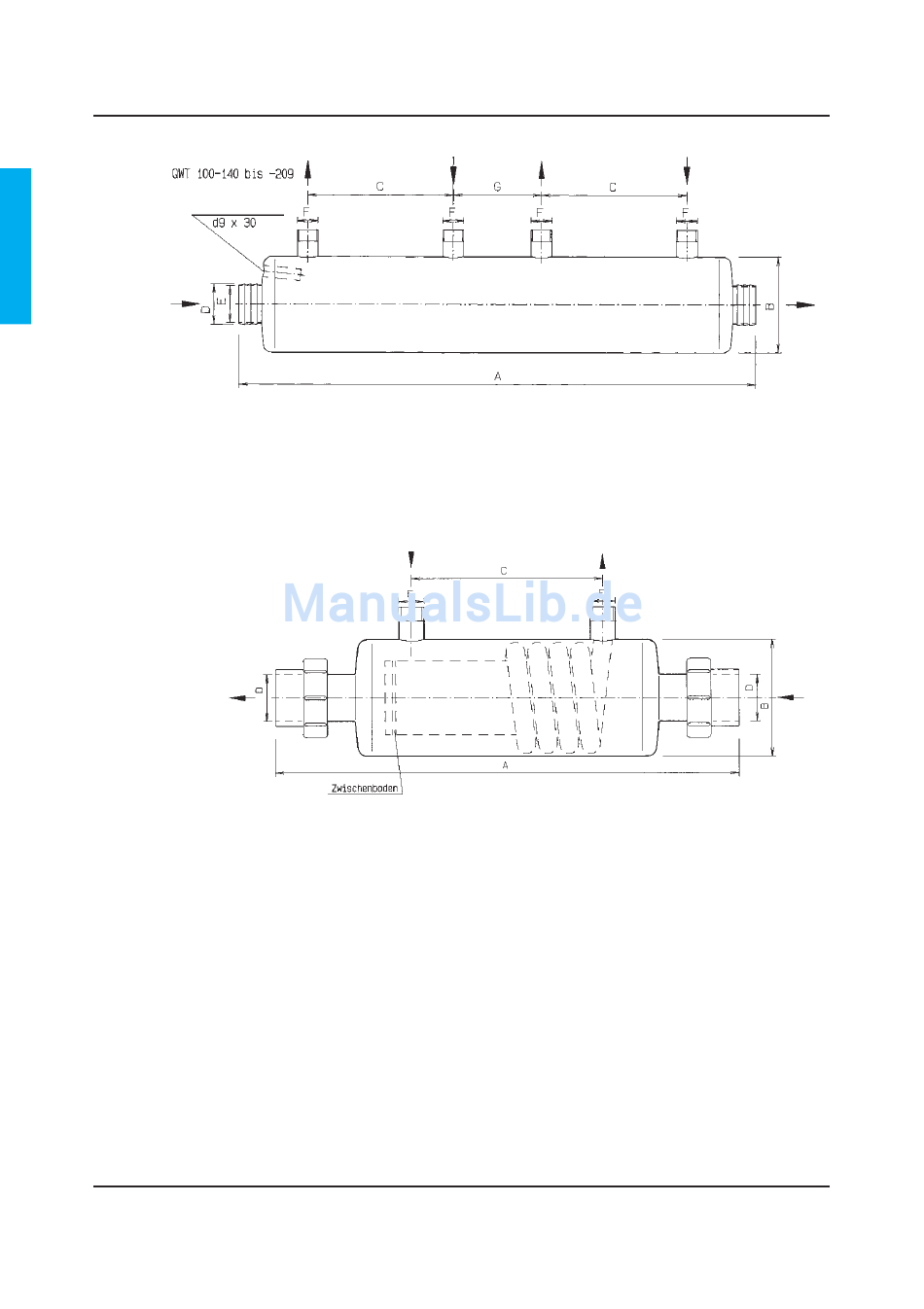

22
A B
mm mm Ø
920 190
1190 190
A B
mm mm Ø
395 125
440 125
505 125
640 190
820 190
C D
mm NW
295 60
430 60
C D
mm NW
90 PVC DN40
135 PVC DN40
205 PVC DN40
290 PVC DN40
425 PVC DN50
E F
Inches Inches
2 1
2 1
F
Inches
3 /
4
3 /
4
3 /
4
1"
1"
