3 Adjustment

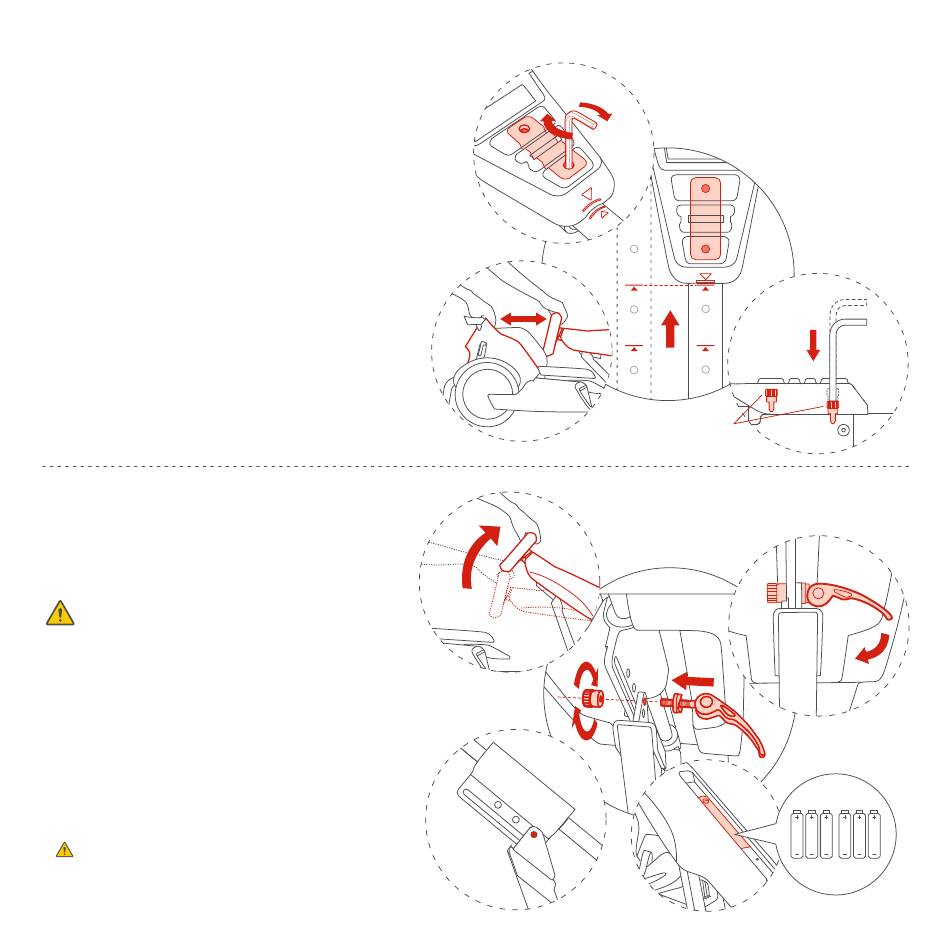

Stretch the frame and adjust the length
of the body
a
With both hands holding the steering wheel and
the seat, stretch the frame out to a suitable
position along the horizontal direction of the
connection tube.
b
Align the scalable structure of the frame with the
marking on the connection tube.
c
Positioning: Use the short hex wrench to press the
two screws into the holes on the left and right
connection tube in order, as shown in the figure
(The screw is set to a depth of about 1 cm for
successful
position).
d
Tighten the 4 screws.
Adjust the steering wheel height
Remove the speaker before adjusting the
height of the steering wheel (see page 11).
a
Raise the steering wheel to a suitable height.
b
Insert the quick-release screw into the hole of
the corresponding height.
(See Accessory No. 1)
c
Tighten the quick-release nut.
d
Press to fix the steering wheel quick-release
components.
e
Ensure the steering wheel is not loose.
Otherwise, repeat the steps b, c, d, e.
f
Install the Gokart batteries.
To avoid issues that may be caused by
corrosion, remove the batteries if not using the
Gokart for an extended period of time.
a
Four screws are already
inserted into the screw holes.
a
a
c
b
d
b
c
b
f
d
10
