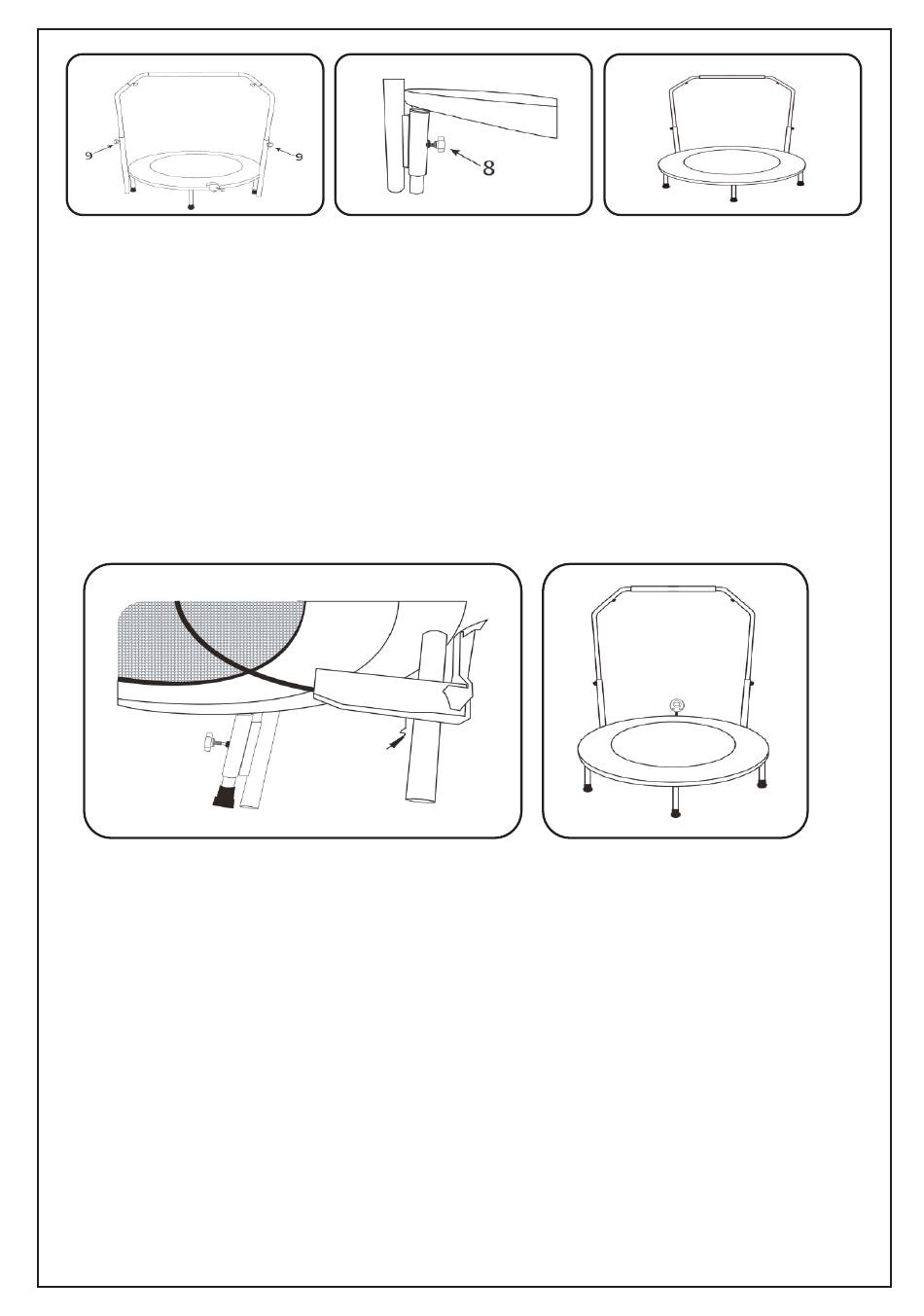

Fig. 9
Step 5:
Remove the silent foot pad and insert it into the lower armrest upright (Figure 6).
Then put the silent foot pad back into the foot tube (Figure 7).
Step 6:
Connect the armrest adjustment rods together with 10# screws (Figure 8).
After the connection is completed, insert it into the lower handrail and fix it with
9# screws (Figure 9)
Step 7:
Tighten the armrest lower pole and leg tube with 10# screws (Figure 10), and the
installation is complete (Figure 11)
Step 8:
Slide the sensor bracket over the foot of the bed. When the sensor touches the
trampoline (Figure 12), it should be in horizontal contact with the jumping cloth.
Tighten the triangular screws on the sensor bracket (Figure 12). Insert the computer
into the sensor holder. Plug the cable into the computer. Installation is complete
(Figure 13).
Ensure all steps are followed when installing this product to avoid damage.
Fig. 10
Fig. 12
8
Fig. 11
Fig. 13
