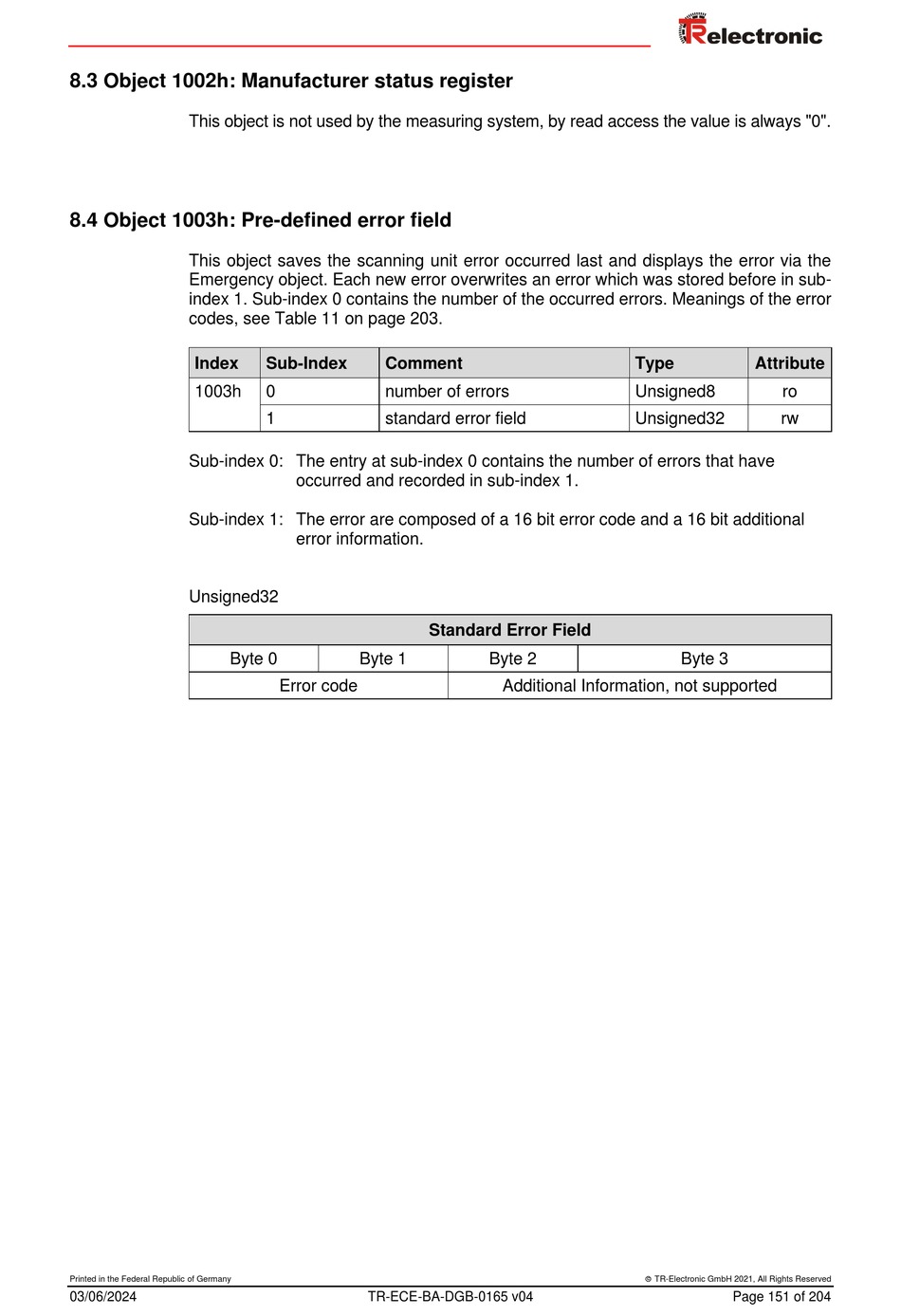

8.3 Object 1002h: Manufacturer status register
This object is not used by the measuring system, by read access the value is always "0".
8.4 Object 1003h: Pre-defined error field
This object saves the scanning unit error occurred last and displays the error via the
Emergency object. Each new error overwrites an error which was stored before in sub-
index 1. Sub-index 0 contains the number of the occurred errors. Meanings of the error
codes, see Table 11 on page 203.
Index
1003h
Sub-index 0: The entry at sub-index 0 contains the number of errors that have
Sub-index 1: The error are composed of a 16 bit error code and a 16 bit additional
Unsigned32
Byte 0
Printed in the Federal Republic of Germany
03/06/2024
Sub-Index Comment
0 number of errors
1 standard error field
occurred and recorded in sub-index 1.
error information.
Standard Error Field
Byte 1
Error code
TR-ECE-BA-DGB-0165 v04
Type
Unsigned8
Unsigned32
Byte 2
Additional Information, not supported
 TR-Electronic GmbH 2021, All Rights Reserved
Attribute
ro
rw
Byte 3
