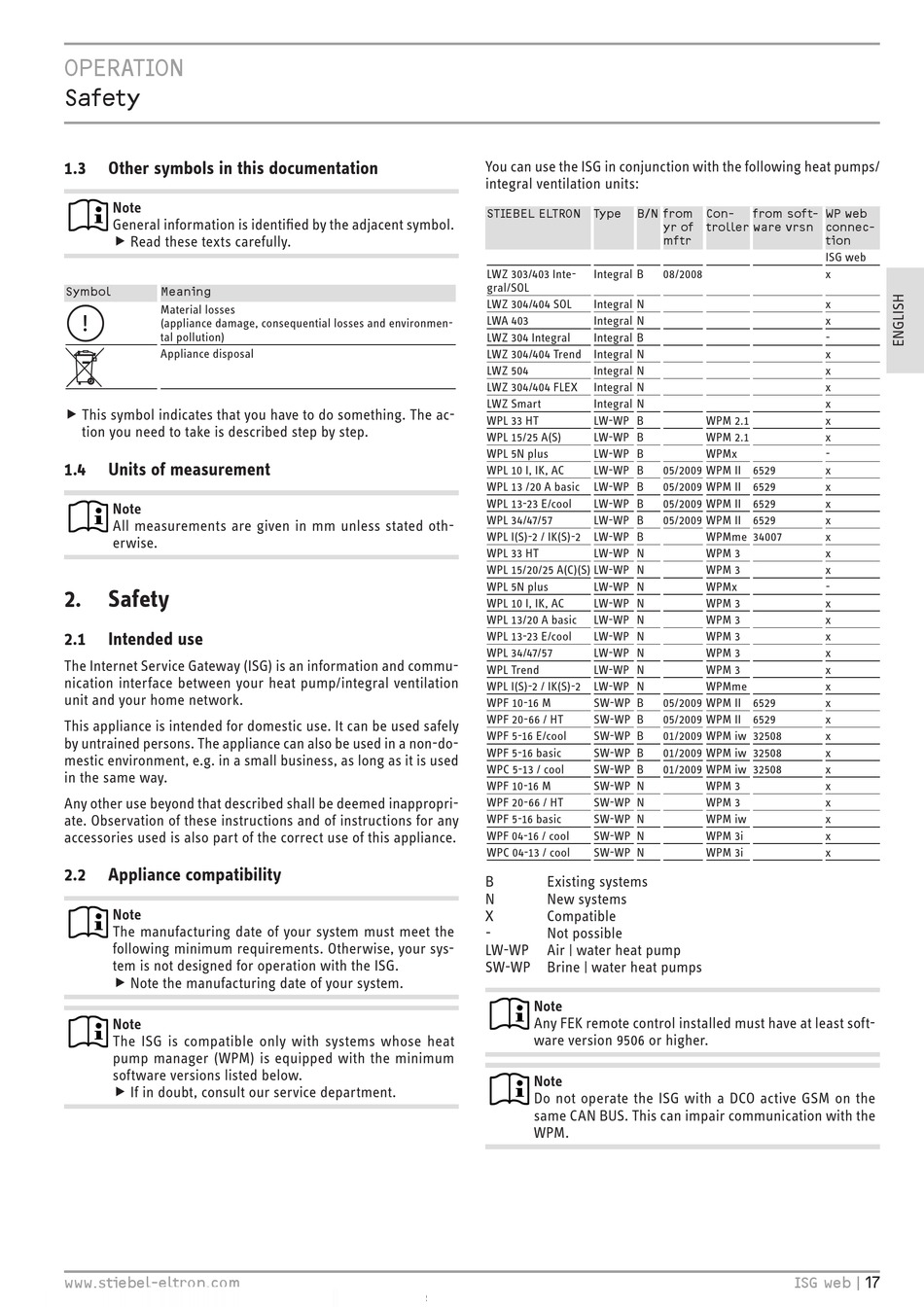

OPeRATION

Safety

1.3

Other symbols in this documentation

Note
General information is identified by the adjacent symbol.
f Read these texts carefully. f
Symbol Meaning
Material losses
!
(appliance damage, consequential losses and environmen-
tal pollution)
Appliance disposal
f This symbol indicates that you have to do something. The ac- f
tion you need to take is described step by step.
1.4

Units of measurement

Note
All measurements are given in mm unless stated oth-
erwise.
2. Safety
2.1

Intended use

The Internet Service Gateway (ISG) is an information and commu-
nication interface between your heat pump/integral ventilation
unit and your home network.
This appliance is intended for domestic use. It can be used safely
by untrained persons. The appliance can also be used in a non-do-
mestic environment, e.g. in a small business, as long as it is used
in the same way.
Any other use beyond that described shall be deemed inappropri-
ate. Observation of these instructions and of instructions for any
accessories used is also part of the correct use of this appliance.
2.2

Appliance compatibility

Note
The manufacturing date of your system must meet the
following minimum requirements. Otherwise, your sys-
tem is not designed for operation with the ISG.
f Note the manufacturing date of your system. f
Note
The ISG is compatible only with systems whose heat
pump manager (WPM) is equipped with the minimum
software versions listed below.
f If in doubt, consult our service department. f
www.stiebel-eltron.com
You can use the ISG in conjunction with the following heat pumps/
integral ventilation units:
STIeBeL eLTRON Type B/N from
LWZ 303/403 Inte- Integral B
gral/SOL
LWZ 304/404 SOL Integral N
LWA 403 Integral N
LWZ 304 Integral Integral B
LWZ 304/404 Trend Integral N
LWZ 504 Integral N
LWZ 304/404 FLEX Integral N
LWZ Smart Integral N
WPL 33 HT LW-WP B
WPL 15/25 A(S) LW-WP B
WPL 5N plus LW-WP B
WPL 10 I, IK, AC LW-WP B
WPL 13 /20 A basic LW-WP B
WPL 13-23 E/cool LW-WP B
WPL 34/47/57 LW-WP B
WPL I(S)-2 / IK(S)-2 LW-WP B
WPL 33 HT LW-WP N
WPL 15/20/25 A(C)(S) LW-WP N
WPL 5N plus LW-WP N
WPL 10 I, IK, AC LW-WP N
WPL 13/20 A basic LW-WP N
WPL 13-23 E/cool LW-WP N
WPL 34/47/57 LW-WP N
WPL Trend LW-WP N
WPL I(S)-2 / IK(S)-2 LW-WP N
WPF 10-16 M SW-WP B
WPF 20-66 / HT SW-WP B
WPF 5-16 E/cool SW-WP B
WPF 5-16 basic SW-WP B
WPC 5-13 / cool SW-WP B
WPF 10-16 M SW-WP N
WPF 20-66 / HT SW-WP N
WPF 5-16 basic SW-WP N
WPF 04-16 / cool SW-WP N
WPC 04-13 / cool SW-WP N
B Existing systems
N New systems
X Compatible
- Not possible
LW-WP Air | water heat pump
SW-WP Brine | water heat pumps
Note
Any FEK remote control installed must have at least soft-
ware version 9506 or higher.
Note
Do not operate the ISG with a DCO active GSM on the
same CAN BUS. This can impair communication with the
WPM.
Con- from soft- WP web
yr of troller ware vrsn connec-
mftr tion
ISG web
08/2008 x
x
x
-
x
x
x
x
WPM 2.1 x
WPM 2.1 x
WPMx -
05/2009 WPM II 6529 x
05/2009 WPM II 6529 x
05/2009 WPM II 6529 x
05/2009 WPM II 6529 x
WPMme 34007 x
WPM 3 x
WPM 3 x
WPMx -
WPM 3 x
WPM 3 x
WPM 3 x
WPM 3 x
WPM 3 x
WPMme x
05/2009 WPM II 6529 x
05/2009 WPM II 6529 x
01/2009 WPM iw 32508 x
01/2009 WPM iw 32508 x
01/2009 WPM iw 32508 x
WPM 3 x
WPM 3 x
WPM iw x
WPM 3i x
WPM 3i x
ISG web | 17
