Seite 1

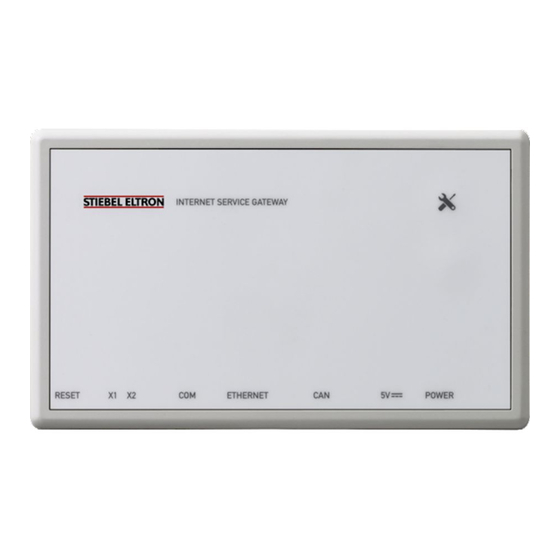

Bedienung und installation operation and installation utilisation et installation Bediening en installatie uso e installazione Käyttö ja asennus oBsluha a instalace internet service gateway » isg WeB...
SIGnalWORt Bedeutung GEFAHR Hinweise, deren Nichtbeachtung schwere Verletzungen oder Tod zur Folge haben. WARNUNG Hinweise, deren Nichtbeachtung schwere Verletzungen oder Tod zur Folge haben kann. VORSICHT Hinweise, deren Nichtbeachtung zu mittelschweren oder leichten Verletzungen führen kann. | ISG WEB www.stiebel-eltron.com...
CAN-BUS. Dies kann die Kommunikation zum Das Herstelldatum der Anlage ist entscheidend für eine WPM beeinträchtigen. Aussage zur Gerätekompatibilität. Entspricht das Herstelldatum nicht den nachfolgend auf- geführten Mindestvorgaben, ist Ihre Anlage nicht für den Betrieb mit dem Gerät geeignet. www.stiebel-eltron.com ISG WEB |...
Siehe Typenschild am Gerät. Wenn Sie Fragen zu Ihren Daten, deren Korrektur oder Löschung gerätebeschreibung haben, kontaktieren Sie uns unter: STIEBEL ELTRON GmbH & Co. KG Mit dem Gerät können Sie Ihre Wärmepumpe oder Ihr Lüftungs- Datenschutzbeauftragter gerät online überwachen und fernsteuern.
Unter Windows 7 wird das Gerät im „Windows-Explorer“ unter Standard-Benutzername: user „Netzwerk“ angezeigt. Standard-Passwort: pass Bei anderen Betriebssystemen rufen Sie die SERVICEWELT direkt im Internet-Browser auf. windows 7 f Rufen Sie die Bedienoberfläche der SERVICEWELT durch Dop- pelklick auf „STE Internet Service Gateway“ auf. www.stiebel-eltron.com ISG WEB |...
Seite 6
BEdIEnunG Bedienung 1 Menü 2 Betriebsart 3 Schnellzugriff 4 Diagrammfläche 5 Diagrammauswahl | ISG WEB www.stiebel-eltron.com...
- oder per E-Mail an servicewelt@stiebel-eltron.de 4.3.2 Betriebsart Mittig auf der Startseite wird die Betriebsart, mit der Ihr Heizungs- Hinweis oder Lüftungsgerät aktuell arbeitet, angezeigt. Bei Problemen, die die IT- Netzwerkstruktur vor Ort be- treffen, ziehen Sie einen IT Fachmann zurate. www.stiebel-eltron.com ISG WEB |...
Gerät wird an die Schnittstelle für das zweite Bedienteil angeschlossen. Sachschaden Beachten Sie die Einsatzgrenzen im Kapitel „Technische Daten“. Der Montageort muss trocken und frostgeschützt sein. wandmontage Bringen Sie das Gerät an einer geeigneten Wand an: | ISG WEB www.stiebel-eltron.com...
Schließen Sie das Gerät mit dem im Lieferumfang enthaltenen In Ihrem Router sollten DHCP und UPnP aktiviert sein, um eine Netzteil an das Stromnetz an. automatische Adressvergabe des Gerätes zu ermöglichen. Hinweis Die COM-Schnittstelle dient ausschließlich zu Service- Zwecken. www.stiebel-eltron.com ISG WEB |...
Ziehen Sie das vom Gerät zum Router führende Crosskabel aus dem Router heraus. f Stecken Sie das Crosskabel in einen Netzwerkanschluss des Computers. 1 Menü „Profil“ f Klicken Sie auf das Menü „Profil“ um zu den Netzwerkein- stellungen zu gelangen. | ISG WEB www.stiebel-eltron.com...
Seite 11
Return-Taste. Die Bedienoberfläche der SERVICEWELT oder die eingestellte IP- Adresse öffnet sich. Ihre Daten werden geladen. Hinweis Wenn sich die Bedienoberfläche der SERVICEWELT auch nach manueller Anmeldung und Neustart nicht öffnet, ziehen Sie einen IT-Fachmann zurate. www.stiebel-eltron.com ISG WEB |...
Wenn keine Verbindung zum Internet besteht, wird eine Fehlermeldung angezeigt. Ein Informationsfenster wird angezeigt. f Tragen Sie Ihre persönlichen Daten ein. f Klicken Sie auf „Weiter“. f Lesen Sie den Text im Informationsfenster. f Klicken Sie auf „Weiter“. | ISG WEB www.stiebel-eltron.com...
Wenn Sie die E-Mail mit dem Portalschlüssel erhalten haben, klicken Sie auf „Portalschlüssel eingeben“. Ein Eingabefenster öffnet sich. f Tragen Sie den Portalschlüssel ein. Beachten Sie dabei Groß- und Kleinschreibung. f Klicken Sie auf „OK“. www.stiebel-eltron.com ISG WEB |...
Schäden oder Folgeschäden, die durch das Gerät ver- oder schreiben Sie uns: ursacht werden, insbesondere auf Ersatz außerhalb des Gerätes Stiebel Eltron GmbH & Co. KG entstandener Schäden, geltend machen. Gesetzliche Ansprüche - Kundendienst - des Kunden uns gegenüber oder gegenüber Dritten bleiben un- Fürstenberger Straße 77, 37603 Holzminden...
Materialien erreicht, um Deponien und die Umwelt zu ent- lasten. Damit leisten wir gemeinsam einen wichtigen Beitrag zum Umweltschutz. Entsorgung außerhalb Deutschlands Entsorgen Sie dieses Gerät fach- und sachgerecht nach den örtlich geltenden Vorschriften und Gesetzen. www.stiebel-eltron.com ISG WEB |...
Failure to observe this information will result in serious injury or death. WARNING Failure to observe this information may result in serious injury or death. CAUTION Failure to observe this information may result in non-seri- ous or minor injury. | ISG WEB www.stiebel-eltron.com...
Do not operate the appliance with a DCO active GSM on If the date of manufacture does not meet the minimum the same CAN BUS. This can impair communication with requirements listed below, your system is not suitable the WPM. for operation with the appliance. www.stiebel-eltron.com ISG WEB |...
After enabling access to your appliance data (see chapter "Ena- bling data access from the SERVICEWELT portal"), the appliance will transmit data to our SERVICEWELT portal at 5 minute intervals. Your appliance data will be held on the STIEBEL ELTRON server. | ISG WEB www.stiebel-eltron.com...
The SERVICEWELT user interface will open. Your data will be load- If the access lock has been activated, a login screen will be dis- played first. f Enter the login details. Default username: user Default password: pass www.stiebel-eltron.com ISG WEB |...
Seite 20
OPERatIOn Operation 1 Menu 2 Operating mode 3 Quick link 4 Graph panel 5 Graph selection | ISG WEB www.stiebel-eltron.com...
Nr.: 000 0 0 Made in Germany Note Moving the mouse pointer over one of the main menu items will In case of problems with the on-site IT network, please open the corresponding submenu. consult an IT specialist. www.stiebel-eltron.com ISG WEB |...
Material losses Observe the application limits in the chapter "Specifi- cation". The installation site must be dry and protected against frost. wall mounting Mount the appliance on a suitable wall: | ISG WEB www.stiebel-eltron.com...
Use the power supply unit (part of the standard delivery) to con- DHCP and UPnP should be activated in your router to allow auto- nect the appliance to the mains power supply. matic address allocation for the appliance. Note The COM interface is for service purposes only. www.stiebel-eltron.com ISG WEB |...
In the field "Subnet mask" enter "255.255.255.0". f Click on "OK". f In the web browser, enter "servicewelt" or "192.168.0.126". 1 Checkbox "Gateway" f Restart your computer if the Servicewelt user interface does not open. | ISG WEB www.stiebel-eltron.com...
Default password: pass f Read the text in the information window. f Click on "Next". Commissioning is now complete. Note We recommend bookmarking the SERVICEWELT start page or adding it to your favourites in your browser. www.stiebel-eltron.com ISG WEB |...
Seite 26
Click on "OK". f Enter your personal data. f Click on "Next". When the portal connection is successfully established, this is indicated under "Portal status". f Confirm your entry by activating the checkbox below the data protection policy. | ISG WEB www.stiebel-eltron.com...
This will not affect warranties issued by any importers. Environment and recycling We would ask you to help protect the environment. After use, dispose of the various materials in accordance with national regulations. www.stiebel-eltron.com ISG WEB |...
AVERTISSEMENT Caractérise des remarques dont le non-respect peut entraî- ner de graves lésions, voire la mort. ATTENTION Caractérise des remarques dont le non-respect peut entraî- ner des lésions légères ou moyennement graves. | ISG WEB www.stiebel-eltron.com...
CAN, au risque de perturber la communication L’installation n’est pas compatible avec l’appareil si la avec le WPM. date de fabrication est antérieure aux indications figu- rant dans les conditions minimales requises indiquées ci-dessous. www.stiebel-eltron.com ISG WEB |...
à chaleur ou au ventilateur et ainsi qu’au routeur du réseau do- mestique. Sont fournis avec l’appareil : - Bloc d’alimentation - Fixation murale - Câble de bus CAN (longueur 5 m) - Câble RJ45 croisé gris CAT5E (longueur 3 m) | ISG WEB www.stiebel-eltron.com...
L’interface utilisateur de SERVICEWELT s’ouvre. Vos données sont chargées. Si l’accès est verrouillé, un masque de connexion apparaît en premier lieu. f Saisissez vos identifiants de connexion. Nom d’utilisateur par défaut : user Mot de passe par défaut : pass www.stiebel-eltron.com ISG WEB |...
Seite 32
1 Menu 2 Mode de fonctionnement 3 Accès rapide 4 Zone de graphique 5 Choix du graphique | ISG WEB www.stiebel-eltron.com...
Nr.: 000 0 0 Pour ouvrir automatiquement un sous-menu, passez la souris sur Made in Germany le point de menu principal correspondant. Remarque Contactez un technicien informatique pour tout problème lié au fonctionnement du réseau local. www.stiebel-eltron.com ISG WEB |...
à l’interface prévue pour la deuxième unité de commande. Dommages matériels Respectez les limites d’utilisation indiquées dans le cha- pitre Données techniques. L’appareil doit être installé à un emplacement sec et abri- té du gel. montage mural Apposez l’appareil sur un mur adapté : | ISG WEB www.stiebel-eltron.com...
Le DHCP et le UPnP doivent être activés dans le routeur, pour Connectez l’appareil au réseau électrique à l’aide du bloc d’ali- permettre l’adressage automatique de l’appareil. mentation fourni. Remarque L’interface COM sert exclusivement au SAV. www.stiebel-eltron.com ISG WEB |...
Cliquez sur la touche droite de la souris et cliquez sur « Propriétés ». f Cliquez sur « Protocole Internet ». f Cochez la case « Utiliser l’adresse Internet suivante ». f Dans le champ Adresse IP saisissez « 192.168.0.1 ». f Dans le champ Masque de sous-réseau, saisissez « 255.255.255.0 ». f Cliquez sur « OK ». | ISG WEB www.stiebel-eltron.com...
Seite 37
RESET pendant 10 secondes. La première mise en service est terminée. Remarque Nous conseillons d’ajouter la page d’accueil de SER- VICEWELT aux favoris ou de marquer la page dans votre navigateur Internet. www.stiebel-eltron.com ISG WEB |...
Saisissez vos données personnelles. f Cliquez sur « Continuer ». f Prenez connaissance du contenu de cette fenêtre. f Cliquez sur « Continuer ». f Confirmez votre saisie en cochant la case sous les disposi- tions de protection de données. | ISG WEB www.stiebel-eltron.com...
« Saisir le code du portail». Une fenêtre de saisie s’ouvre. f Saisissez la clé du portail. Veillez à respecter la casse. f Cliquez sur « OK ». Le champ « État du portail » indique si la connexion au portail a réussi. www.stiebel-eltron.com ISG WEB |...
D’éventuelles garanties accordées par l’importa- teur restent inchangées. Environnement et recyclage Merci de contribuer à la préservation de notre environnement. Après usage, procédez à l’élimination de des matériaux confor- mément à la réglementation nationale. | ISG WEB www.stiebel-eltron.com...
WAARSCHUWING Aanwijzingen die kunnen leiden tot zwaar letsel of overlij- den, wanneer deze niet in acht genomen worden. VOORZICHTIG Aanwijzingen die kunnen leiden tot middelmatig zwaar of licht letsel, wanneer deze niet in acht genomen worden. www.stiebel-eltron.com ISG WEB |...
CAN-BUS. Dit kan de communicatie met de WPM vaststellen van de compatibiliteit van het toestel. belemmeren. Als de fabricagedatum niet voldoet aan de hieronder vermelde minimumvoorwaarden, is uw installatie niet geschikt voor bedrijf met het toestel. | ISG WEB www.stiebel-eltron.com...
- Javascript-compatibele internetbrowser (Firefox vanaf 3.0, Internet Explorer vanaf 7.0, Safari vanaf 4.0). - Netwerkaansluiting (standaard ethernet 10/100 Base-T) - Breedbandinternettoegang via DSL, UMTS of LTE met dataflatrate Router - vrije ethernetinterface - DHCP-actief www.stiebel-eltron.com ISG WEB |...
Voer "servicewelt" in de adresregel van uw internetbrowser in. Druk op de toets Return. De gebruikersinterface van SERVICEWELT wordt geopend. Uw ge- gevens worden geladen. Als de toegangsblokkering geactiveerd is, verschijnt eerst een inlogvenster. f Voer uw inloggegevens in. Standaardgebruikersnaam: user Standaardwachtwoord: pass | ISG WEB www.stiebel-eltron.com...
Seite 45
BEdIEnInG Bediening 1 Menu 2 Bedrijfsmodus 3 Snelle toegang 4 Diagramvlak 5 Diagramselectie www.stiebel-eltron.com ISG WEB |...
Als u met de muisaanwijzer over één van de onderdelen van het Made in Germany hoofdmenu beweegt, wordt het betreffende submenu automatisch zichtbaar. Info In geval van problemen met de lokale IT-netwerkstruc- tuur wendt u zich tot een IT-technicus. | ISG WEB www.stiebel-eltron.com...
Het toestel wordt aangesloten op de interface voor het tweede bedieningspaneel. Materiële schade Let op de grenzen van het werkingsgebied in hoofdstuk "Technische gegevens". De montageplaats moet droog en vorstvrij zijn. wandmontage Bevestig het toestel aan een geschikte wand: www.stiebel-eltron.com ISG WEB |...
Sluit het toestel met behulp van de bijgeleverde netadapter aan In uw router moet voor DHCP en UPnP geactiveerd zijn om een op het stroomnet. automatische adrestoewijzing van het toestel mogelijk te maken. Info De COM-interface is uitsluitend bedoeld voor service- werkzaamheden. | ISG WEB www.stiebel-eltron.com...
Trek de crosskabel die van het toestel naar de router gaat, uit de router. f Steek de crosskabel in een netwerkaansluiting van de computer. 1 Menu "Profile" f Klik op het menu "Profile" om de netwerkinstellingen op te roepen. www.stiebel-eltron.com ISG WEB |...
Seite 50
Als de gebruikersinterface van SERVICEWELT ook na handmatig aanmelden en heropstarten niet opent, neem dan contact op met een IT-technicus. Info Om de handmatige configuratie van het toestel te re- setten houdt u de knop RESET gedurende 10 seconden ingedrukt. | ISG WEB www.stiebel-eltron.com...
De regels inzake gegevensbescherming worden weergegeven. f Bevestig uw ingevoerde gegevens door het selectievakje onder de regels inzake gegevensbescherming af te vinken. Bij succesvolle aanmelding ontvangt u binnen enkele minuten een bevestiging per e-mail met de portaalsleutel. www.stiebel-eltron.com ISG WEB |...
Er verschijnt een invoervenster. f Voer de portaalsleutel in. Let daarbij op het gebruik van hoofdletters en kleine letters. f Klik op "OK". Als de portaalverbinding met succes tot stand gebracht werd, wordt dit onder "Portaalstatus" weergegeven. | ISG WEB www.stiebel-eltron.com...
Een eventueel door de importeur verzekerde garantie blijft onverminderd van kracht. Milieu en recycling Wij verzoeken u ons te helpen ons milieu te beschermen. Doe de materialen na het gebruik weg overeenkomstig de natio- nale voorschriften. www.stiebel-eltron.com ISG WEB |...
Avvertenze che, se non osservate, causano lesioni gravi o addirittura letali. AVVERTENZA Avvertenze che, se non osservate, possono causare lesioni gravi o addirittura letali. CAUTELA Avvertenze che, se non osservate, possono causare lesioni medio-gravi o lievi. | ISG WEB www.stiebel-eltron.com...
WPM. fare riferimento alla data di produzione del sistema. Se la data di produzione non corrisponde ai requisiti mi- nimi specificati di seguito, il sistema non è idoneo per l'uso con questo apparecchio. www.stiebel-eltron.com ISG WEB |...
- eseguire regolarmente gli aggiornamenti del fir- mware del router. Collegando l'apparecchio alla pompa di calore, o all'unità di venti- lazione e al router della propria rete domestica, i dati del sistema vengono elaborati e resi disponibili nella rete domestica stessa. | ISG WEB www.stiebel-eltron.com...
- Accesso a Internet su banda larga tramite DSL, UMTS o LTE con flat rate per i dati Router - Interfaccia Ethernet libera - DHCP attivo f Inserire i dati per il login. Nome utente standard: user Password standard: pass www.stiebel-eltron.com ISG WEB |...
Seite 58
1 Menu 2 Modalità di esercizio 3 Accesso rapido 4 Area diagrammi 5 Selezione diagrammi | ISG WEB www.stiebel-eltron.com...
Made in Germany Spostando il puntatore del mouse su una delle voci del menu Avvertenza principale, si apre automaticamente il rispettivo sottomenu. In caso di problemi con la struttura della rete informatica locale, consultare un tecnico informatico. www.stiebel-eltron.com ISG WEB |...
Danni materiali Rispettare i limiti di impiego indicati nel capitolo "Dati tecnici". Il luogo di montaggio deve essere asciutto e protetto dal gelo. montaggio a parete Posizionare l'apparecchio su una parete idonea: | ISG WEB www.stiebel-eltron.com...
Per consentire l'assegnazione automatica dell'indirizzo dell'appa- Collegare l'apparecchio alla rete di alimentazione utilizzando l'a- recchio, nel router devono essere attivati DHCP e UPnP. limentatore fornito in dotazione. Avvertenza L'interfaccia COM serve esclusivamente per interventi di servizio. www.stiebel-eltron.com ISG WEB |...
Scollegare dal router il cavo cross che collega l'apparecchio al router stesso. 1 Menu "Profilo" f Inserire il cavo cross in una presa di rete del computer. f Fare clic sul menu "Profilo" per entrare nelle impostazioni di rete. | ISG WEB www.stiebel-eltron.com...
Seite 63
Servicewelt non si aprisse, consultare un tecnico informatico. Avvertenza Per ripristinare la configurazione manuale dell'appa- recchio alle impostazioni di fabbrica, tenere premuto il pulsante RESET per 10 secondi. Se il blocco di accesso è attivato, compare prima la pagina di login. www.stiebel-eltron.com ISG WEB |...
Fare clic su "Avanti". f Leggere il testo delle informazioni. f Fare clic su "Avanti". Vengono visualizzate le disposizioni sulla protezione dei dati. f Confermare i dati immessi, selezionando la casella sotto le disposizioni sulla protezione dei dati. | ISG WEB www.stiebel-eltron.com...
Inserire il codice di accesso al portale. Nel codice si distingue tra maiuscole e minuscole. f Fare clic su "OK". Se la connessione al portale è stata stabilita, questo viene visua- lizzato in "Stato portale". www.stiebel-eltron.com ISG WEB |...
Restano invariate eventuali garanzie prestate dall’im- portatore. Ambiente e riciclaggio Aiutateci a salvaguardare il nostro ambiente. Dopo l’uso, smal- tire i materiali in conformità con le prescrizioni nazionali in vi- gore. | ISG WEB www.stiebel-eltron.com...
Merkitys VAARA Ohjeet, joiden noudattamatta jättäminen aiheuttaa vakavia vammoja tai kuoleman. VAROITUS Ohjeet, joiden noudattamatta jättäminen voi aiheuttaa va- kavia vammoja tai kuoleman. VARO Ohjeet, joiden noudattamatta jättäminen voi aiheuttaa kes- kivakavia tai lieviä vammoja. www.stiebel-eltron.com ISG WEB |...
Laitteiden yhteensopivuus riippuu järjestelmän valmis- tuspäiväyksestä. Jos valmistuspäiväys poikkeaa alla ilmoitetuista, laite ei ole järjestelmän kanssa yhteensopiva. Ohje Liitä laite vain järjestelmiin, joiden säätimen ohjelmisto- versio täyttää vähintään seuraavat edellytykset. f Asennuta tarvittaessa järjestelmään vaadittavat sää- dinversiot. | ISG WEB www.stiebel-eltron.com...
Käyttö laitteen kuvaus yleiset turvallisuusohjeet serVicewelt-portaali Jos laite kytketään STIEBEL ELTRON -palvelimeen, laite voi olla VAROITUS Loukkaantuminen yhteydessä SERVICEWELT-portaaliin internetin kautta. Kun aktivoit Mikäli valvonnasta tai laitteen turvalliseen käyttöön tiedot SERVICEWELT-portaaliin, saat käyttöösi lisäpalveluja. ohjaavasta perehdytyksestä huolehditaan ja käyttäjät ymmärtävät laitteeseen liittyvät vaarat, laitetta saavat 3.2.1 toiminnot, kun käytettävissä...
"STE Internet Service Gateway". osoitteen syöttäminen internet-selaimeen f Kirjoita Internet-selaimen osoiteriville "servicewelt" Paina Return-näppäintä. SERVICEWELT-käyttöliittymä avautuu. Järjestelmä lataa tietosi. Jos suojaustoimnnot ovat käytössä, näyttöön avautuu ensin kir- jautumissivu. f Anna kirjautumistiedot. Oletuskäyttäjätunnus: user Oletussalasana: pass | ISG WEB www.stiebel-eltron.com...
Seite 71
Käyttö Käyttö 1 Valikko 2 Käyttötapa 3 Pikanäppäin 4 Kaavioalue 5 Kaavion valinta www.stiebel-eltron.com ISG WEB |...
(000000- 0000-000000). Bestell-Nr.: 000000 Nr.: 000 0 0 Made in Germany Kun siirrät hiiriosoittimen johonkin päävalikon kohteeseen, näyt- töön avautuu automaattisesti vastaava alivalikko. Ohje Jos ongelmat liittyvät lähiverkkoosi, ota yhteys IT-asian- tuntijaan. | ISG WEB www.stiebel-eltron.com...
Ohje Noudata lämpöpumpun tai ilmanvaihtolaitteen käyttö- ja asennusohjeita. Laite voidaan kytkeä käyttöliittymän kautta toiseen ohjauspaneeliin. Aineelliset vahingot Katso toimintarajoitukset kohdasta "Tekniset tiedot". Sijoituspaikan on oltava kuiva ja suojassa pakkaselta. seinäasennus Sijoita laite sopivalle seinälle: www.stiebel-eltron.com ISG WEB |...
Tiedonsiirto Käytä vain mukana toimitettua verkkomuuntajaa. 7.1.4 reitittimen asetukset Liitä laite mukana toimitetun verkkomuuntajan kautta sähköverk- koon. Reitittimessä on laitteen automaattisen osoitetoiminnon mahdol- listamiseksi oltava aktivoituna DHCP ja UPnP. Ohje COM-liitäntää käytetään yksinomaan huoltoa varten. | ISG WEB www.stiebel-eltron.com...
Merkitse rasti valintaruutuun "Käytä seuraavaa Internet-osoitetta". f Syötä IP-osoite "192.168.0.1". f Kirjoita aliverkon peite -kenttään "255.255.255.0". f Napsauta "OK". 1 "Aktivoi portti"-painike f Kirjoita internetselaimeen "servicewelt" tai "192.168.0.126". f Jos Servicewelt-käyttöliittymä ei avaudu, käynnistä tietokone uudelleen. www.stiebel-eltron.com ISG WEB |...
Anna IP-osoite ja aliverkon peite. serVicewelt-portaalia varten f Aktivoi portti ja kirjoita DNS-palvelimelle nimi. f Irrota ethernet-kaapeli tietokoneesta ja kytke laite jälleen Jos tiedot siirretään STIEBEL ELTRON -palvelimelle, yhteys on ak- reitittimeen. tivoitava. f Kirjoita osoiteriville "servicewelt". Paina Return-näppäintä.
Seite 77
Anna portaalin avain. Huomaa isot ja pienet kirjaimet. f Napsauta "OK". f Anna henkilökohtaiset tietosi. f Napsauta "Seuraava". Jos portaaliyhteys muodostuu, tämä tieto näkyy "Portaalin tila" -kohdassa. f Vahvista tiedot merkitsemällä rasti tietosuojaselosteen alla olevaan ruutuun. www.stiebel-eltron.com ISG WEB |...
Tämän lisäksi ei myönnetä muuta takuuta. Emme myönnä takuuta laitteille, jotka on hankittu maissa, joissa tytäryrityksemme ei markkinoi tuotteitamme. Tämä ei vaikuta maahantuojan mahdollisesti myöntämiin takuisiin. Ympäristö ja kierrätys Auta ympäristömme suojelussa. Hävitä käytetyt materiaalit kansallisten määräysten mukaisesti. | ISG WEB www.stiebel-eltron.com...
NEBEZPEČÍ Pokyny, jejichž nedodržení má za následek vážné nebo smrtelné úrazy. VÝSTRAHA Pokyny, jejichž nedodržení může mít za následek vážné nebo smrtelné úrazy. POZOR Pokyny, jejichž nedodržení může mít za následek středně vážné nebo lehké úrazy. www.stiebel-eltron.com ISG WEB |...
Neprovozujte přístroj s DCO-aktiv GSM na stejné SBĚRNICI Datum výroby zařízení je rozhodující pro vyjádření ke CAN. Může to ovlivnit komunikaci s WPM. kompatibilitě přístroje. Jestliže datum výroby nesouhlasí s dále uvedenými mi- nimálními požadavky, není vaše zařízení pro provoz s přístrojem vhodné. | ISG WEB www.stiebel-eltron.com...
Připojením přístroje k tepelnému čerpadlu nebo ventilačnímu za- - nástěnný držák řízení a routeru v domácí síti se data vašeho zařízení upraví a jsou - kabel sběrnice CAN (délka 5,0 m) k dispozici v domácí síti. - křížený kabel RJ45 šedý CAT5E (délka 3,0 m) www.stiebel-eltron.com ISG WEB |...
Stiskněte tlačítko Return. Uživatelské rozhraní SERVICEWELT se otevře. Vaše data se na- hrávají. Jestliže je aktivováno blokování přístupu, objeví se nejprve při- hlašovací maska. f Zadejte přihlašovací údaje. Standardní uživatelské jméno: user Standardní heslo: pass | ISG WEB www.stiebel-eltron.com...
Seite 83
OBSluha Obsluha 1 [MENU] 2 Provozní režim 3 Rychlý přístup 4 Plocha diagramu 5 Výběr diagramu www.stiebel-eltron.com ISG WEB |...
Nr.: 000 0 0 Bestell-Nr.: 000000 Made in Germany Upozornění Najedete-li ukazatelem myši nad některý bod hlavní nabídky, au- Při problémech, které souvisí se strukturou lokální IT sítě, tomaticky se otevře podnabídka. se poraďte s IT odborníkem. | ISG WEB www.stiebel-eltron.com...
Přístroj se připojuje k rozhraní pro druhý ovládací prvek. Věcné škody Dodržujte meze použití uvedené v kapitole „Technické údaje“. Místo montáže musí být suché a chráněné před mrazem. montáž na stěnu Upevněte přístroj na vhodnou stěnu. www.stiebel-eltron.com ISG WEB |...
7.1.4 nastavení routeru Připojte přístroj prostřednictvím přiloženého síťového zdroje do elektrické sítě. V routeru by měly být aktivovány DHCP a UPnP, aby bylo možné automatické přidělování adresy přístroje. Upozornění Rozhraní COM slouží výhradně k servisním účelům. | ISG WEB www.stiebel-eltron.com...
Do pole IP adresy zadejte „192.168.0.1“. f Do pole masky podsítě zadejte „255.255.255.0“. 1 Tlačítko „Aktivovat Gateway“ f Klikněte na „OK“. f Zadejte do internetového prohlížeče „servicewelt“ nebo „192.168.0.126“. f Pokud se uživatelské rozhraní Servicewelt neotevře, restar- tujte počítač. www.stiebel-eltron.com ISG WEB |...
Mají-li se přenášet data na server STIEBEL ELTRON, musíte povolit spojení. f Zadejte přihlašovací údaje. Standardní uživatelské jméno: user Standardní heslo: pass f Klikněte na „Připojit“. Upozornění Chybí-li spojení na internet, zobrazí se chybové hlášení. | ISG WEB www.stiebel-eltron.com...
Seite 89
Zadejte kód portálu. Dodržujte přitom psaní velkých a malých ochranu dat. písmen. f Klikněte na „Další“. f Klikněte na „OK“. f Zadejte vaše osobní údaje. Po úspěšném navázání spojení s portálem se toto zobrazí v poli f Klikněte na „Další“ [„Weiter“]. „Stav portálu“. www.stiebel-eltron.com ISG WEB |...
InStalaCE technické údaje technické údaje ISG web 229336 Elektrotechnické údaje Příkon max. Rozměry Výška Šířka Hloubka Přípojky RJ 45 RS232 RJ 12 10/100 Ethernet RJ 45 Hodnoty Rozsah použití venk. teploty min./max. °C 0...60 | ISG WEB www.stiebel-eltron.com...
žádnou z dceřiných společností, nepo- skytujeme žádnou záruku. Případné záruky závazně přislíbené dovozcem zůstávají proto nedotčené. Životní prostředí a recyklace Pomozte nám chránit naše životní prostředí. Materiály po pou- žití zlikvidujte v souladu s platnými národními předpisy. www.stiebel-eltron.com ISG WEB |...
