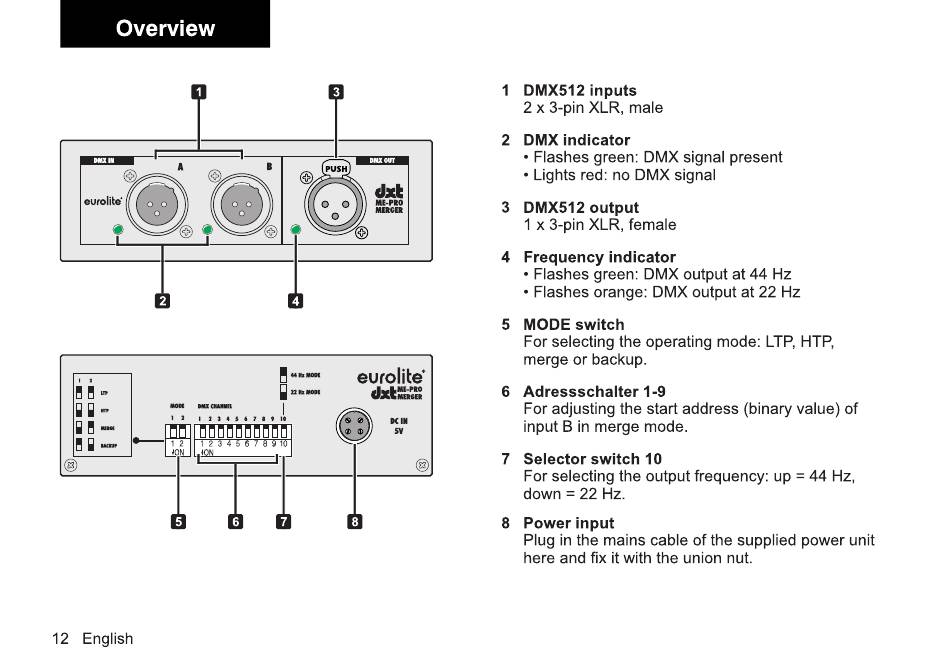

Overview
DMX
IN
eurolite
2345
bld
12
12345678910
12
English
DMX
our
dxt
ME-PRO
MERCER
eucolite
78
9
10
1
DMX512
inputs
2 x 3-pin XLR, male
2
DMX
indicator
• Flashes green: DMX signal present
• Lights red: no DMX signal
3
DMX512
output
1 x 3-pin XLR, female
4
Frequency
indicator
• Flashes green: DMX output at 44 Hz
• Flashes orange: DMX output at 22 Hz
5
MODE
switch
For selecting the operating mode: LTP, HTP,
merge or backup
6
Adressschalter
1-9
For adjusting the start address (binary value) of
input B in merge mode.
7
Selector
switch
10
For selecting the output frequency:
down
= 22 Hz
8
Power
input
Plug in the mains cable of the supplied power unit
here
and
fix it with
the
up = 44 Hz,
union
nut.
