Assembly Instructions

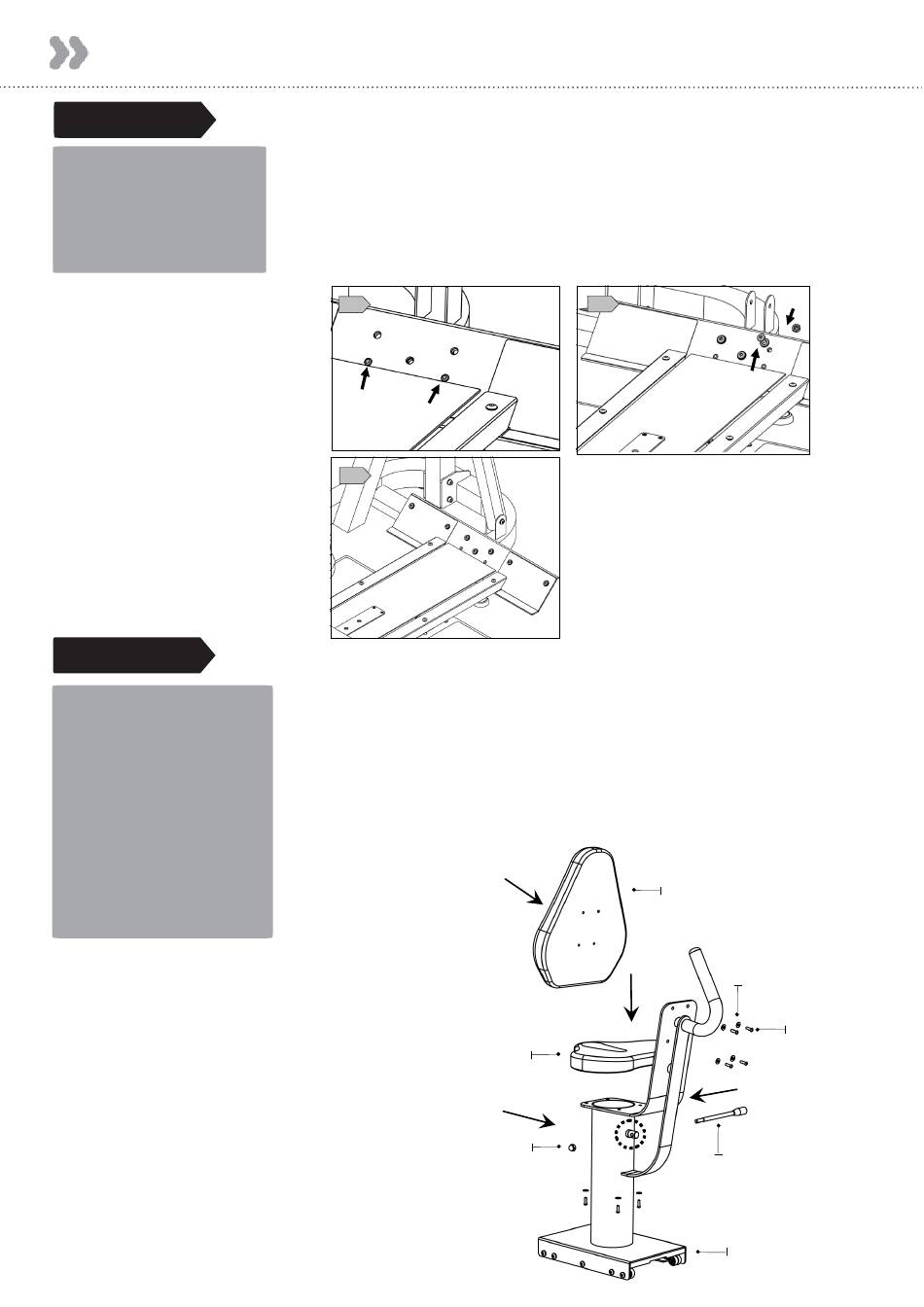

STEP 4
Installing Baseplate to the Main Frame
REQUIRED
3 x M10x20mm [17]
1
2 x M10 Nylock Nut [18]
2
3 x M10 Washer [20]
STEP 5
Seat Assembly and Installing Seat to the Main Frame
REQUIRED
Seat Frame [3]
1
Seat Back [4]
Lower Seat [5]
4 x M6x20mm Bolts [14]
4 x M6 Washer [19]
Handle Bar [13]
Dome Nut [13]
Mount the baseplate onto the Main Frame using
a)
mounting pins as a locator
Then, secure with 3x M10x20mm Bolt[17], 2x M10
Nylock Nut[18] and 3x M10 Washer[20].
Note : Center M10 Bolt does not require Nut.
1
3
a) Thread the Handle Bar [13] through the Shaft
b) Tighten the Handle Bar [13] with the Dome Nut[13]
c) Install Seat Back[4] with 4x M6x20 Bolts[14] and M6
Washer[19].
d) Install Lower Seat[5] with 4x M6x20 Bolts[14] and M6
Washer[19].
Lower Seat
M10 Dome Nut
11
2
c)
d)
b)
Seat Back
M6 Washer
M6 x 20 Bolt
a)
Handle Bar
Seat Frame
