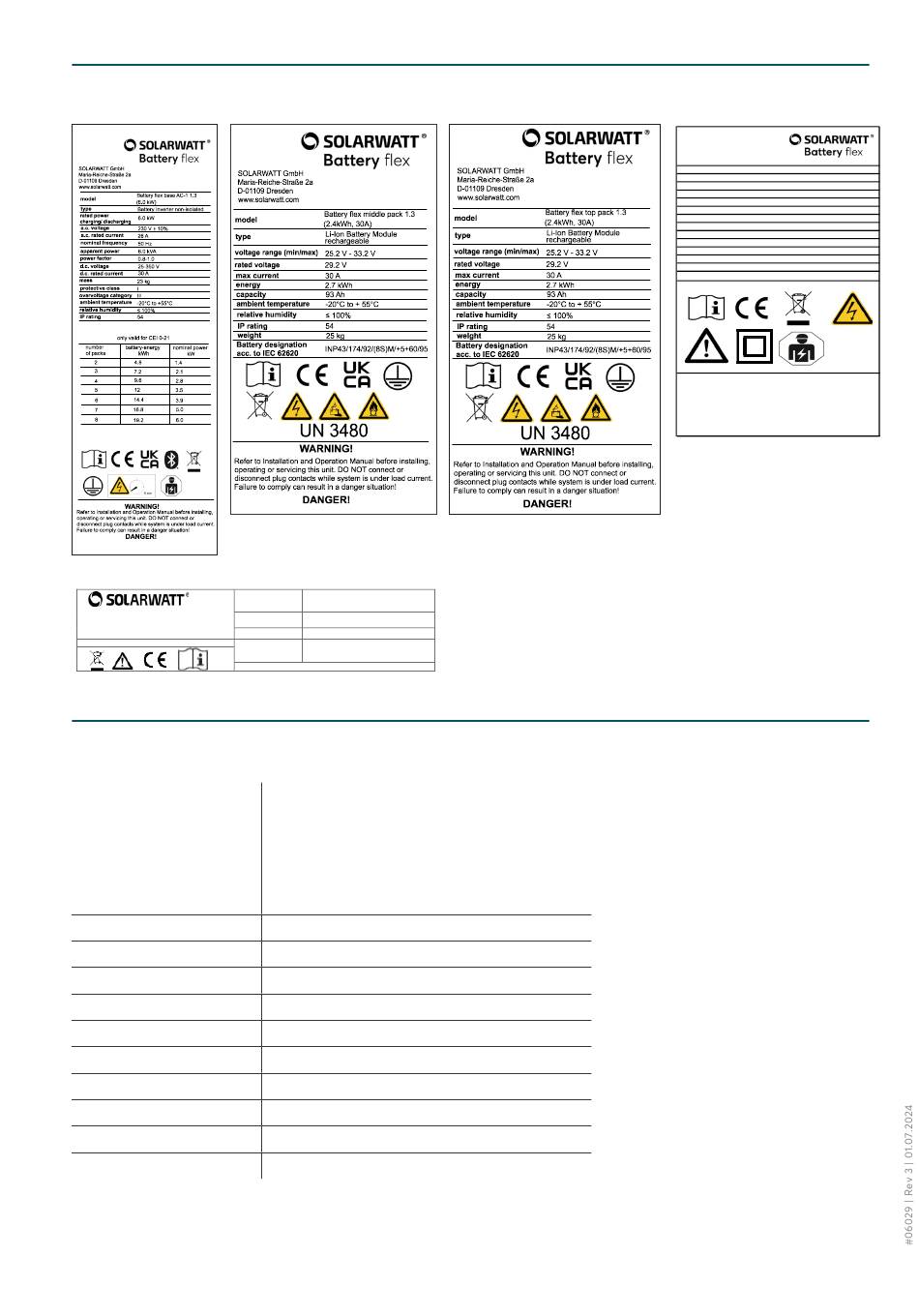

TYPENSCHILDER
Name
SOLARWATT GmbH
U
Maria-Reiche-Straße 2a
01109 Dresden
F
Part. No: 500005255
U
Protective class
BATTERY SENSOR SWITCH – WEITERE TECHNISCHE DATEN
Rating of power supplies
Nominal AC frequency
Protective class
Ambient temperature
Relative humidity
Altitude
Environment
Connection type
User interfaces
Pollution degree
Overvoltage category
8
Battery sensor switch
∿
∿ 230V
∿ 230V
∿
(20mA)
Grid [L-N]
nom
(20mA)
Home [L-N]
⎓ 19 V
⎓
nom
50 Hz
⎓ 12 V
(+/- 10%) (150mA)
⎓ 5 V
IN
(+/- 10%) (200mA)
nom
IN
(+/- 10%) (100mA)
out
II
~ 230VGRID [L-N] (20mA)
~ 230VHOME [L-N] (20mA)
= 19VIN (150mA)
= 12VIN (200mA)
= 5VOUT (100mA)
50 Hz
II
-20°C to +55°C
≤ 100%, non-condensing
≤ 2000 m
Indoor
Permanent
2x CAN, 2x R485
PD2
III
-20% to +15%
-20% to +15%
-10+ to +10%
-10+ to +10%
-10+ to +10%
SOLOARWATT GmbH
Maria-Reiche-Straße 2a
D-01109 Dresden
www.solarwatt.com
model
Battery flex backup solo
Type
Grid disconnection device
AC voltage
230/400V
nominal frequency
50 Hz
allowed grid forms
TN-C-S; TN-S
Max. connection current
63A / phase
Max. thermal power transmission
23 kW
standby power consumption
14W
protective class
II
weight
12 kg
ambient termperature
-20°C to 55°C
relative humidity
≤ 100%
IP rating
65
Standard
IEC 61439-1:2021
Warning!
Refer to Installation an Operating Manual before installing, oparating or
servicing this unit. DO NOT connect or disconnect plugs or wires conacts while
system is under load current. Failure to comply can result in an danger situation!
Danger!
