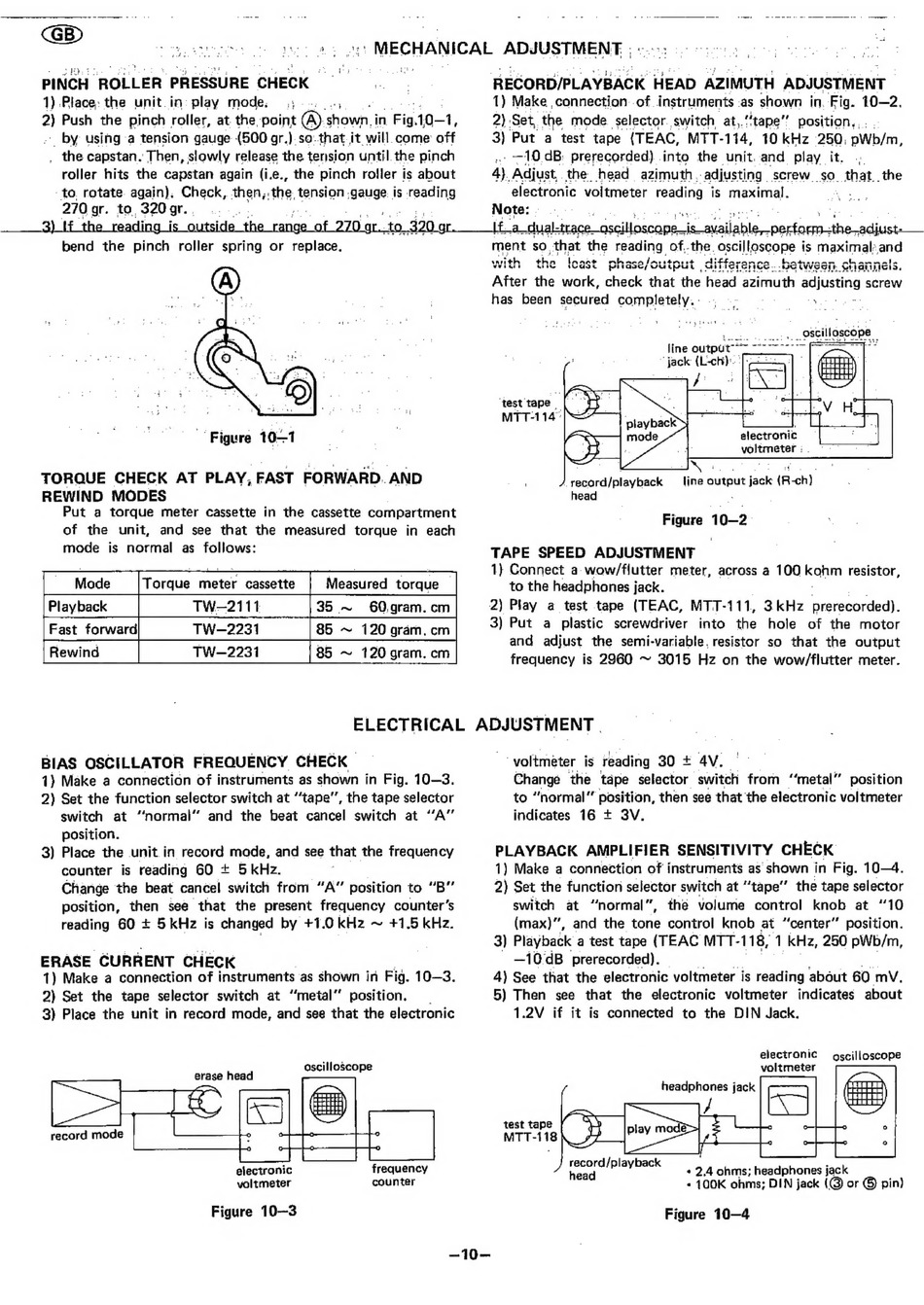

MECHANICAL ADJUSTMENT
PINCH ROLLER PRESSURE CHECK
1) Place: the unit in: play mode.
|; ..
.
2) Push the pinch roller, at. the point | aan in Fig. 10— '4,
- by using a tension gauge (500 gr.). so. that. it, will, come off
_ the capstan. Then, slowly release the tension until the pinch
roller hits the capstan again (i.e., the pinch roller is about
'to. rotate. again). Check, then, the. tension ,gauge: is reading
270 gr. to. 320 gr. ,
a
;
ere
bend
the pinch roller spring or replace.
Figure 10-1
TORQUE
CHECK
AT PLAY, FAST
FORWARD.
AND
REWIND
MODES
Put a torque
meter cassette
in the cassette compartment
of the
unit,
and
see that the measured
torque
in each
mode
is normal
as follows:
Made" [Torque meter casette | Measured toraue
Rewind | _TW=2231 [85 ~ 120 gram. om
RECORD/PLAYBACK HEAD AZIMUTH ADJUSTMENT
1) Make connection: of instruments as shown in. Fig. 10-2.
2): Set, the mode. selector. switch at, "tape" position,.
3) Put a test tape (TEAC, MTT- 114, 10 kHz 250, oWb/m,
.. 710.dB: prerecorded) into the unit.and play it,
4). Adjust. the head
azimuth .. adjusting - screw so that the
electronic voltmeter reading is manta).
no
Note: |
¢4
Los be
ell ee eecincos ea adic
ment sO, that 'the reading of,.the oscilloscope is maximaland
ith
tha
lane
sass
at fa
Wit
wie
toda
ohas:
*SuTpPut
| Girielence..
between. channels.
After the work, check that the head azimuth aqjusting screw
has been
secured COMMaTENY
Mote.
2
3
PR?
<a _otcilloscope
line output
=
ae
"jack nee
test tape iy
MTT-114"
electronic
voltmeter
: .
=
L record/playback
line output jack (R-ch)
head
A
Figure 10—2°
TAPE
SPEED
ADJUSTMENT
1} Connect a-wow/flutter meter, across a 100 conn resistor,
to the headphones jack.
2) Play a test tape
(TEAC,
MTT- 111, 3.kHz prerecorded).
3) Put
a plastic screwdriver
into
the hole
of the motor
and adjust the semi-variable, resistor so that the output
frequency is 2960 ~ 3015 Hz on the wow/flutter meter.
ELECTRICAL ADJUSTMENT .
BIAS OSCILLATOR
FREQUENCY
CHECK >
1) Make a connection of instruments as shown in Fig. 10—3.
2) Set the function selector switch at "tape'', the tape selector
switch
at "normal"
and the beat cancel switch at "A"
position.
3) Place the unit.in record mode, and see that the frequency
counter
is reading 6O + 5 kHz.
.
Change the beat cancel switch from
"A" position to "B"
position,
then
see that the present frequency
counter's
reading 60 + 5kHz is changed by +7.0 kHz ~ +1.5 kHz.
ERASE CURRENT
CHECK
1) Make a connection of instruments as shown in Fig.
10—3.
2) Set the tape selector switch at "metal" position.
3) Place the unit in record mode, and see that the electronic
oscilloscope
erase head
P
record mode
-~10—
"voltmeter is reading 30 + AV.
Change the 'tape selector "switch from
' "metal" position
to "normal" position, then see that the electronic voltmeter
indicates
16 + 3V.
PLAYBACK
AMPLIFIER
SENSITIVITY
CHECK
1) Make a connection of instruments as shown in Fig. 10—4.
2) Set the function selector switch at "tape" the tape selector
switch
at "normal",
thé volume
control
knob
at "10
(max)", and the tone control knob at "center" position.
3) Playback a test tape (TEAC MTT- 118, 1 kHz, 250 pWb/m,
—10'dB prerecorded).
4) See that the electronic voltmeter is reading about 60 mV,
5) Then
see that the electronic
voltmeter
indicates
about
1.2V if it is connected
to the DIN Jack.
electronic
voltmeter
ascilloscope
headphones jack
test tape
MTT-118
ee
Bp play made
egg
ees
« 100K ohms; DIN jack (@ or © pin)
e
wt
Figure 10—4
