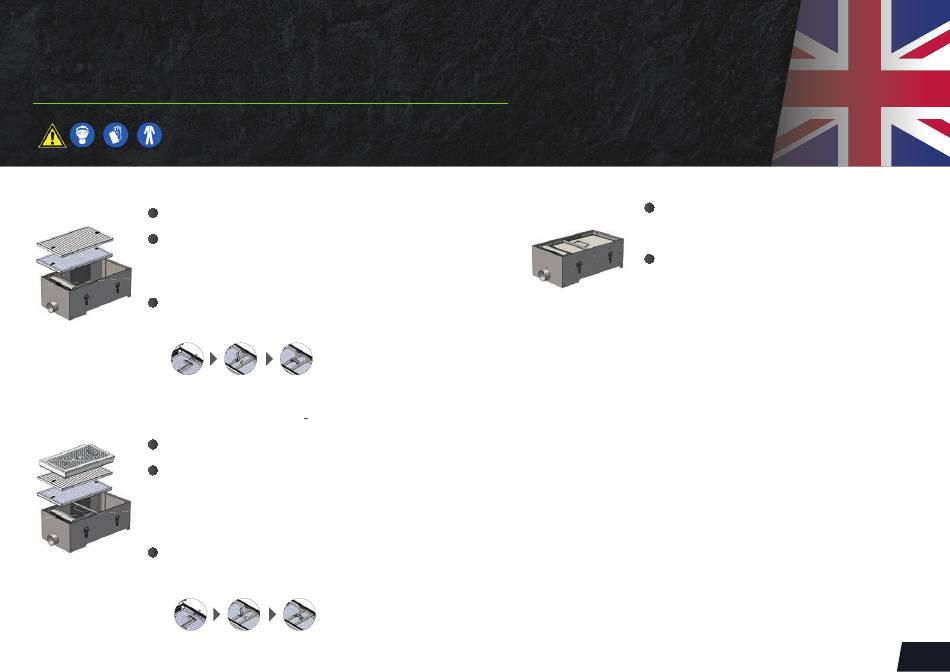

FILTER INSTALLATION

FILTER INSTALLATION INSTRUCTIONS WITH ORDER NUMBERS
Attention! Use the appropriate personal protective equipment (PPE) when
opening. Administer the placed fi lters in the fi lter log on page 29.
INSTALLATION OF DUSTFILTERS ONLY
Detach the quick-release fasteners and open the cover.
1
Install the P1 pre fi lter (VX604050EU5) fi rst, then place the P3
2
dust fi lter (VX604050EU13) on top of the already installed P3
fi lter.
Clamp the installed fi lters with the appropriate fi lter tensio-
3
ners and fi nally close and lock the cover.
INSTALLATION OF DUST & ACTIVATED CARBON FILTERS
Detach the quick-release fasteners and open the cover.
1
Install the P1 pre-fi lter (VX604050EU13) fi rst. Then place
2
the P3 dust fi lter (VX604050EU5) on the P1 pre fi lter. Finally,
place the activated carbon fi lter (KX604010*) on top of the
installed P3 fi lter.
Clamp the installed fi lters with the appropriate fi lter tensio-
3
ners and fi nally close and lock the cover.
CLOSING AND ADMINISTRATION
6 After installing all fi lters, close both the fi lter drawer
and the lid. Make sure all closures are closed again.
Then write down the new fi lters in the fi lter log
7
on page 29. It is also important to keep the fi lter
certifi cate safe.
ORDER NUMBER DESCRIPTION
VX604050EU5 F40 P1 Dustfi lter - 50 mm
VX604050EU13 F40 P3 Dustfi lter - 50 mm
KX604010A F40 12 kg Activated Carbon Filter A (100mm)
KX604010AB F40 12 kg Activated Carbon Filter AB (100mm)
KX604010AHg F40 12 kg Activated Carbon Filter AHg (100mm)
KX604010ABEK F40 12 kg Activated Carbon Filter ABEK (100mm)
KX604010ABEKHg F40 12 kg Activated Carbon Filter ABEKHg (100mm)
KX604010AK F40 12 kg Activated Carbon Filter AK (100mm)
KX604010AX F40 Activated Carbon Filter AX (100mm)
