SYSTEM INFORMATION

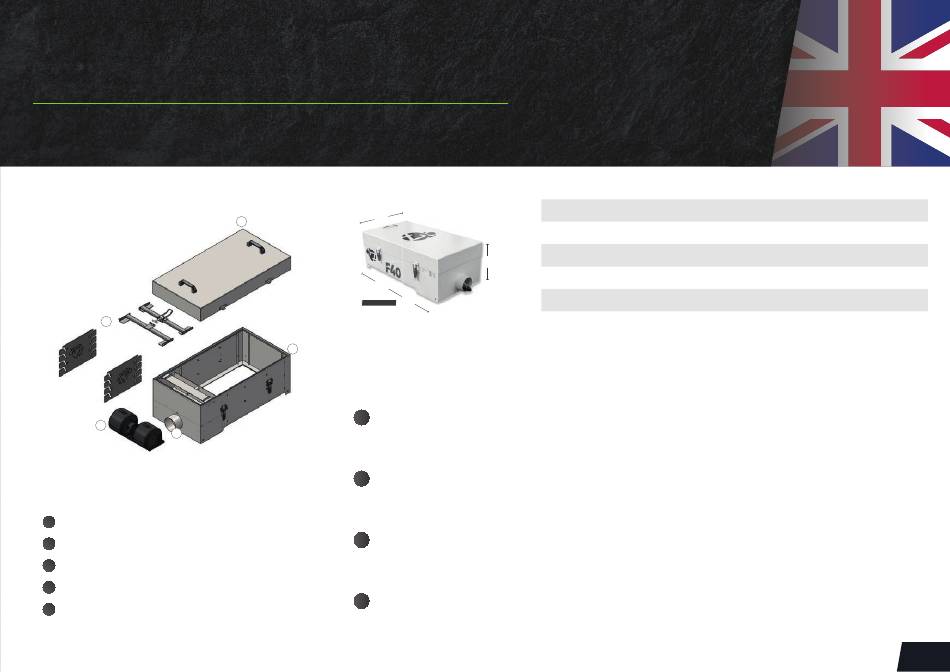

TECHNICAL SPECIFICATIONS & INSTALLATION CRITERIA F40
The F40 overpressure fi lter system has the following components and specifi cations:
3
4
5
Base unit F40
1
Cover F40 with handles
2
Filter tensioning system (no fi ller frame required)
3
Blower F40
4
Hose connection
5
(Ø 100mm)
435 mm
2
815 mm 815 mm 815 mm
1
When mounting the F40 on your machine, it's important that the overpressure fi lter system does not hinder
normal operations. The following should also be taken into account:
1
The inlet opening of the overpressure fi lter system is positioned in such a way that the suction of
exhaust gases is avoided.
2
The exhaust opening of the overpressure fi lter system in the cabin is positioned in such a way that it
does not lead to an obstructed airfl ow.
3
The monitoring equipment is installed in such a way that the equipment's output value can be observed
in the workplace.
4
The climate control system can only draw in air via the overpressure fi lter system. When mounted with
direct standard air inlet, the system has a recirculation mode.
Weight (without fi lters)
Material
Dustfi lters
297 mm
Carbonfi lters
Noise level
Standard
32 kg
RVS
P1 en P3
10 kg Active Carbonfi lter
< 60 db
ISO23875
