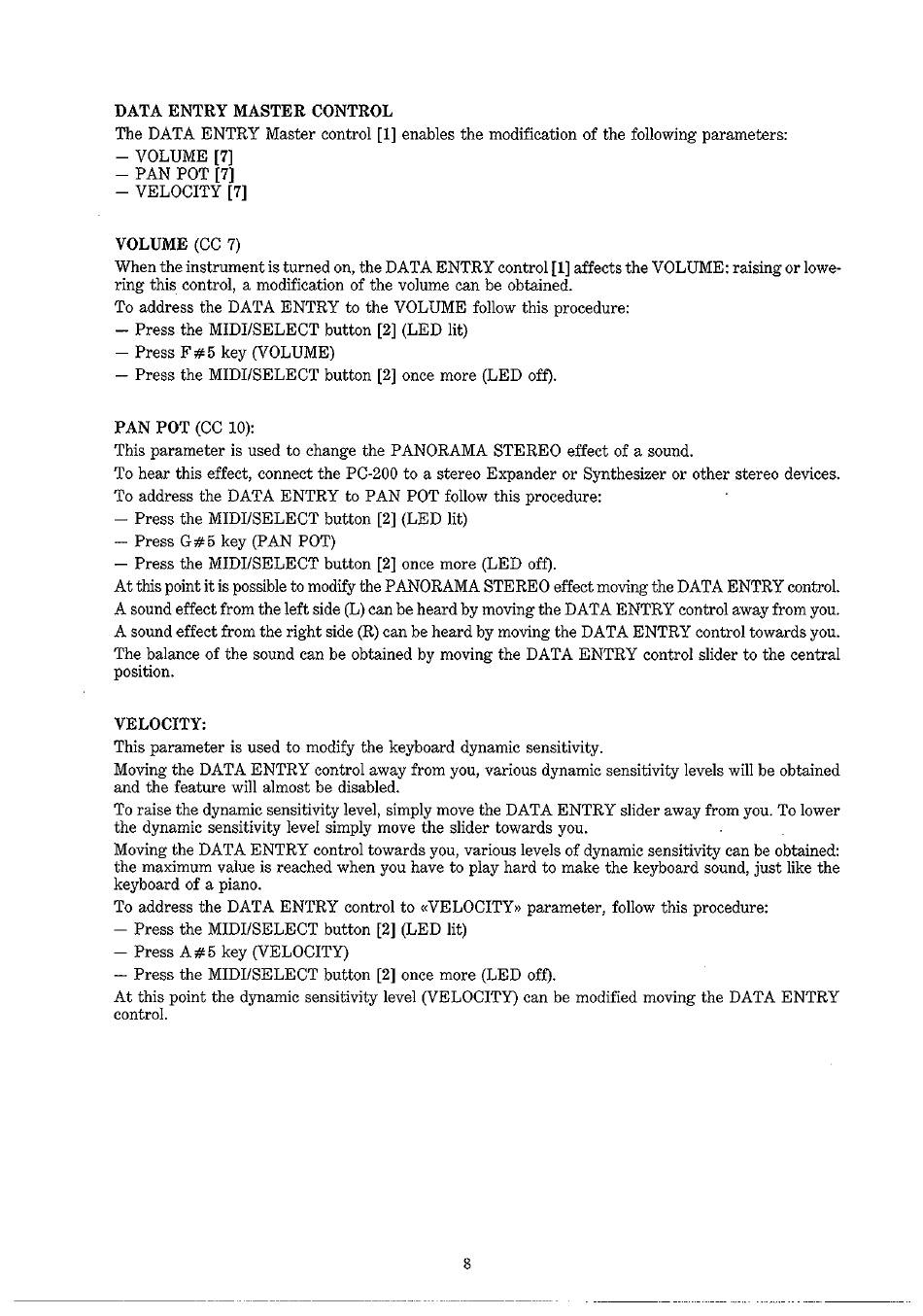

DATA ENTRY MASTER
The DATA ENTRY Master control [1] enables the modification of the following parameters:
VOLUME [7]
PAN POT [7]
— VELOCITY [7]
VOLUME (CC 7)
When the instrument is turned on, the DATA ENTRY control [1] affects the VOLUME: raising or lowe-
ring this control, a modification of the volume can be obtained.
To address the DATA ENTRY to the VOLUME follow this procedure:
Press the MIDI/SELECT
— Press key (VOLUME)
— Press the MIDI/SELECT
PAN POT (CC 10):
This parameter is used to change the PANORAMA
To hear this effect, connect the PC-200 to a stereo Expander or Synthesizer or other stereo devices.
To address the DATA ENTRY to PAN POT follow this procedure:
— Press the MIDI/SELECT
Press key (PAN POT)
— Press the MIDI/SELECT
At this point it is possible to modifr the PANORAMA STEREO effect moving the DATA ENTRY control.
A sound effect from the left side (L) can be heard by moving the DATA ENTRY control away from you.
A sound effect from the right side (R) can be heard by moving the DATA ENTRY control towards you.
The balance of the sound can be obtained by moving the DATA ENTRY control slider to the central
position.
VELOCITY:
This parameter is used to modify the keyboard dynamic sensitivity.
Moving the DATA ENTRY control away from you, various dynamic sensitivity levels will be obtained
and the feature will almost
To raise the dynamic sensitivity level, simply move the DATA ENTRY slider away from you. To lower
the dynamic sensitivity level simply move the slider towards you.
Moving the DATA ENTRY control towards you, various levels of dynamic sensitivity can be obtained:
the maximum value is reached when you have to play hard to make the keyboard sound,just like the
keyboard of a piano.
To address the DATA ENTRY control to «VELOCITY» parameter, follow this procedure:
— Press the MIDI/SELECT
Press key (VELOCITY)
— Press the MIDI/SELECT
At this point the dynamic sensitivity level (VELOCITY)
control.
CONTROL
button [2] (LED lit)
button [2] once more (LED off).
button [2] (LED lit)
button [2] once more (LED off).
be disabled.
button [2] (LED lit)
button [2] once more (LED
8
STEREO effect of a sound.
off).
can be modified moving the DATA ENTRY
