Mechanical Installation

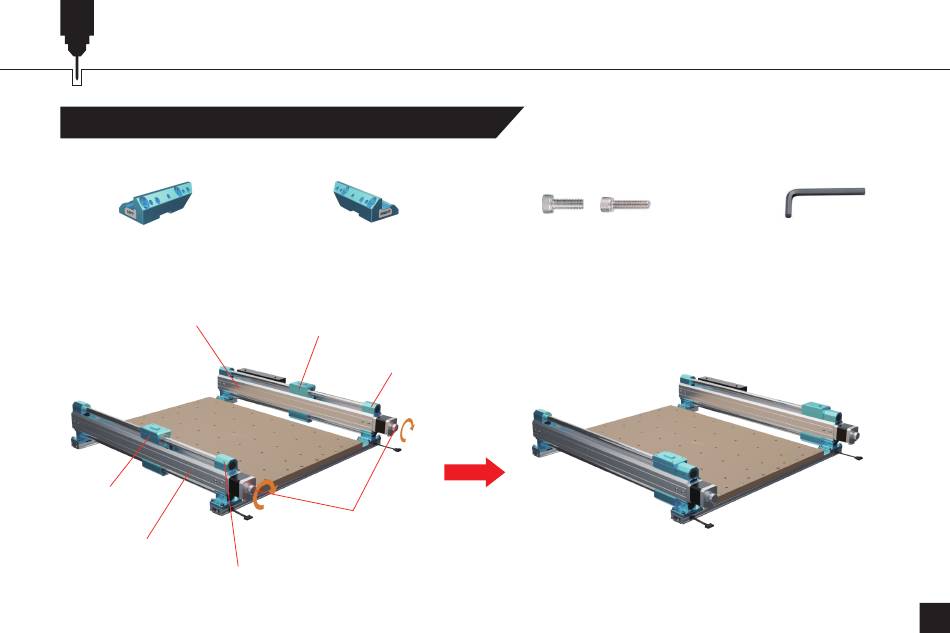

STEP 2 Installing the 4040 Upgrade X-Axis Module
What you need:
X-axis Support Block (Left)
1. Turn the handwheels on the YL&YR modules clockwise so that the Y-axis sliders on the module fit exactly against the rear mounts.
Y-axis Module (Left)
Y-axis Slider
Y-axis Module (Right)
Rear Mount
X-axis Support Block (Right)
Y-axis Slider
Rear Mount
Handwheel
(4) M5×14 Socket Head Cap Screw
(4) M5×22 Socket Head Cap Screw
4mm Allen Wrench
04
