Mechanical Installation
STEP 5 Wring

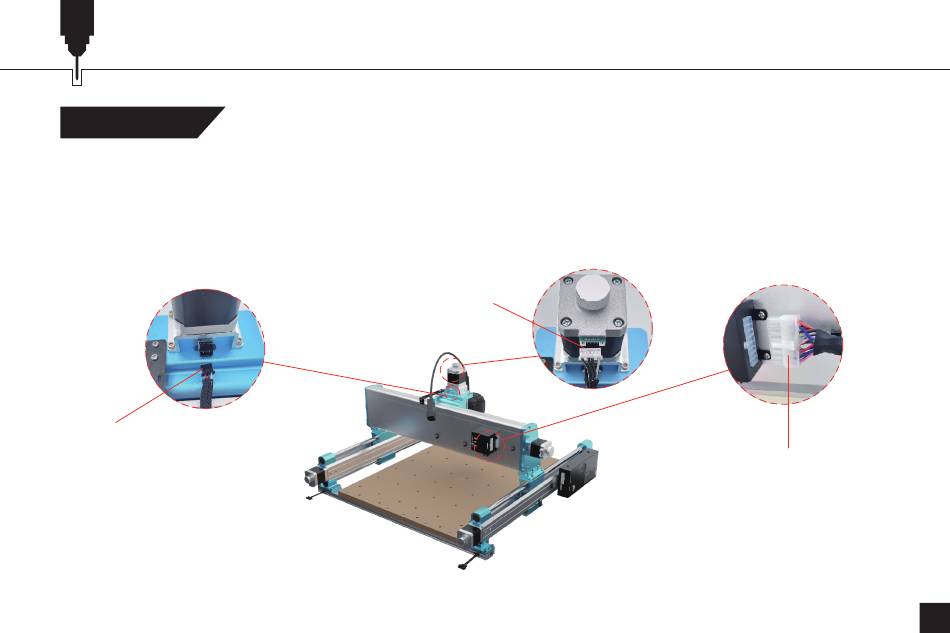

1. Plug the black terminal (3PIN signal cable) into the Z-axis limit switch board.
2. Plug the white terminal (4PIN motor cable) into the Z-axis motor.
3. Connect the XZ-axis cable on the Y-axis module (Left) to the X-Z Cable connector on the X-axis module.
(Tips: Please press the white paddle and apply pressure to the docking port to ensure the two ports are in close contact and secured.)
4PIN Motor Cable
3PIN Signal Cable
XZ-axis Cable
10
