Mechanical Installation

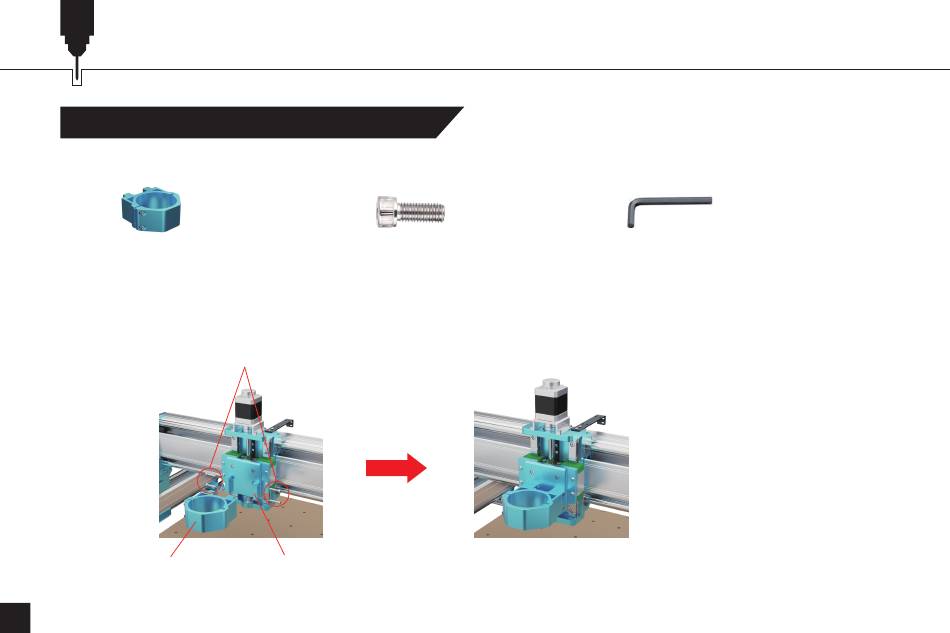

STEP 4 Installing the Spindle Motor Mount
What you need:
3mm Allen Wrench
Spindle Motor Mount (65mm)
(4) M4×18 Socket Head Cap Screw
1. Attach the spindle motor mount to the Z-axis clamp mounting plate and align the screw holes on both sides.
2. Use (4) M5×14mm through the Z-axis clamp mounting plate to install the spindle motor mount.
(Note: The screws cannot be locked tight now.)
(4) M4×18 Socket Head Cap Screw
65mm Spindle Motor Mount
Z-axis Clamp Mounting Plate
09
