Mechanical Installation

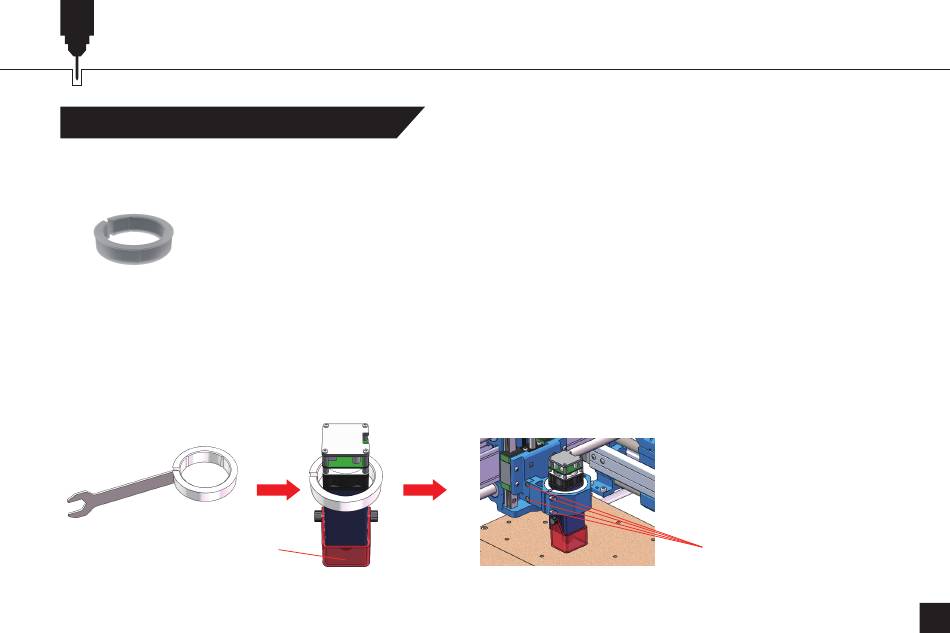

How to Use the 52mm Retaining Ring
Laser module needs to be prepared by yourself.
What you need:
52mm Retaining Ring
Tip:
1. The acrylic baffle of the laser module needs to be removed during installation.
2. If the retaining ring is slightly tight, expand it slightly with the help of a tool and place the laser module in it.
3. If the retaining ring is slightly tight, unscrew the 2 screws on the spindle motor mount and the 4 screws on the side, then install the
laser module in it.
Remove Loosen
