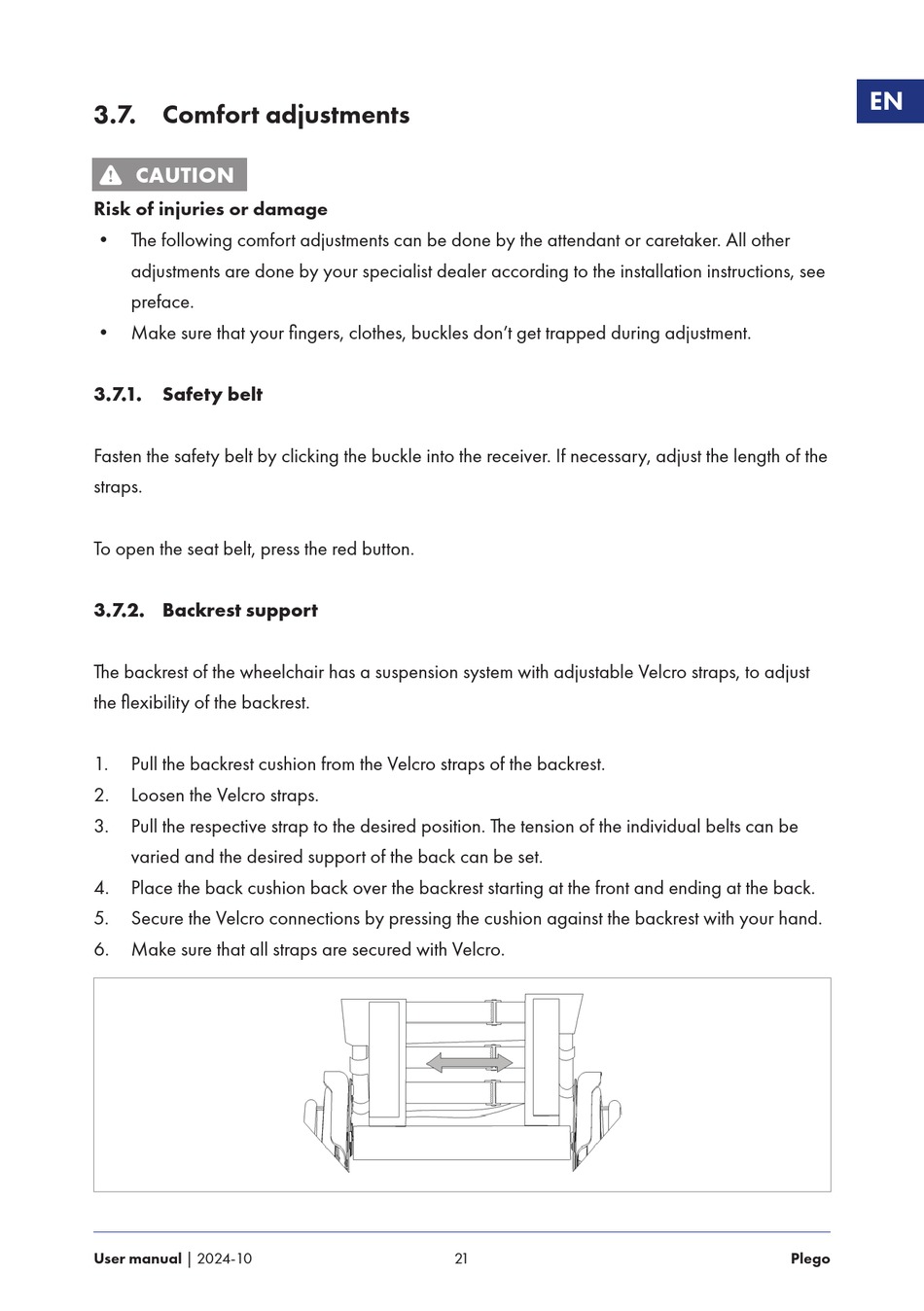

3.7. Comfort adjustments
CAUTION
6
Risk of injuries or damage
• The following comfort adjustments can be done by the attendant or caretaker. All other
adjustments are done by your specialist dealer according to the installation instructions, see
preface.
• Make sure that your fingers, clothes, buckles don't get trapped during adjustment.
3.7.1. Safety belt
Fasten the safety belt by clicking the buckle into the receiver. If necessary, adjust the length of the
straps.
To open the seat belt, press the red button.
3.7.2. Backrest support
The backrest of the wheelchair has a suspension system with adjustable Velcro straps, to adjust
the flexibility of the backrest.
1. Pull the backrest cushion from the Velcro straps of the backrest.
2. Loosen the Velcro straps.
3. Pull the respective strap to the desired position. The tension of the individual belts can be
varied and the desired support of the back can be set.
4. Place the back cushion back over the backrest starting at the front and ending at the back.
5. Secure the Velcro connections by pressing the cushion against the backrest with your hand.
6. Make sure that all straps are secured with Velcro.
