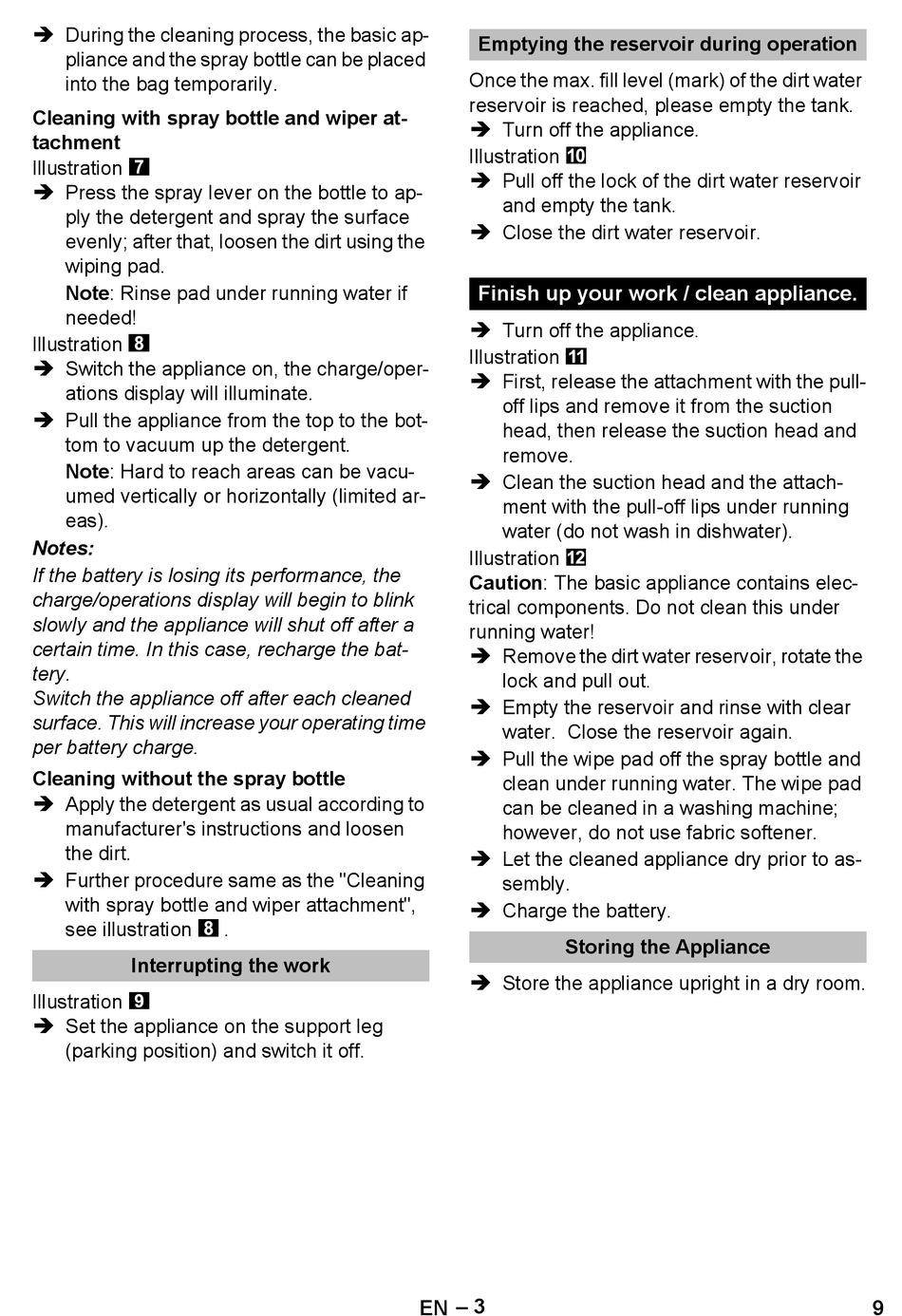

Kärcher WV 60 plus Originalbetriebsanleitung Seite 9


During the cleaning process, the basic ap-
pliance and the spray bottle can be placed
into the bag temporarily.
Cleaning with spray bottle and wiper at-
tachment
Illustration

Press the spray lever on the bottle to ap-
ply the detergent and spray the surface
evenly; after that, loosen the dirt using the
wiping pad.
Note: Rinse pad under running water if
needed!
Illustration

Switch the appliance on, the charge/oper-
ations display will illuminate.

Pull the appliance from the top to the bot-
tom to vacuum up the detergent.
Note: Hard to reach areas can be vacu-
umed vertically or horizontally (limited ar-
eas).
Notes:
If the battery is losing its performance, the
charge/operations display will begin to blink
slowly and the appliance will shut off after a
certain time. In this case, recharge the bat-
tery.
Switch the appliance off after each cleaned
surface. This will increase your operating time
per battery charge.
Cleaning without the spray bottle

Apply the detergent as usual according to
manufacturer's instructions and loosen
the dirt.

Further procedure same as the "Cleaning
with spray bottle and wiper attachment",
see illustration
Interrupting the work
Illustration

Set the appliance on the support leg
(parking position) and switch it off.
.
Emptying the reservoir during operation
Once the max. fill level (mark) of the dirt water
reservoir is reached, please empty the tank.

Turn off the appliance.
Illustration

Pull off the lock of the dirt water reservoir
and empty the tank.

Close the dirt water reservoir.
Finish up your work / clean appliance.

Turn off the appliance.
Illustration

First, release the attachment with the pull-
off lips and remove it from the suction
head, then release the suction head and
remove.

Clean the suction head and the attach-
ment with the pull-off lips under running
water (do not wash in dishwater).
Illustration
Caution: The basic appliance contains elec-
trical components. Do not clean this under
running water!

Remove the dirt water reservoir, rotate the
lock and pull out.

Empty the reservoir and rinse with clear
water. Close the reservoir again.

Pull the wipe pad off the spray bottle and
clean under running water. The wipe pad
can be cleaned in a washing machine;
however, do not use fabric softener.

Let the cleaned appliance dry prior to as-
sembly.

Charge the battery.
Storing the Appliance

Store the appliance upright in a dry room.
– 3
EN 9
