RECIRCULATION VERSION AIR OUTLET

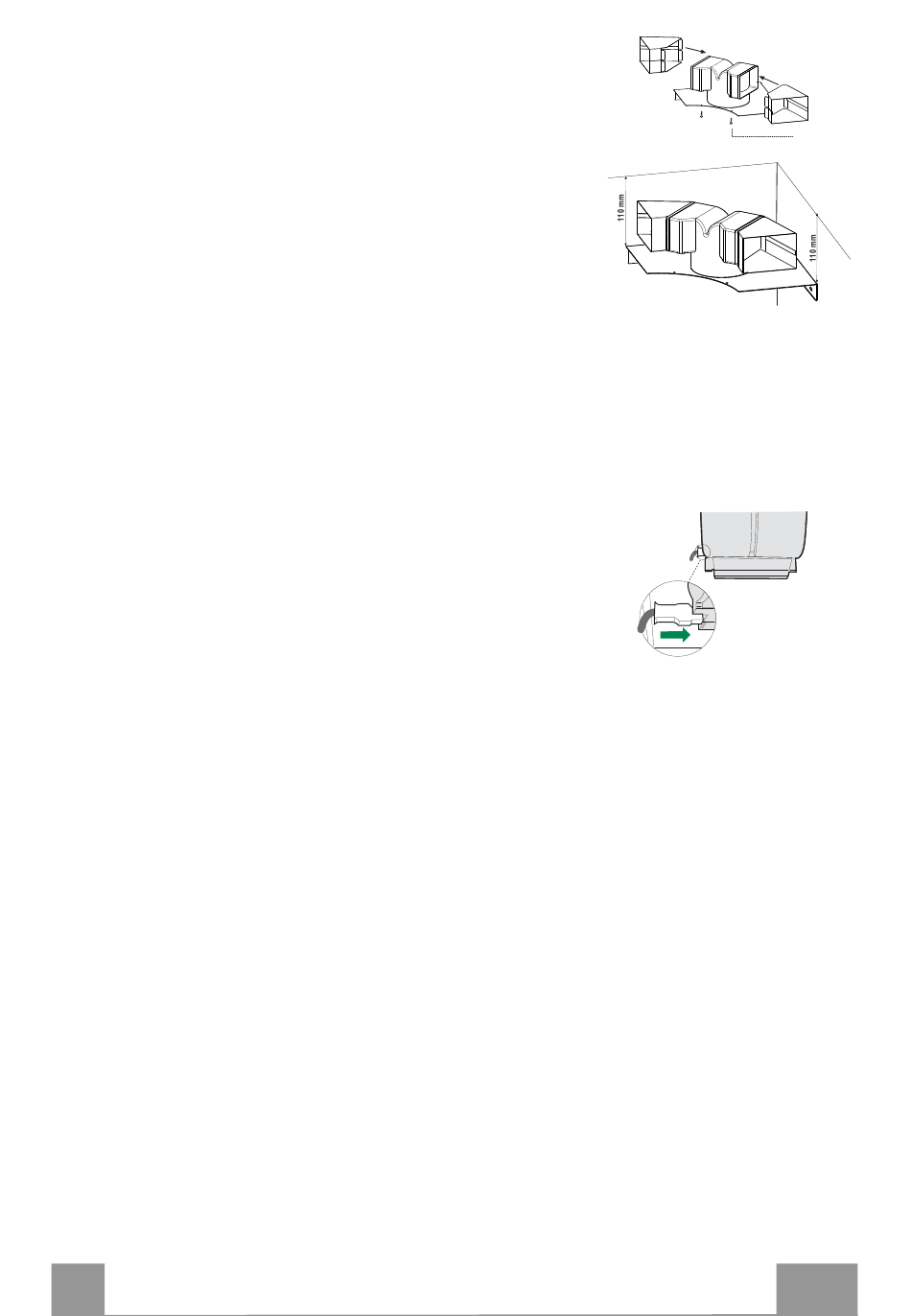

• Insert the extension pieces 14.1 laterally on the air outlet con-
nection piece 15.
• Fix the connection piece with the extension pieces onto the
support 7.3 using the two screws 12e (2,9 x 9,5) provided.
• Place the assembled unit on the wall corner at 110 mm from
the ceiling or upper limit.
• Mark the centre of the bracket holes.
• Drill the marks ø 8 mm.
• Insert wall plugs 11 into the holes.
• Fix the connection piece using the screws 12a (4,2 x 44,4) pro-
vided.
• Make sure that the charcoal filter has been mounted inside the
hood.
ELECTRICAL CONNECTION
• Connect the hood to the mains through a two-pole switch hav-
ing a contact gap of at least 3 mm.
• Remove the grease filters (see paragraph Maintenance) being
sure that the connector of the feeding cable is correctly inserted
in the socket placed on the side of the fan.
