Geberit CONNECT Kurzanleitung Seite 8

EN

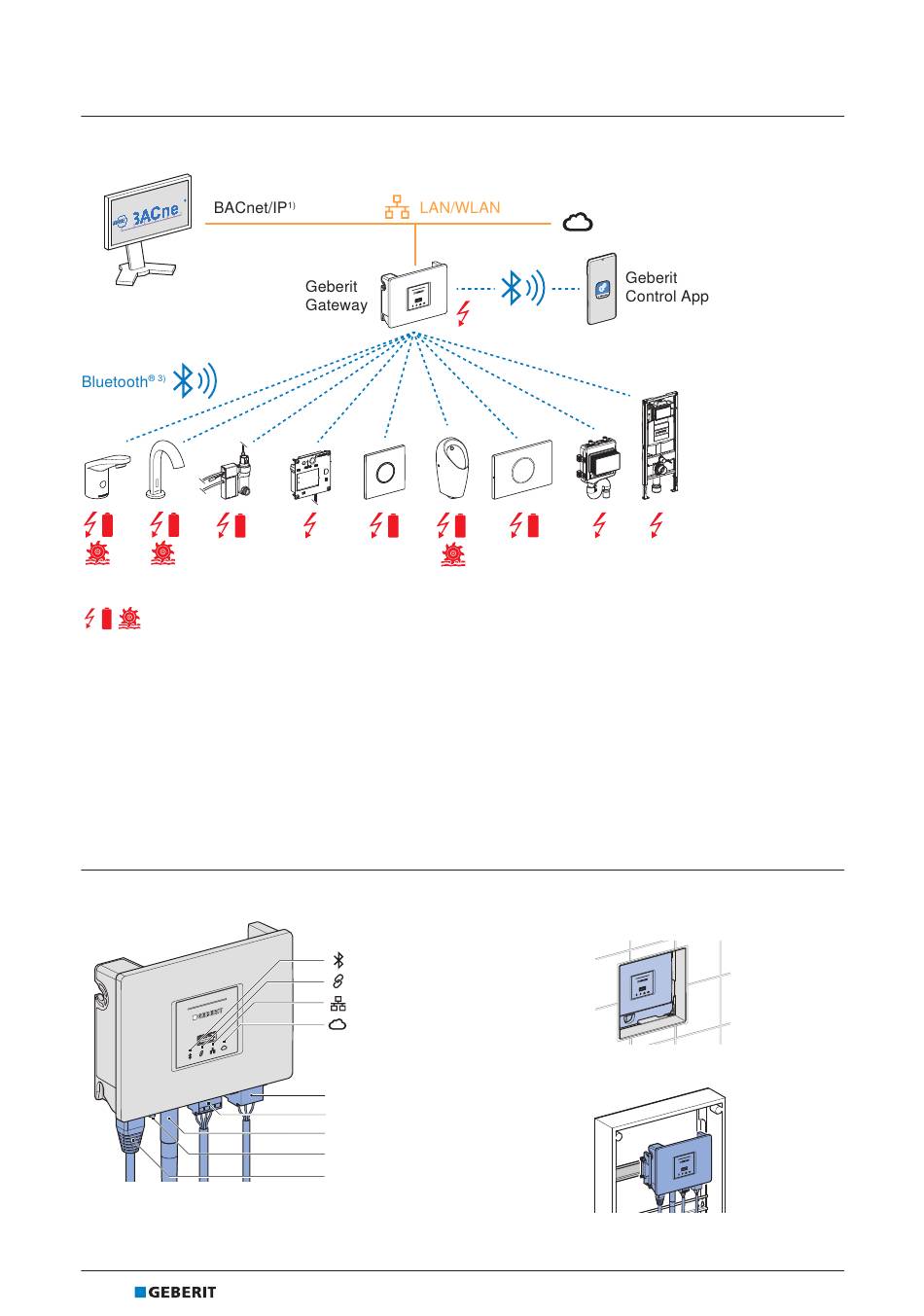

Connection of the end devices via Bluetooth®
→ See chapters 4.6.1 and 5 in the Geberit Connect system manual.
Building
automation system
Power supply with mains voltage 230 V AC, battery or generator
1) BACnet is the network protocol supported by Geberit Connect for building automation.
BACnet is a trademark of the American Society of Heating, Refrigeration and Air-Conditioning Engineers (ASHRAE).
2) For firmware updates, notifications and service purposes
3) The Bluetooth® brand and its logos are the property of Bluetooth SIG, Inc. and are used under licence by Geberit.
• Max. distance between Geberit Gateway and end device: 10 m (Bluetooth® range)
• Max. 10 end devices
• Power supply with mains, battery or generator, depending on the end device
• Do not install the Geberit Gateway in metal control cabinets or behind metal covers.
Geberit Gateway, connections and mounting
→ See chapter 4.1 in the Geberit Connect system manual.
8
Bluetooth® LED
Geberit Connect LED
LAN/WLAN LED
Geberit Cloud Services LED
Electrical connection (110 – 240 V AC)
Connection for Geberit bus (GEBUS)
Wireless connector for Bluetooth® and WLAN
Pairing button
LAN connection (Ethernet) for
BACnet/IP and Geberit Cloud
services
Internet connection to
Geberit Cloud Services
Mounting in an installation box (concealed)
Mounting in control cabinet
made of plastic
2)
