About this document
This quick guide provides an overview of Geberit Connect. Detailed information on planning,
installation, commissioning and operation can be found in the Geberit Connect system manual.
→ doc.geberit.com/970.746.00.0.pdf

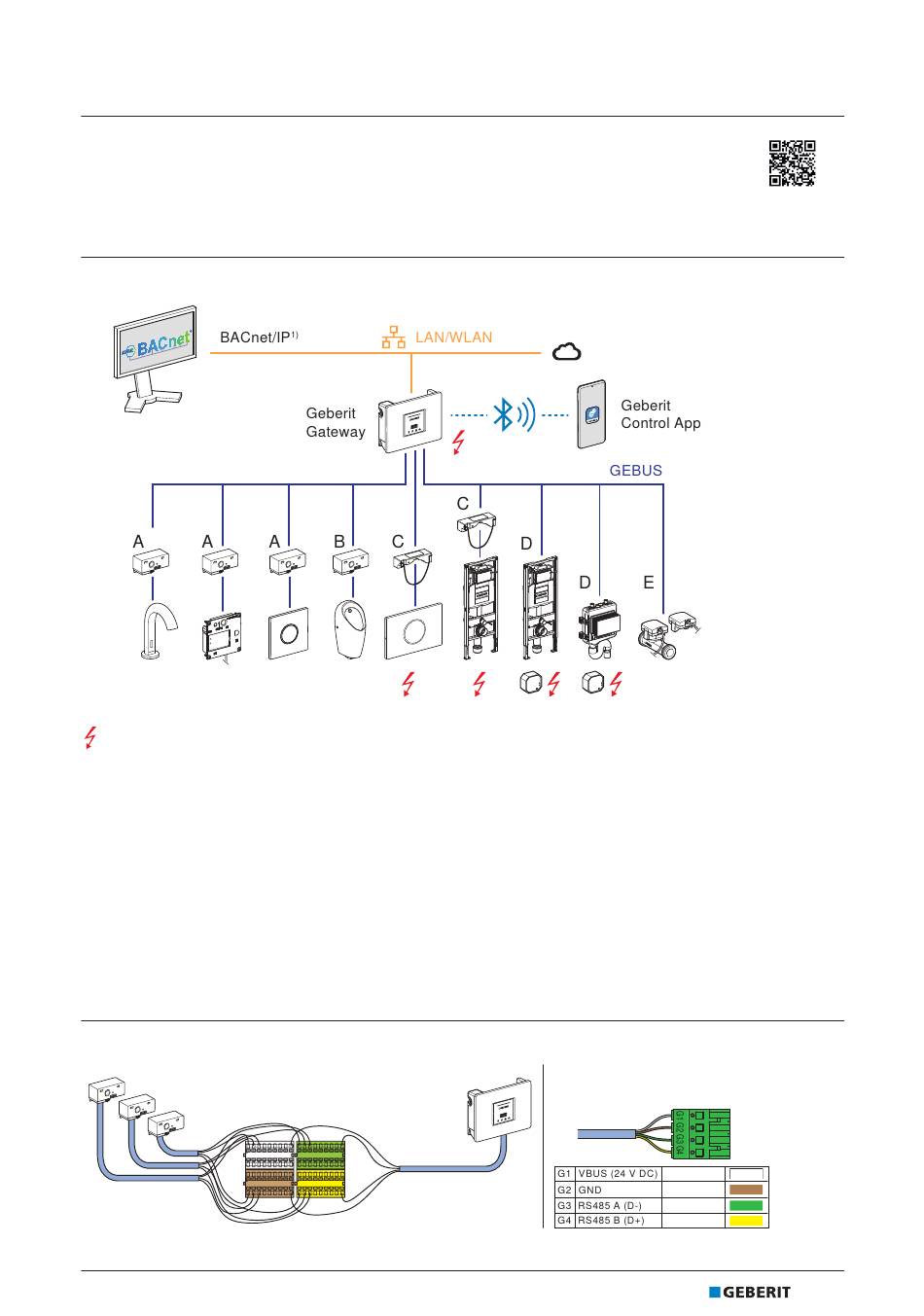

Connection of the end devices via Geberit Bus (GEBUS)
→ See chapters 4.6.1 and 5 in the Geberit Connect system manual.
Building
automation system
Power supply with 230 V AC mains voltage (not via GEBUS cable)
A GEBUS converter for concealed urinal flush controls and washbasin taps, power supply via GEBUS cable
B GEBUS converter for Preda, Selva and Tamina urinals, power supply via GEBUS cable
C GEBUS converter with integrated power supply unit, separate power supply required, battery operation partly possible
D Only communication via GEBUS cable, separate power supply unit required
E Communication and power supply via GEBUS cable
1) BACnet is the network protocol supported by Geberit Connect for building automation.
BACnet is a trademark of the American Society of Heating, Refrigeration and Air-Conditioning Engineers (ASHRAE).
2) For firmware updates, notifications and service purposes
• Max. length of GEBUS cable between Geberit Gateway and the most remote end device: 100 m
• Max. 30 end devices
GEBUS cable, connection of the end devices to the Geberit Gateway
→ See chapters 4.4, 4.5 and 5.2 in the Geberit Connect system manual.
Terminal block in installation box
or in the control cabinet
GEBUS cable
of the end devices
12889962123 © 11-2023
972.080.00.0(00)
Plug assignment on the
Geberit Gateway
GEBUS cable
to the Geberit Gateway
Internet connection to
2)
Geberit Cloud Services
white
brown
green
yellow
