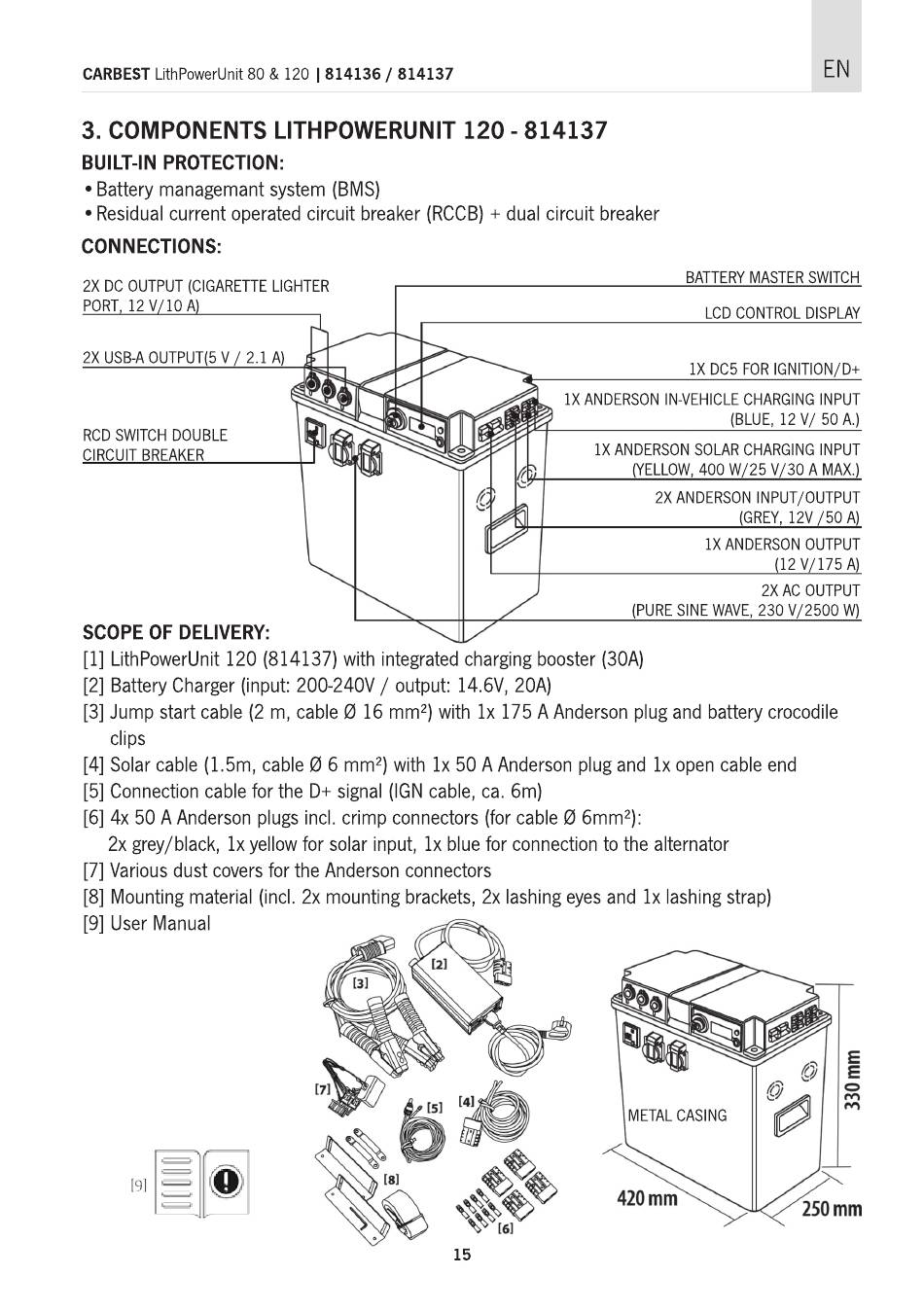

3. COMPONENTS
BUILT-IN PROTECTION:
• Battery managemant system (BMS)
• Residual current operated circuit breaker (RCCB)+ dual circuit breaker
CONNECTIONS:
2X DC OUTPUT (CIGARETTE LIGHTER
PORT 12 V IOA
2X USB-A OUTPUT 5 V 2.1 A
RCD SWITCH DOUBLE
SCOPE OF DELIVERY:
[1] LithPowerUnit 120 (814137) with integrated charging booster (30A)
[2] Battery Charger (input: 20C240V / output: 14.6V, 20A)
[3] Jump start cable (2 m, cable Ø 16 mrn2) with lx 175 A Anderson plug and battery crocodile
clips
[4] Solar cable (1.5m, cable Ø 6 mm2) with lx 50 A Anderson plug and lx open cable end
[5] Connection cable for the D+ signal (IGN cable, ca. 6m)
[6] 4x 50 A Anderson plugs incl. crimp connectors (for cable Ø 6mm2):
2x grey/black, lx yellow for solar input, lx blue for connection to the alternator
[7] Various dust covers for the Anderson connectors
[8] Mounting material (incl. 2x mounting brackets, 2x lashing eyes and lx lashing strap)
[9] User Manual
[91
/ 814137
LITHPOWERUNIT
(21
(31
[71
[51
120 - 814137
ANDERSON
IX ANDERSON
420 mm
15
BATTERY MASTER SWITCH
LCD CONTROL DISPLAY
IX DC5 FOR IGNITION/D
IN-VEHICLE CHARGING INPUT
(BLUE, 12 V/ 50 A)
SOLAR CHARGING INPUT
ELLOW 400 W 25 V 30 A MAX
2X ANDERSON INPUT/OUTPUT
GREY 12V
IX ANDERSON
12V
2X AC OUTPUT
PURE SINE WAVE 230 V 2500 W
O
METAL CASING
250 mm
EN
50 A
OUTPUT
175 A
E
E
